Configuration Backup¶

The backup configuration process requires the Nautobot worker to connect via Nornir to the device, and run the show run or equivalent command, and save the configuration. The high-level process to run backups is:

Download the latest version of each of the Git repositories configured with the backup configs capability within Nautobot.
Run a Nornir play to obtain the cli configurations.
Optionally perform some lightweight processing of the backup.
Store each device's backup configuration file on the local filesystem.
Commit all files added or changed in each repository.
Push configuration files to the remote Git repositories.

Configuration Backup Settings¶

Backup configurations often need some amount of parsing to stay sane. The two obvious use cases are firstly the ability to remove lines such as the "Last Configuration" changed date, as this will cause unnecessary changes and secondly stripping out secrets from the configuration. In an effort to support these use cases, the following settings are available and further documented below.

Config Removals - provides the ability to remove a line based on a regex match.
Config Replacements - provides the ability to swap out parts of a line based on a regex match.

Backup Repositories¶

In the Backup Repository field of the Settings, configure the repository which you intend to use for backed-up device configurations as part of Golden Config.

Backup repositories must first be configured under Extensibility -> Git Repositories. When you configure a repository, look for the Provides field in the UI. To serve as a configuration backup store, the repository must be configured with the backup configs capability under the Provides field. For further details, refer to Navigating Nautobot Git Settings.

Backup Path Template¶

The backup_path_template setting gives you a way to dynamically place each device's configuration file in the repository file structure. This setting uses the GraphQL query configured for the plugin. It works in a similar way to the Backup Repository Matching Rule above. Since the setting uses a GraphQL query, any valid Device model method is available. The plugin renders the values from the query, using Jinja2, to the relative path and file name in which to store a given device's configuration inside its backup repository. This may seem complicated, but the equivalent of obj by example would be:

obj = Device.objects.get(name="nyc-rt01")

An example would be:

backup_path_template = "{{obj.site.slug}}/{{obj.name}}.cfg"

With a Sydney, AU device SYD001AURTR32, in the site named Sydney001 and the GraphQL query and backup_path_template configured above, our backed-up config would be placed in the repo in /sydney001/SYD001AURTR32.cfg. The site value sydney001 here is lower case because our template refers to the slug value, which by default will be lower case.

The backup process will automatically create folders as required based on the path definition.

The backup_path_template can be set in the UI. For navigation details see.

The credentials/secrets management occurs within the nautobot-plugin-nornir library and is described in the Navigating Credentials documentation. For the simplest use case you can set environment variables for NAPALM_USERNAME, NAPALM_PASSWORD, and DEVICE_SECRET in conjunction with the credentials string shown below in your configuration for nautobot-plugin-nornir.

PLUGINS_CONFIG = {
    "nautobot_plugin_nornir": {
        "nornir_settings": {
           "credentials": "nautobot_plugin_nornir.plugins.credentials.env_vars.CredentialsEnvVars"
        },
    }
}

Starting a Backup Job¶

To start a backup job manually:

Navigate to the Plugin Home (Golden Config->Home), with Home being in the Golden Configuration section
Select Execute on the upper right buttons, then Backup
Fill in the data that you wish to have backed up
Select Run Job

Config Removals¶

The line removals settings is a series of regex patterns to identify lines that should be removed. This is helpful as there are usually parts of the configurations that will change each time. A match simply means to remove.

In order to specify line removals. Navigate to Golden Config -> Config Removals. Click the Add button and fill out the details.

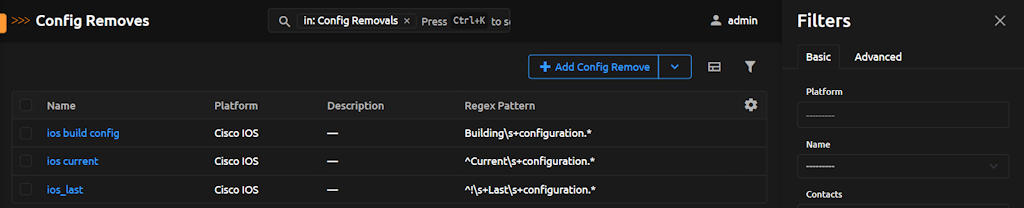

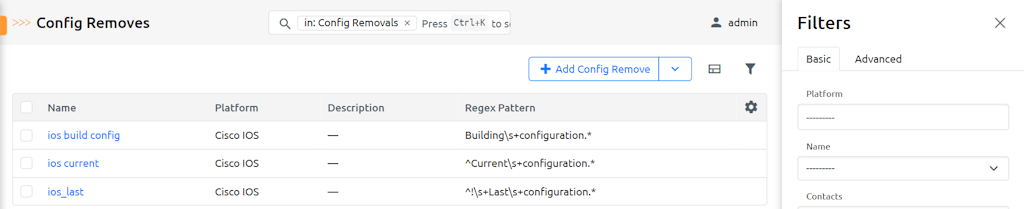

The remove setting is based on Platform. An example is shown below. Config Removals View

Config Replacements¶

This is a replacement config with a regex pattern with a single capture groups to replace. This is helpful to strip out secrets.

The replace lines setting is based on Platform. An example is shown below.

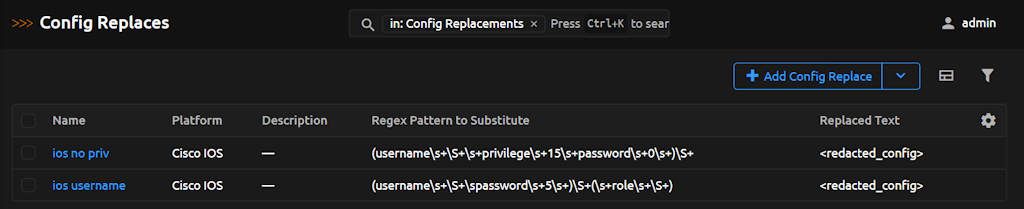

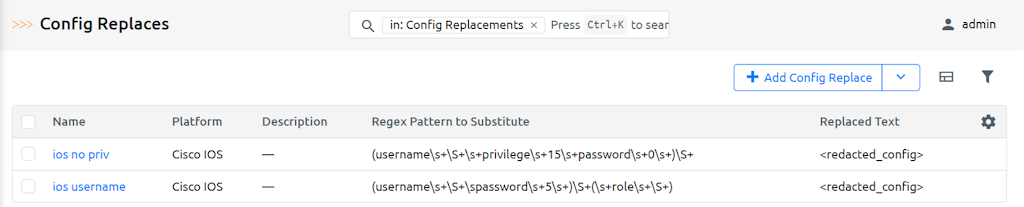

Config Replacements View

The line replace uses Python's re.sub method. As shown, a common pattern is to obtain the non-confidential data in a capture group e.g. (), and return the rest of the string returned in the backreference, e.g. \2.

re.sub(r"(username\s+\S+\spassword\s+5\s+)\S+(\s+role\s+\S+)", r"\1<redacted_config>\2", config, flags=re.MULTILINE))
