External Interactions

This document describes external dependencies and prerequisites for this App to operate, including system requirements, API endpoints, interconnection or integrations to other applications or services, and similar topics.

There are various integrations that you may want to incorporate into the Device Lifecycle plug-in. This page will rpvide references to officially supported external integrations. This is not meant to limit what is supported, but rather is meant as a place to go for integration needs for external systems (such as NIST for example...).

External System Integrations

From the App to Other Systems

From Other Systems to the App

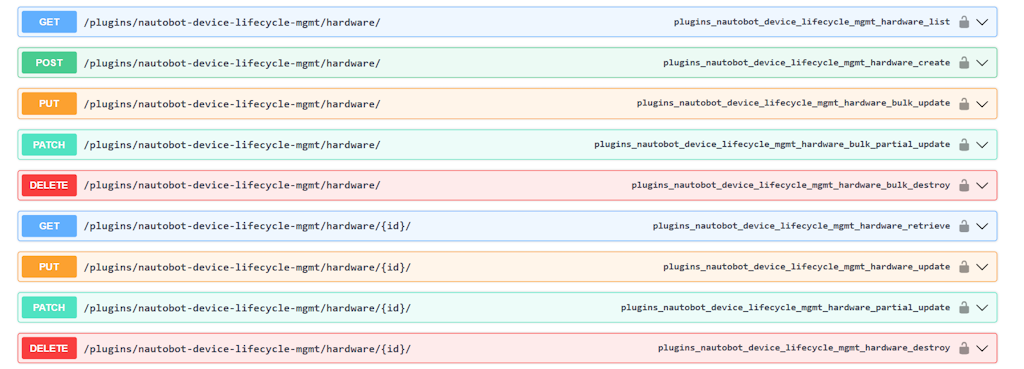

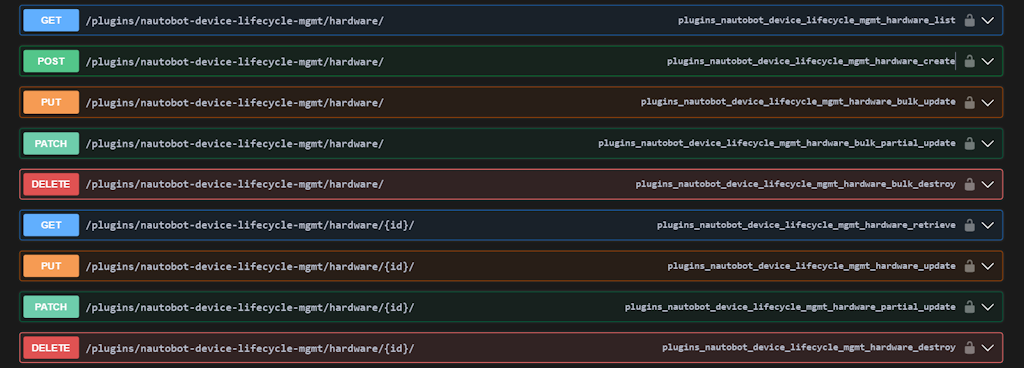

Nautobot REST API endpoints

Hardware Lifecycle Management API Examples

REST API Example 1

Gather hardware notices that will be end of support by the end of 2021

curl "http://$NBHOST/api/plugins/device-lifecycle/hardware/?end_of_support__lte=2021-12-31" \
-X GET \
-H  "accept: application/json" \
-H  "Authorization: Token $TOKEN" | json_pp

REST API Example 2

Gather hardware notices that are currently expired.


The expired flag will honor end_of_support if the field exist for the record. If the field does not exist, end_of_sale will be used as the expired field.

curl "http://$NBHOST/api/plugins/device-lifecycle/hardware/?expired=true" \
-X GET \
-H  "accept: application/json" \
-H  "Authorization: Token $TOKEN" | json_pp

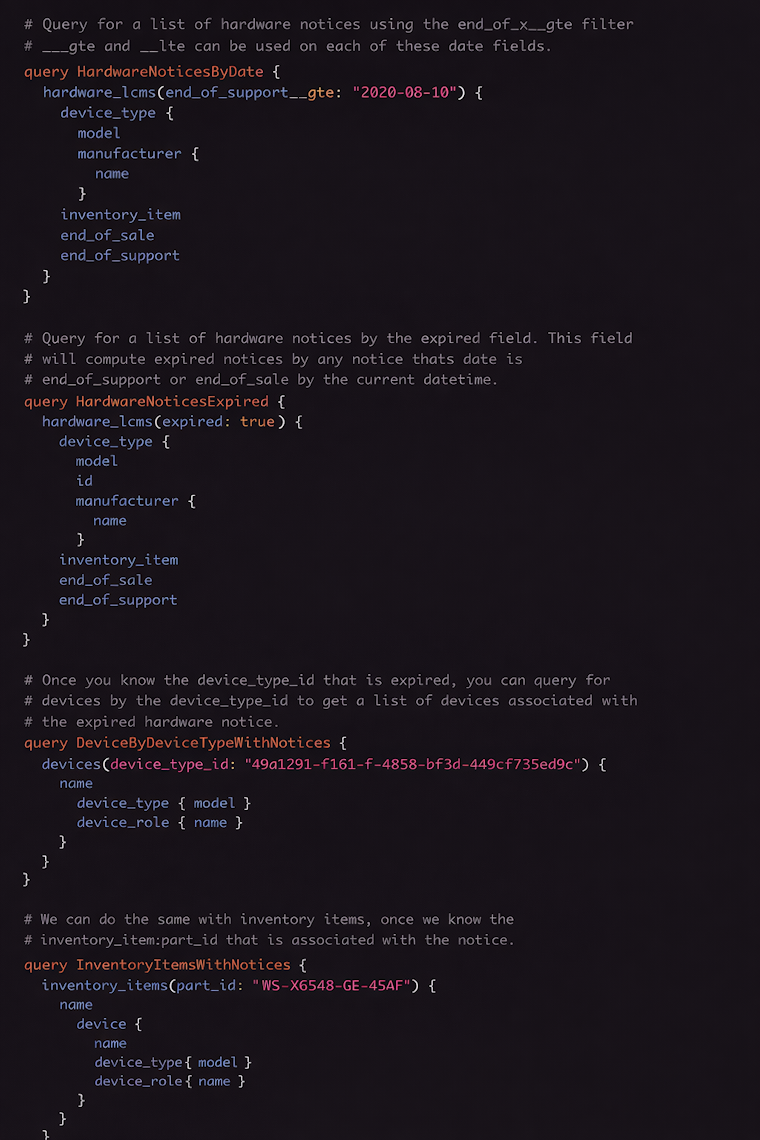

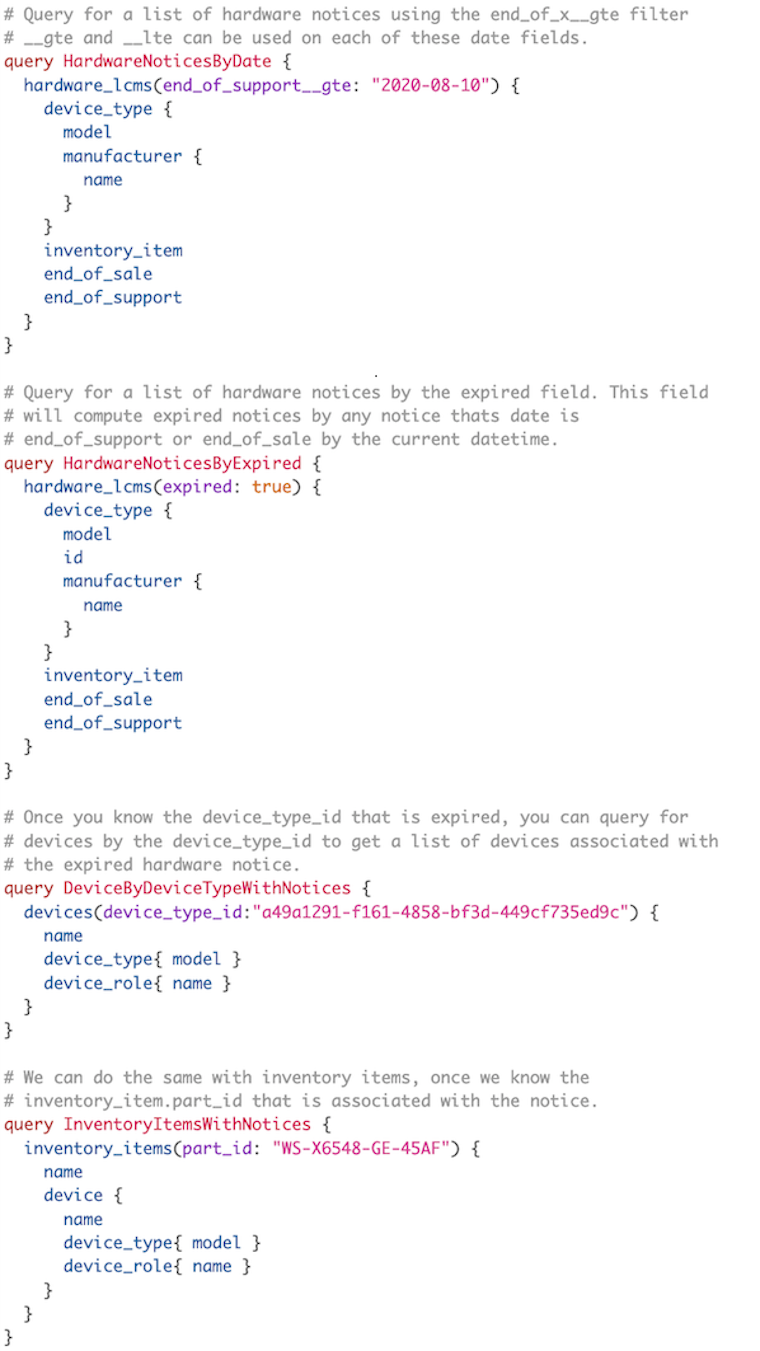

GraphQL Examples
