F5 Advanced Load Balancing Use Case

This use case demonstrates a comprehensive configuration scenario using the Nautobot Load Balancer App for an advanced F5 setup. The example includes multiple pool members, SSL profiles, and detailed health check monitoring.

Scenario Overview

In this advanced configuration scenario, we illustrate:

  • A Virtual Server with multiple Pool Members.
  • Advanced Certificate Profile configurations for secure communications.
  • Detailed health monitoring via HTTP checks.

Step-by-Step Configuration

1. IPAM Configuration

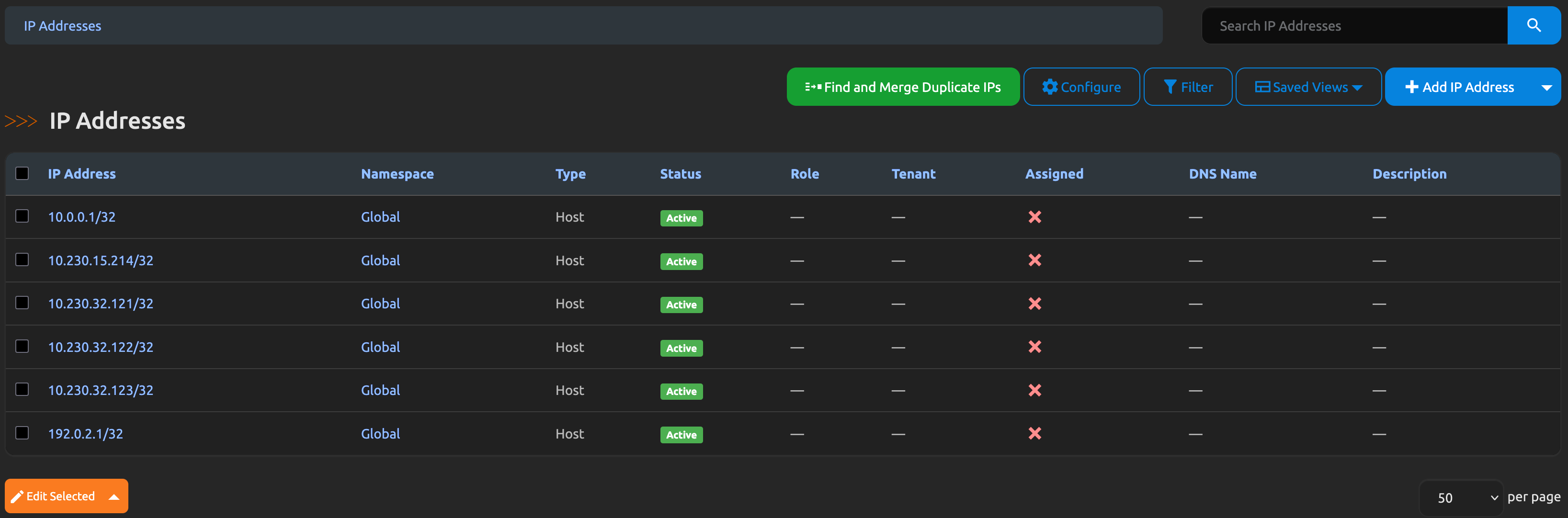

F5 Advanced IPAM Configuration

Ensure these IP Addresses are available in Nautobot's IPAM:

  • Virtual IP (VIP): 10.230.15.214
  • Pool Member IPs: 10.230.32.121, 10.230.32.122, 10.230.32.123

2. Health Check Configuration

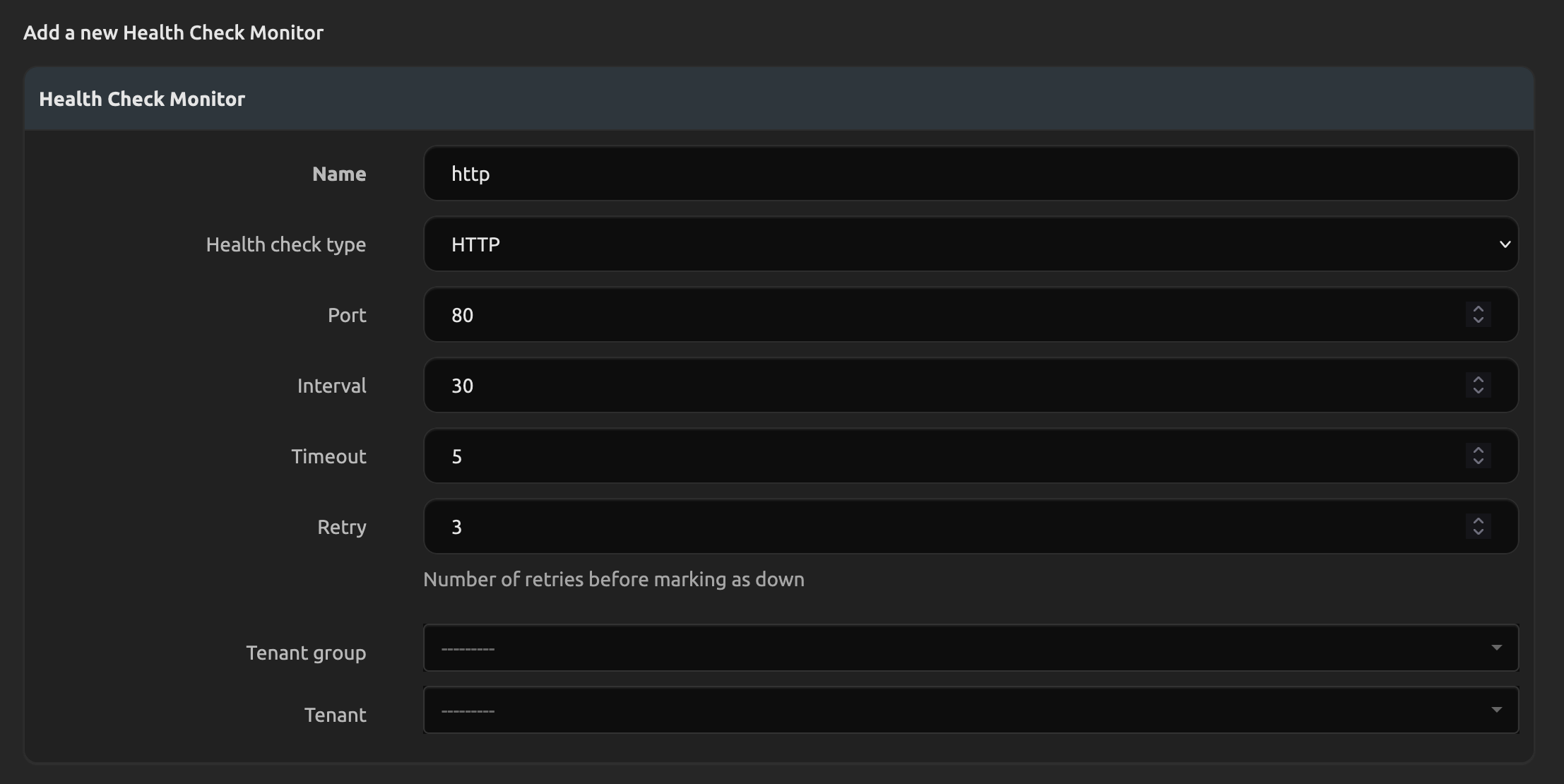

F5 Advanced Health Check

Before configuring your pools, set up your health checks:

  • Navigate to Load Balancer > Health Check Monitors.
  • Click Add Health Check Monitor.
    • Name: http
    • Health check type: HTTP
    • Port: 80
    • Interval: 30
    • Timeout: 5
    • Retry attempts: 3

3. Certificate Profile Configuration

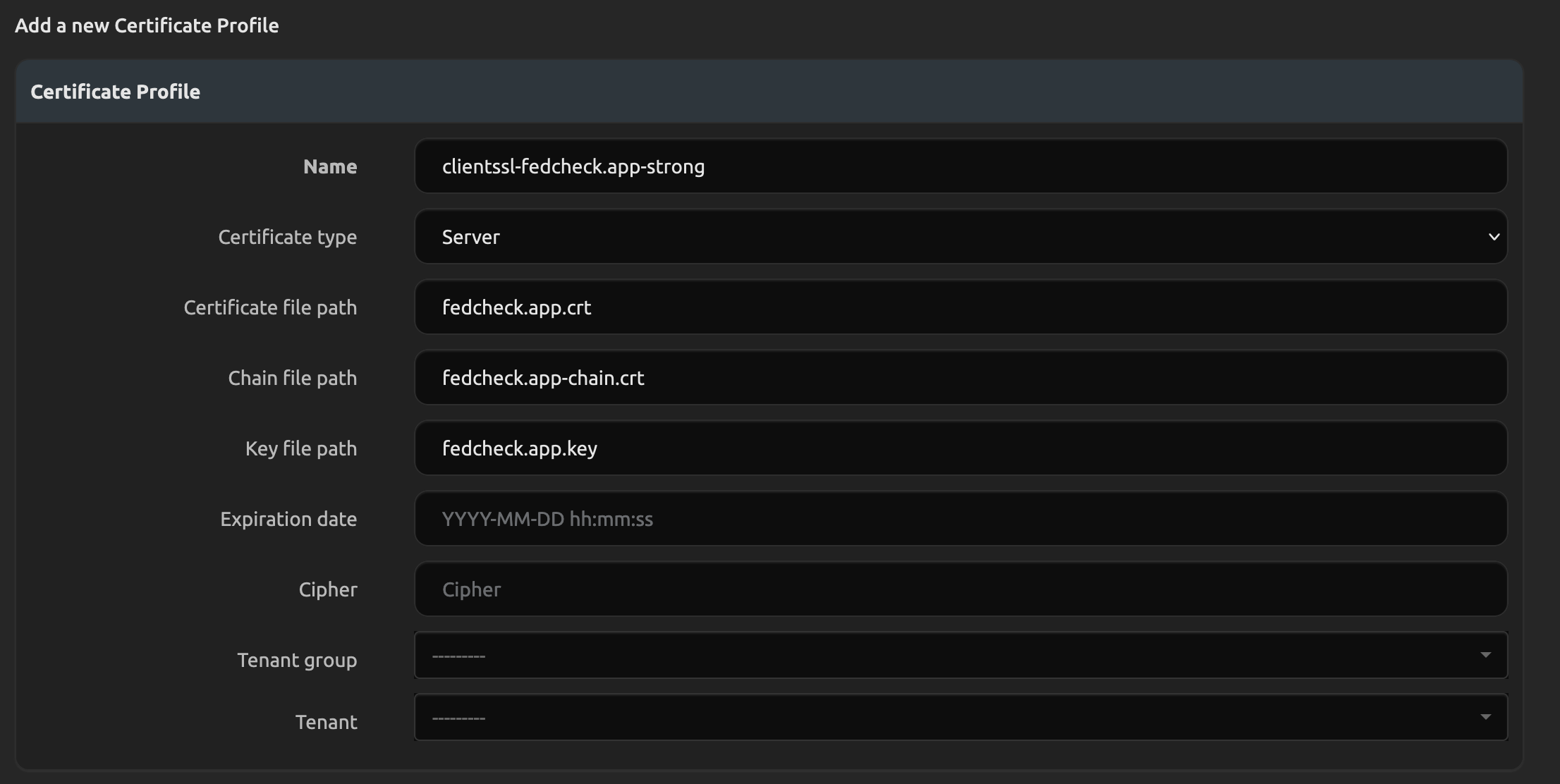

F5 Advanced Certificate Profile

Define Certificate Profiles:

  • Navigate to Load Balancer > Certificate Profiles.
  • Click Add Certificate Profile.
    • Name: clientssl-fedcheck.app-strong
    • Certificate Type: Server
    • Certificate file path: fedcheck.app.crt
    • Chain file path: fedcheck.app-chain.crt
    • Key file path: fedcheck.app.key

4. Configuring Load Balancer Pool

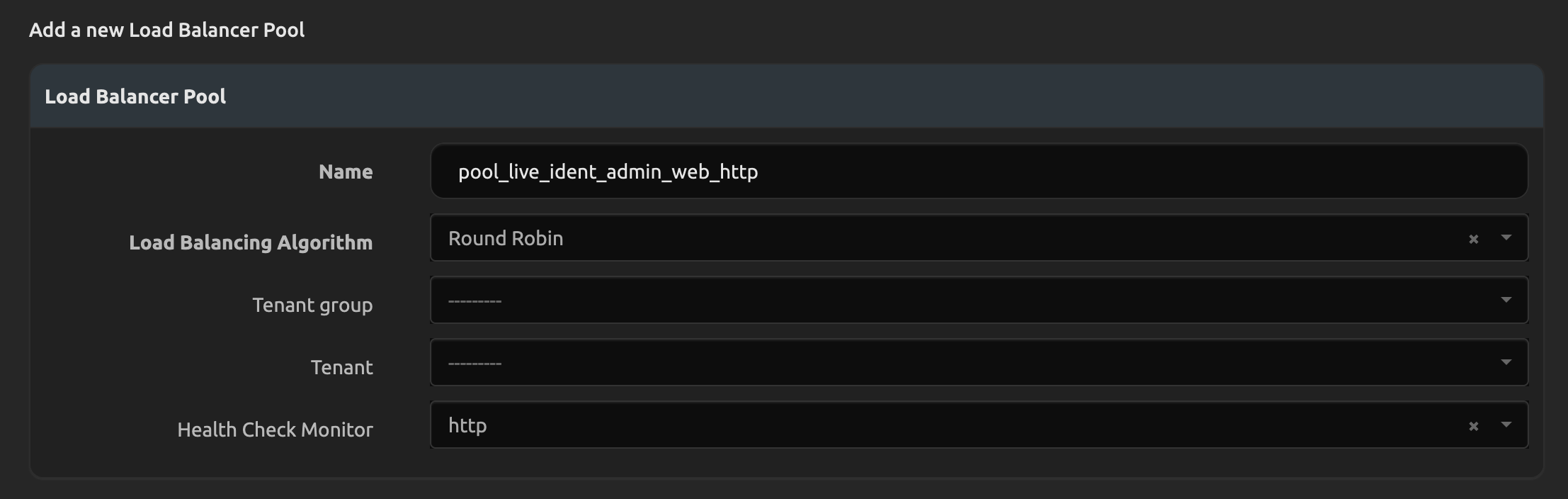

F5 Advanced Pool Config

  • Navigate to Load Balancer > Pools.
  • Click Add Load Balancer Pool.
    • Name: pool_live_ident_admin_web_http
    • Load Balancing Algorithm: Select Round Robin
    • Health Check Monitor: Select http

5. Adding Load Balancer Pool Members

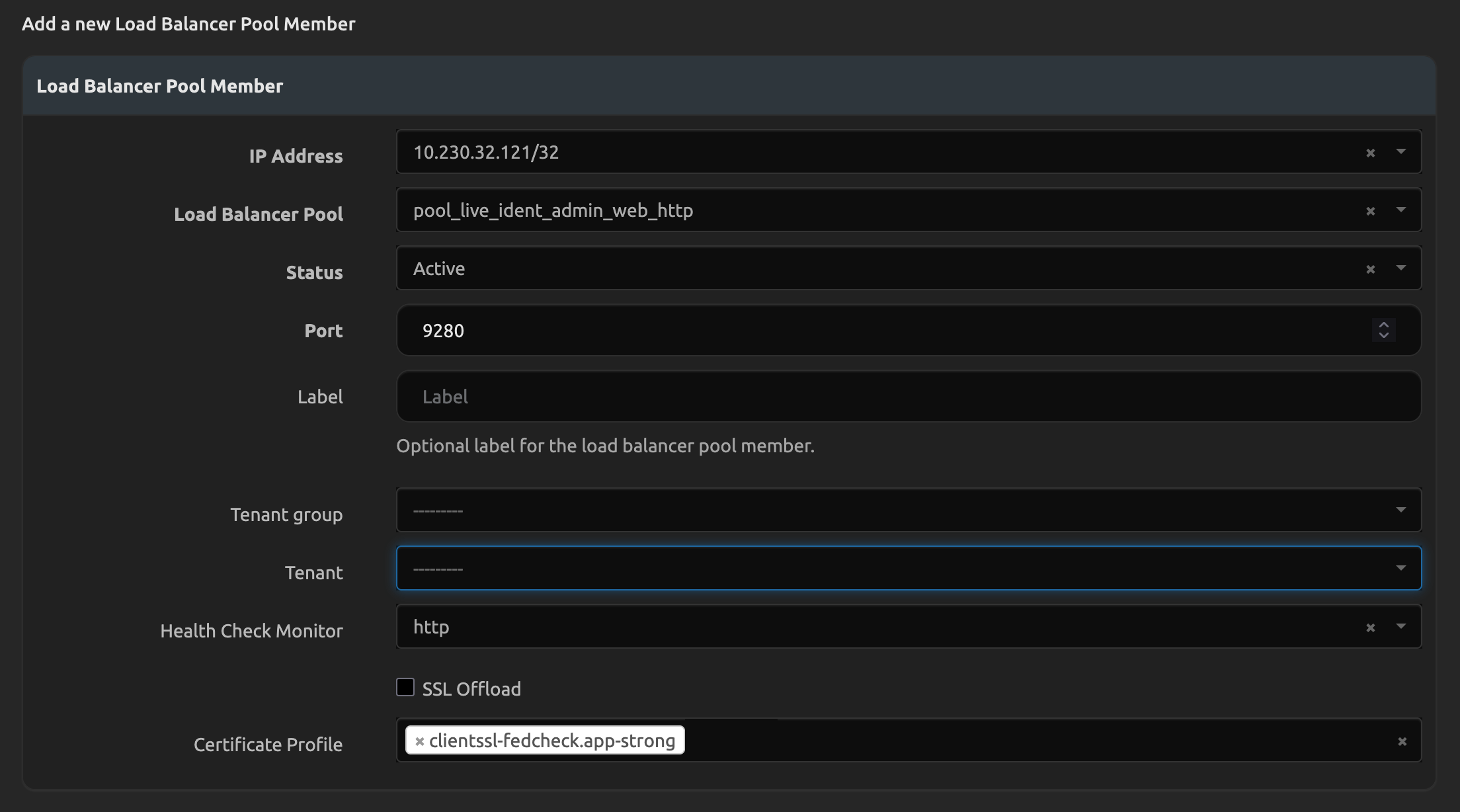

F5 Advanced Pool Members

  • Navigate to Load Balancer > Pool Members.
  • Add each pool member individually:
    • IP Addresses:
      • 10.230.32.121
      • 10.230.32.122
      • 10.230.32.123
    • Load Balancer Pool: pool_live_ident_admin_web_http
    • Status: Active
    • Port: 9280
    • Health Check Monitor: http
    • Certificate Profile: clientssl-fedcheck.app-strong

6. Creating the Virtual Server

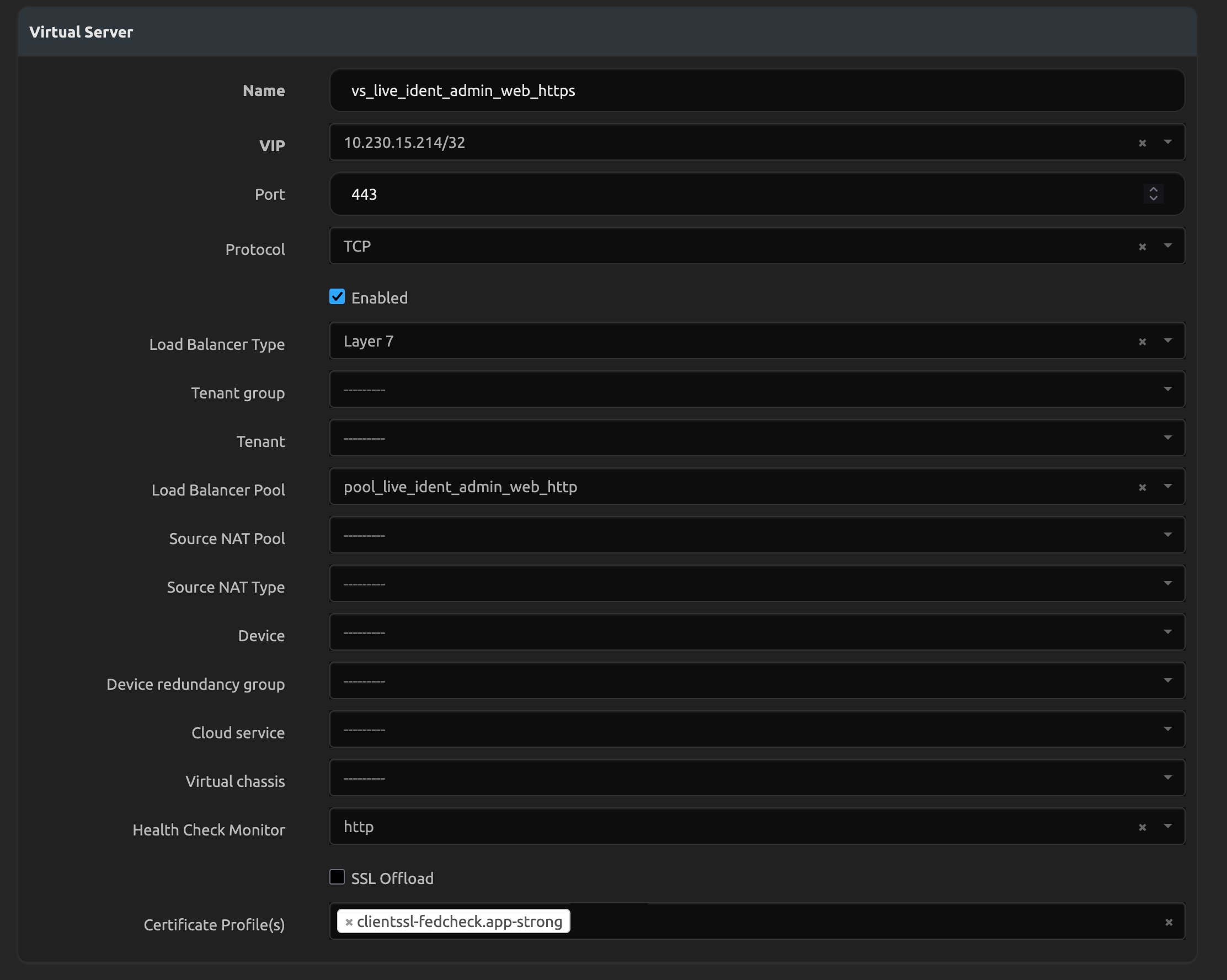

F5 Advanced Virtual Server

  • Navigate to Load Balancer > Virtual Servers.
  • Click Add Virtual Server.
    • Name: vs_live_ident_admin_web_https
    • IP Address (VIP): 10.230.15.214
    • Protocol: TCP
    • Load Balancer Type: Layer 7
    • Port: 443
    • Load Balancer Pool: pool_live_ident_admin_web_http
    • Health Check Monitor: http
    • Certificate Profile: clientssl-fedcheck.app-strong

7. Validation and Configuration Snippet

{
  virtual_servers(name: "vs_live_ident_admin_web_https") {
    name
    port
    protocol
    vip {
      address
    }
    certificate_profiles {
      name
      certificate_file_path
      key_file_path
      cipher
    }
    load_balancer_pool {
      name
      health_check_monitor {
        name
        health_check_type
        port
        interval
        timeout
        retry
      }
      load_balancer_pool_members {
        port
        ip_address {
          address
        }
      }
    }
  }
}

F5 Advanced GraphQL Response

{
  "data": {
    "virtual_servers": [
      {
        "name": "vs_live_ident_admin_web_https",
        "port": 443,
        "protocol": "TCP",
        "vip": {
          "address": "10.230.15.214/32"
        },
        "health_check_monitor": {
          "name": "http",
          "health_check_type": "HTTP",
          "port": 80,
          "interval": 30,
          "timeout": 5,
          "retry": 3
        },
        "certificate_profiles": [
          {
            "name": "clientssl-fedcheck.app-strong",
            "certificate_file_path": "fedcheck.app.crt",
            "key_file_path": "fedcheck.app.key",
            "cipher": ""
          }
        ],
        "load_balancer_pool": {
          "name": "pool_live_ident_admin_web_http",
          "health_check_monitor": {
            "name": "http",
            "health_check_type": "HTTP",
            "port": 80,
            "interval": 30,
            "timeout": 5,
            "retry": 3
          },
          "load_balancer_pool_members": [
            {
              "port": 9280,
              "ip_address": {
                "address": "10.230.32.121/32"
              }
            },
            {
              "port": 9280,
              "ip_address": {
                "address": "10.230.32.122/32"
              }
            },
            {
              "port": 9280,
              "ip_address": {
                "address": "10.230.32.123/32"
              }
            }
          ]
        }
      }
    ]
  }
}

F5 Advanced Jinja2 Template

{% for virtual_server in data.virtual_servers %}

ltm virtual-address /Common/{{ virtual_server.vip.address.split('/')[0] }} {
    address {{ virtual_server.vip.address.split('/')[0] }}
    arp enabled
    mask 255.255.255.255
    route-advertisement selective
}

ltm profile client-ssl /Common/{{ virtual_server.certificate_profiles[0].name }} {
    app-service none
    cert-key-chain {
        default {
            cert {{ virtual_server.certificate_profiles[0].certificate_file_path }}
            key {{ virtual_server.certificate_profiles[0].key_file_path }}
        }
    }
    ciphers {{ virtual_server.certificate_profiles[0].cipher or "DEFAULT" }}
    defaults-from /Common/clientssl
}

ltm virtual /Common/{{ virtual_server.name }} {
    destination /Common/{{ virtual_server.vip.address.split('/')[0] }}:{{ virtual_server.port }}
    ip-protocol {{ virtual_server.protocol | lower }}
    mask 255.255.255.255
    pool /Common/{{ virtual_server.load_balancer_pool.name }}
    profiles {
        /Common/{{ virtual_server.certificate_profiles[0].name }} { context clientside }
        /Common/http { }
        /Common/tcp { }
    }
    source 0.0.0.0/0
    source-address-translation { type automap }
    translate-address enabled
    translate-port enabled
    vlans-enabled
}

ltm pool /Common/{{ virtual_server.load_balancer_pool.name }} {
    members {
    {% for member in virtual_server.load_balancer_pool.load_balancer_pool_members %}
        /Common/{{ member.ip_address.address.split('/')[0] }}:{{ member.port }} {
            address {{ member.ip_address.address.split('/')[0] }}
        }
    {% endfor %}
    }
    monitor /Common/{{ virtual_server.load_balancer_pool.health_check_monitor.name }}
}

{% for member in virtual_server.load_balancer_pool.load_balancer_pool_members %}
ltm node /Common/{{ member.ip_address.address.split('/')[0] }} {
    address {{ member.ip_address.address.split('/')[0] }}
}
{% endfor %}

{% endfor %}

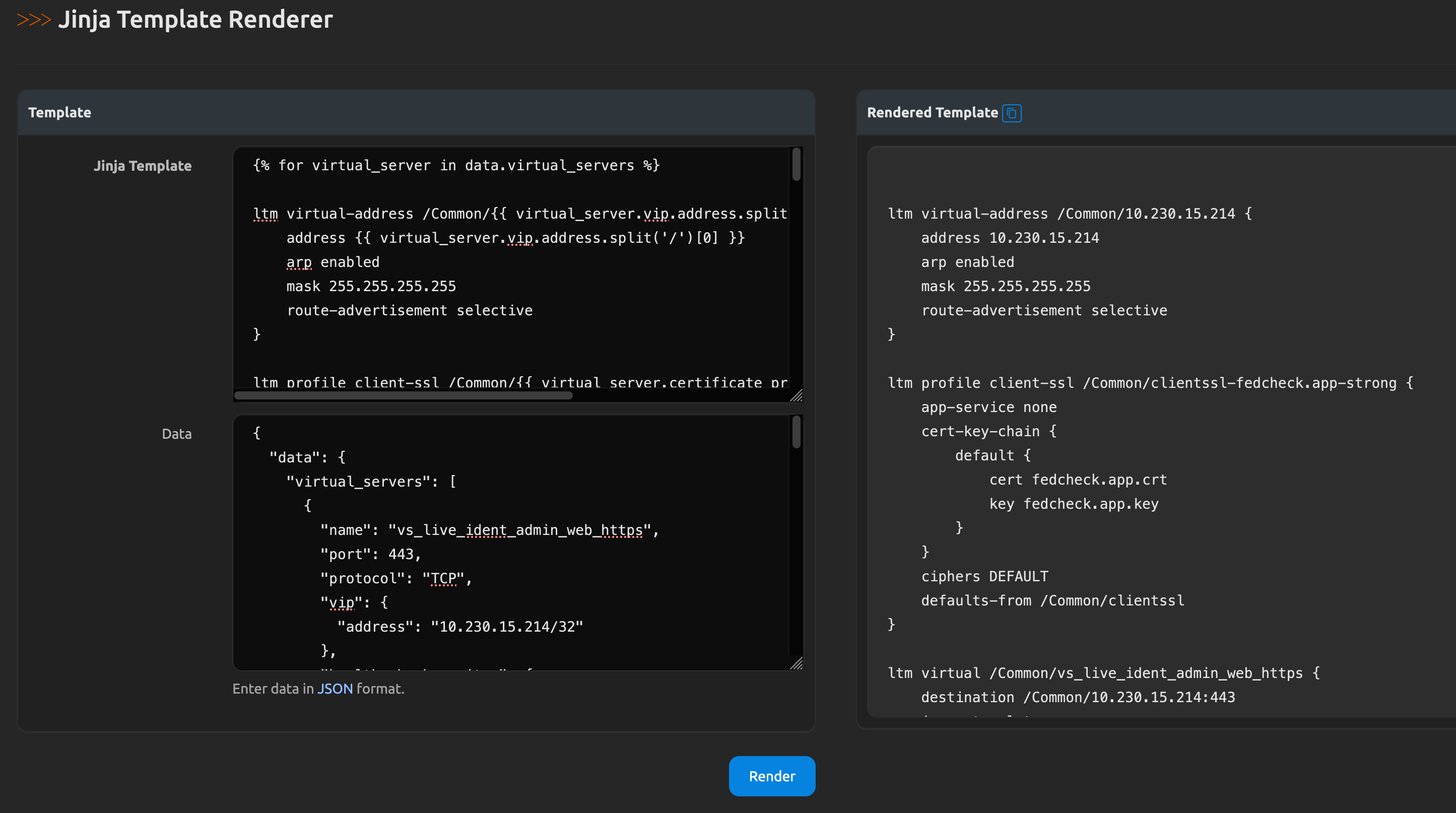

Sample output from the template

You can use the Jinja Renderer at the bottom of Nautobot with your JSON output and the sample Jinja2 template:

ltm virtual-address /Common/10.230.15.214 {
    address 10.230.15.214
    arp enabled
    mask 255.255.255.255
    route-advertisement selective
}

ltm profile client-ssl /Common/clientssl-fedcheck.app-strong {
    app-service none
    cert-key-chain {
        default {
            cert fedcheck.app.crt
            key fedcheck.app.key
        }
    }
    ciphers DEFAULT
    defaults-from /Common/clientssl
}

ltm virtual /Common/vs_live_ident_admin_web_https {
    destination /Common/10.230.15.214:443
    ip-protocol tcp
    mask 255.255.255.255
    pool /Common/pool_live_ident_admin_web_http
    profiles {
        /Common/clientssl-fedcheck.app-strong { context clientside }
        /Common/http { }
        /Common/tcp { }
    }
    source 0.0.0.0/0
    source-address-translation { type automap }
    translate-address enabled
    translate-port enabled
    vlans-enabled
}

ltm pool /Common/pool_live_ident_admin_web_http {
    members {
        /Common/10.230.32.121:9280 {
            address 10.230.32.121
        }
        /Common/10.230.32.122:9280 {
            address 10.230.32.122
        }
        /Common/10.230.32.123:9280 {
            address 10.230.32.123
        }
    }
    monitor /Common/http
}


ltm node /Common/10.230.32.121 {
    address 10.230.32.121
}

ltm node /Common/10.230.32.122 {
    address 10.230.32.122
}

ltm node /Common/10.230.32.123 {
    address 10.230.32.123
}

Representing Vendor-Specific F5 Configuration

This example focuses on core F5 elements that are modeled directly using the Load Balancer data model:

  • Certificate Profiles for SSL termination
  • Health Check Monitors for backend availability
  • Load Balancer Pools and Load Balancer Pool Members
  • Virtual Servers using VIPs and ports
  • Basic SNAT behavior using template logic (automap in the rendered output)

These components are configured directly in Nautobot and shown in the step-by-step configuration and Jinja2 output above.

In real-world F5 deployments, additional platform-specific features are often needed but are not part of the core data model. These include:

  • iRules (e.g., header rewrites, redirects)
  • Persistence profiles (e.g., source-IP, cookie)
  • HTTP or SSL profile references
  • Advanced SNAT configuration
  • Routing or rewrite policies

To capture these, you can define Custom Fields in Nautobot on models like VirtualServer or LoadBalancerPoolMember. Depending on the use case:

  • Use a multi-select Custom Field when users need to choose from a list of known options (e.g., iRule names or profile types).
  • Use a JSON Custom Field to store structured vendor-specific configuration, such as SNAT policies or fallback persistence logic.

Both field types and many more types are defined are defined through Nautobot’s Custom Field system and will appear in the UI, API, and Jinja2 templates. This provides a flexible, vendor-specific extension mechanism without altering the core data model.
