Lifecycle Reporting¶

Lifecycle reporting can be seen by running either of the three jobs below:

Device Software Validation Report
Inventory Item Software Validation Report
Device Hardware Notice Report

You can run these reports two ways:

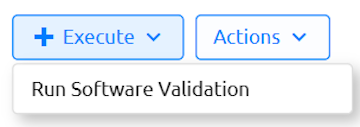

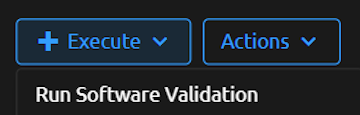

The "Device Lifecycle" dropdown menu and selecting either Device Software Validation - Report, Inventory Item Software Validation - Report or Device Hardware Notice - Report and then clicking on Run Software Validation execute button on right side of screen.

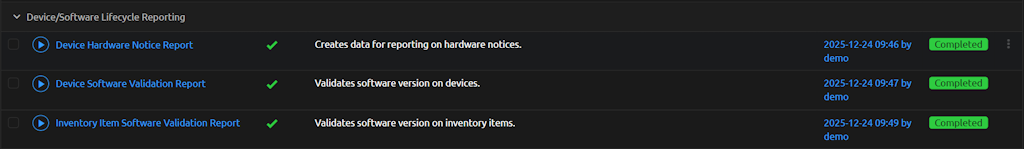

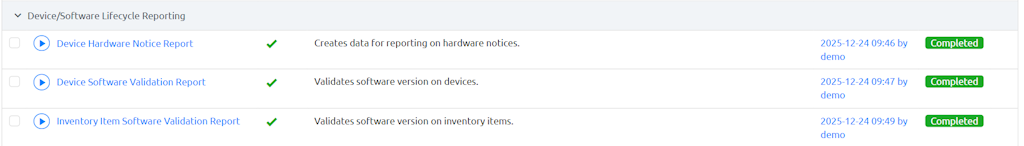

The "Jobs" dropdown and navigating to Device/Sofware Lifecycle Reporting section. The jobs will appear here and all you will need to do is click the play button.

If play button is grayed out.

You will need to enable the job by clicking on edit button in the row and navigate to "Job" portion and click on "Enable"

Device Software Validation Reports¶

Once the jobs are ran you can nagivate to the Device Software Validation Reports by selecting Device Software Validation - Report or Inventory Item Software Validation - Report from the "Device Lifecycle" dropdown menu.

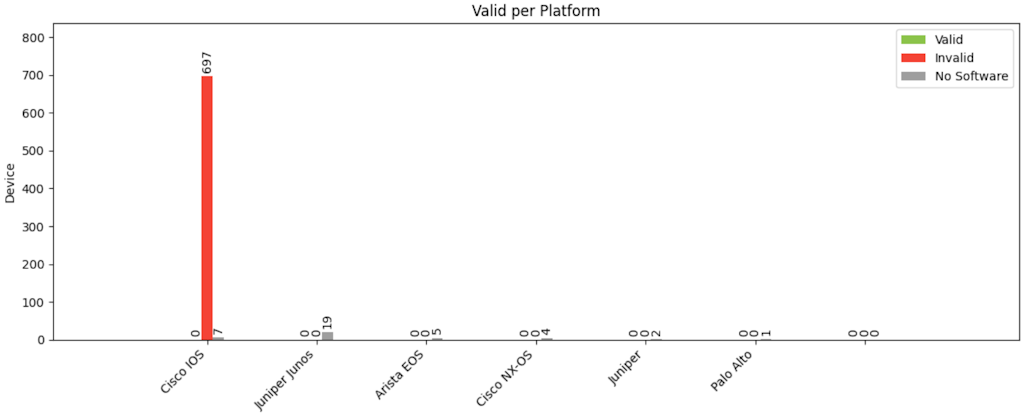

Summary Graph - This will have your validated job results per platform

If graph has too many platforms it will not render very well. You can filter it down to only a few with the right side search form. This issue is currenlty being worked on.

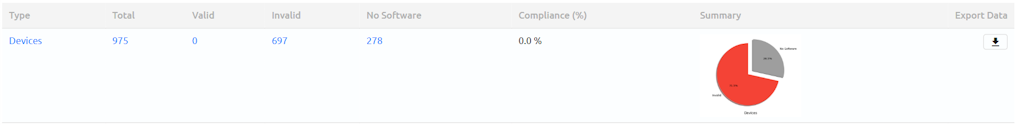

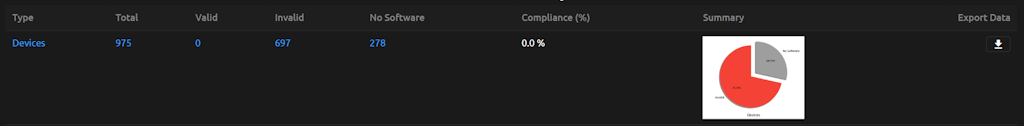

Executive Summary - Quick summary of all objects found with the report run.

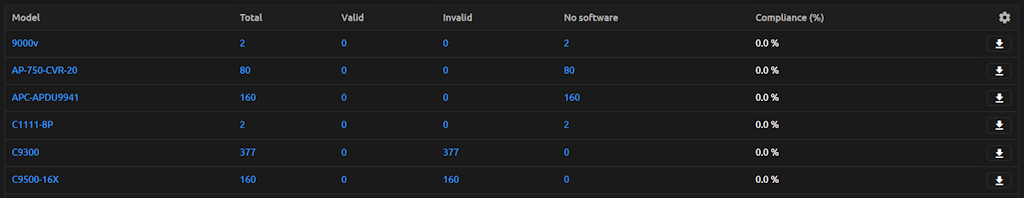

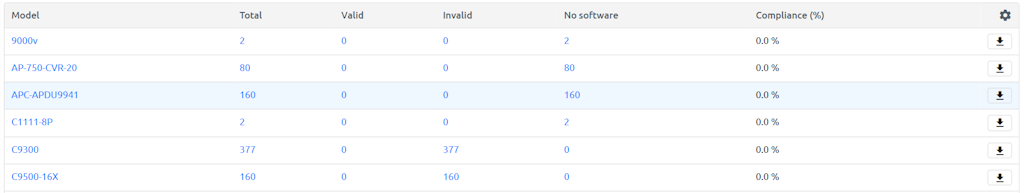

Device Type/Inventory Item Summary - Summery of each Device Type or Inventory Item objects found with the report run.

From the Device Software Validation and Hardware Notice Reports you can export the report results using the Export Data column. The export will be a CVS file. To gather all results export data from the Executive Summary row or you can export each individual Device Type/Inventory Item in its row.

Validation Results Page¶

Once the reporting jobs have been run, you can navigate to the results page by selecting Device Software Validation - List, Inventory Item Software Validation - List, or Device Hardware Notice - List from the "Device Lifecycle" dropdown menu.

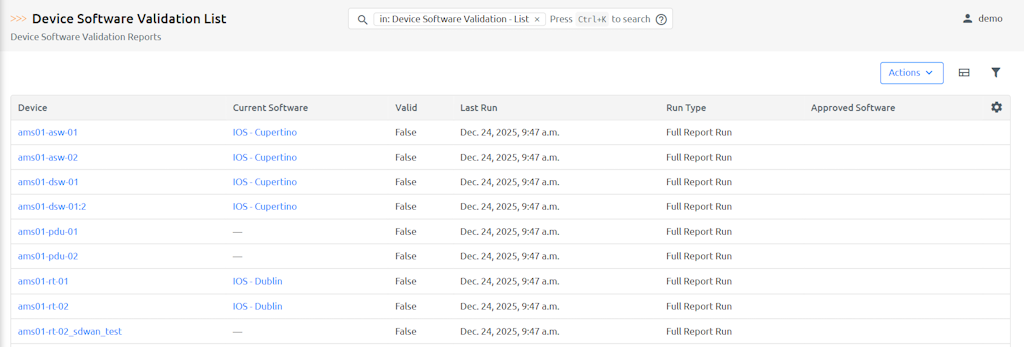

The software validation list page contains the software report results for each device. All columns are sortable and filters can be applied.

Column	Description
Device/Invenotry Item	Name of the device/inventory item in the job result.
Current Software	Software that is currenlty on the device/inventory item.
Valid	The result of the software validation of the device/inventory item.
Last Run	Last time the software validation job was ran on the device/inventory item.
Run Type	Type of software validation job that was ran.
Approved Software	This is Validated Software object that is associated. This can be a list of softwares.

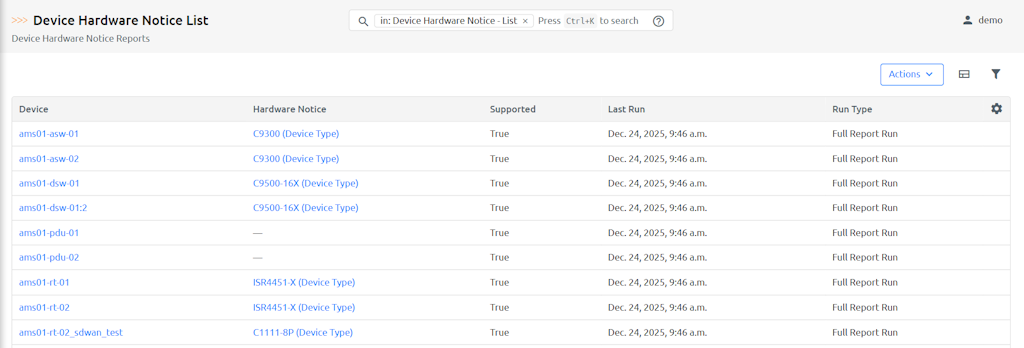

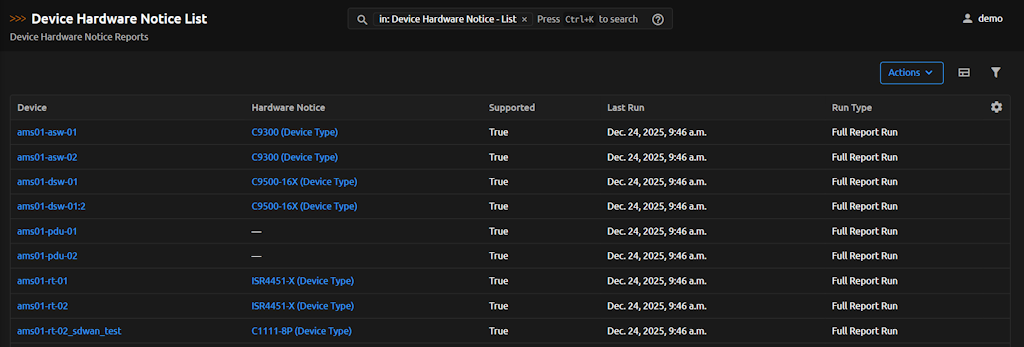

The device hardware notice list page contains the hardware notice results for each device. All columns are sortable and filters can be applied.

Column	Description
Device	Name of the device/inventory item in the job result.
Hardware Notice	Hardware notice that applies to the device type of the device.
Supported	Indicates if a device is currently supported based on hardware notice end of support dates.
Last Run	Last time the hardware notice reporting job was run on the device item.
Run Type	Type of software validation job that was run.

Exporting Software Validation Job Results¶

There are various ways that you can export the software validation result data to a CSV file.

Device/Inventory Item Software Validation - Report

You can export the software validation results using the export button on the row, which will give you more details of the results.

If you hit the export button on the right side it will only give you the summary numbers that are displayed on the page.

If you want all the results click on the export data button on the Executive Summary table.

If you are only looking for individual results per platform/inventory item you can click on the export data button on that row.

"Device/Inventory Item Software Validation - List" page

The export button on the right pane of the page.

This will export data that is populated on the screen so if there are any filters applied to the list it will only export those filtered items

Exporting Device Hardware Notice Report Job Results¶

There are various ways that you can export the device hardware notice report result data to a CSV file.

Device Hardware Notice - Report

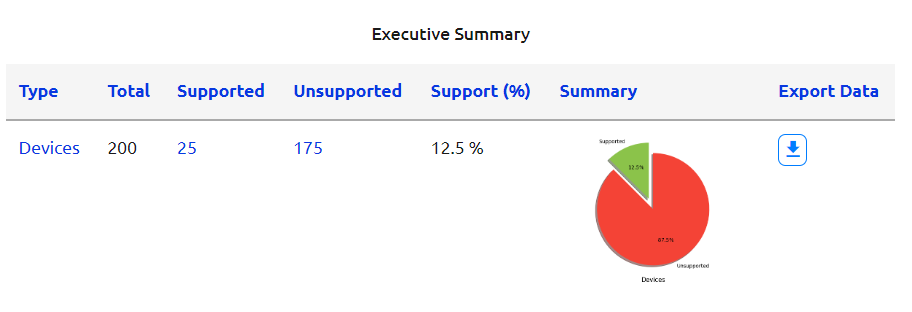

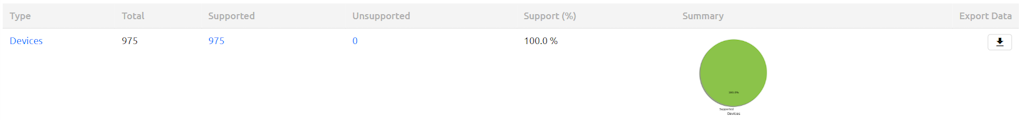

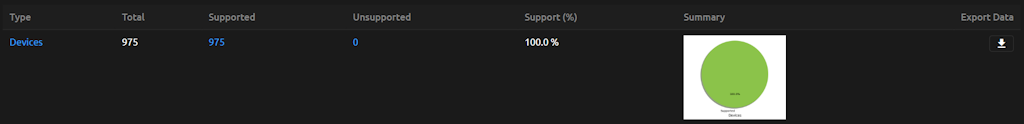

From the executive summary table on the device hardware notice report page, click on the export data button. This will export all results, regardless of the filtering applied.

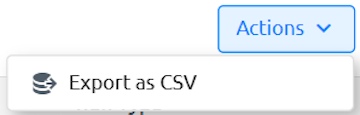

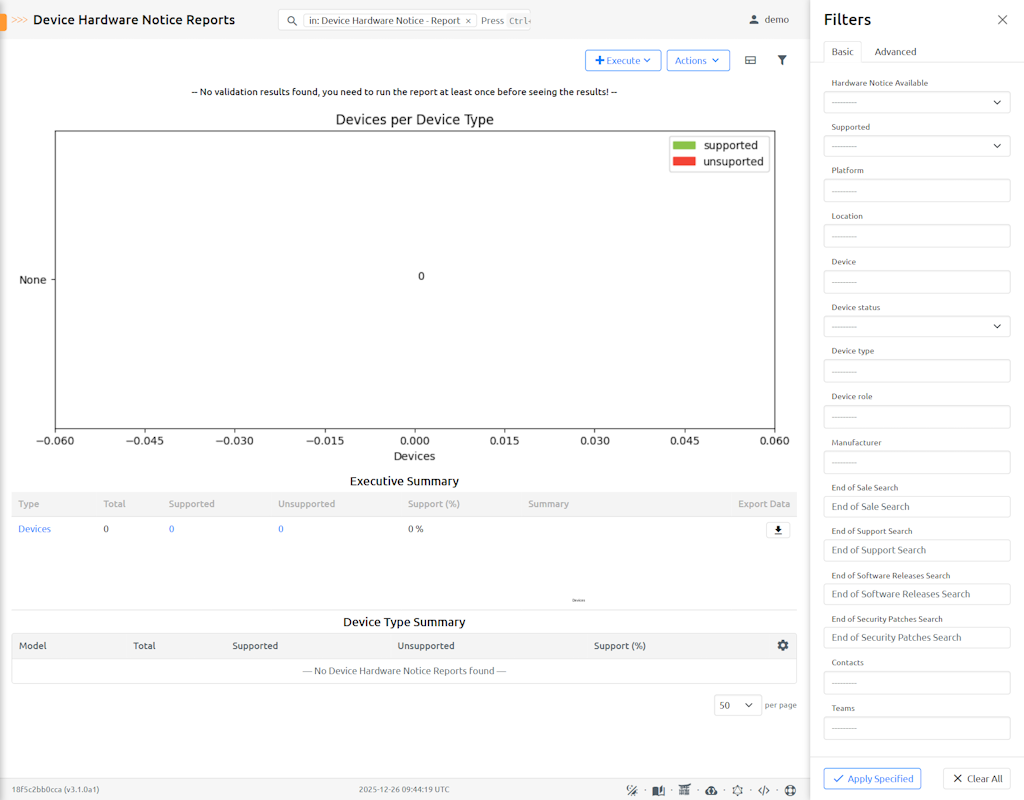

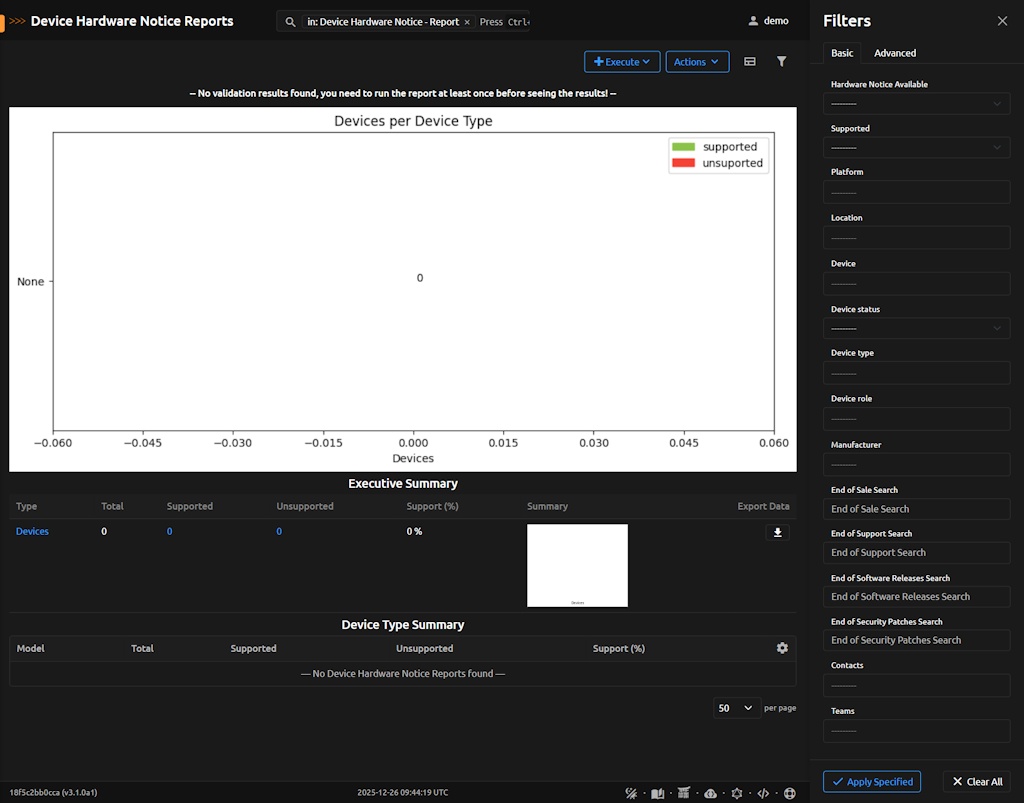

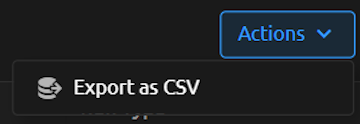

If the report contains a large amount of data, it is recommended to use the green export button at the top of the page instead. This will hand the export job off to a worker and the results will be filtered based on the filter form inputs on the report page.

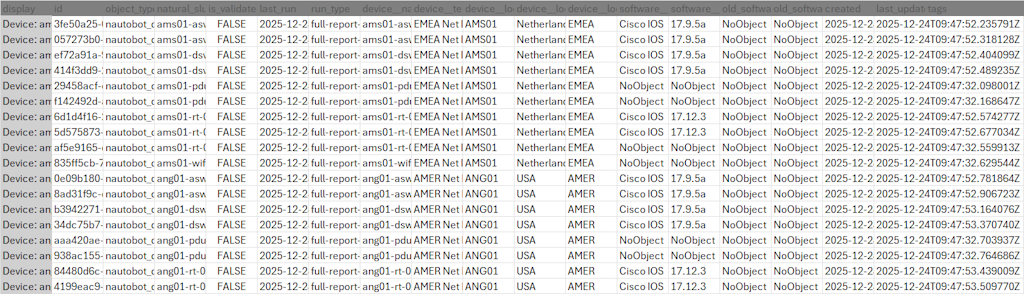

The same filtering options and export button are available at the top of the Device Hardare Notice - List page. Here is an example of the expected output from a CSV export:

display	id	object_type	natural_slug	is_supported	last_run	run_type	device__name	device__tenant__name	device__location__name	device__location__parent__name	device__location__parent__parent__name	hardware_notice__device_type__manufacturer__name	hardware_notice__device_type__model	created	last_updated
Device: device-0 - Supported	72f28e66-857d-420b-8557-2224dcbc0103	nautobot_device_lifecycle_mgmt.devicehardwarenoticeresult	device-0__atl01_united-states-of-america_72f2	True	2024-07-15T15:34:54.765155Z	full-report-run	device-0	NoObject	ATL01	United States Of America	NoObject	Cisco	type-0	2024-07-10T15:42:55.534185Z	2024-07-15T15:35:03.966590Z
Device: device-1 - Supported	437adb20-d063-4e18-b77a-3fee435291c8	nautobot_device_lifecycle_mgmt.devicehardwarenoticeresult	device-1__atl01_united-states-of-america_437a	True	2024-07-15T15:34:54.765155Z	full-report-run	device-1	NoObject	ATL01	United States Of America	NoObject	Cisco	type-1	2024-07-10T15:42:55.594824Z	2024-07-15T15:35:03.451640Z
Device: device-2 - Supported	daad90e0-d040-43c1-9e76-6b3e5cf01c5d	nautobot_device_lifecycle_mgmt.devicehardwarenoticeresult	device-2__atl01_united-states-of-america_daad	True	2024-07-15T15:34:54.765155Z	full-report-run	device-2	NoObject	ATL01	United States Of America	NoObject	Cisco	type-2	2024-07-10T15:42:55.649116Z	2024-07-15T15:35:03.488177Z
Device: device-3 - Supported	65c048f4-2f0e-4969-8ed0-27fc9e520882	nautobot_device_lifecycle_mgmt.devicehardwarenoticeresult	device-3__atl01_united-states-of-america_65c0	True	2024-07-15T15:34:54.765155Z	full-report-run	device-3	NoObject	ATL01	United States Of America	NoObject	Cisco	type-3	2024-07-10T15:42:55.701268Z	2024-07-15T15:35:03.528545Z
Device: device-4 - Supported	f7c0b7b7-248d-4ba8-b78c-f13c0a43b6cf	nautobot_device_lifecycle_mgmt.devicehardwarenoticeresult	device-4__atl01_united-states-of-america_f7c0	True	2024-07-15T15:34:54.765155Z	full-report-run	device-4	NoObject	ATL01	United States Of America	NoObject	Cisco	type-4	2024-07-10T15:42:55.759877Z	2024-07-15T15:35:03.572409Z
Device: device-6 - Supported	4d06de0d-df50-4fb2-8c9a-26a55c1a61cd	nautobot_device_lifecycle_mgmt.devicehardwarenoticeresult	device-6__atl01_united-states-of-america_4d06	True	2024-07-15T15:34:54.765155Z	full-report-run	device-6	NoObject	ATL01	United States Of America	NoObject	Cisco	type-6	2024-07-10T15:42:55.878211Z	2024-07-15T15:35:03.615186Z
Device: device-7 - Supported	c53a4df4-03aa-4db9-931f-dd9277f45b32	nautobot_device_lifecycle_mgmt.devicehardwarenoticeresult	device-7__atl01_united-states-of-america_c53a	True	2024-07-15T15:34:54.765155Z	full-report-run	device-7	NoObject	ATL01	United States Of America	NoObject	Cisco	type-0	2024-07-10T15:42:55.990971Z	2024-07-15T15:35:04.004111Z
Device: device-8 - Supported	1976a33b-1ac3-41ec-b89d-c984fcbb59bd	nautobot_device_lifecycle_mgmt.devicehardwarenoticeresult	device-8__atl01_united-states-of-america_1976	True	2024-07-15T15:34:54.765155Z	full-report-run	device-8	NoObject	ATL01	United States Of America	NoObject	Cisco	type-0	2024-07-10T15:42:56.117182Z	2024-07-15T15:35:04.040316Z

Validated Software Results List - API¶

You can gather all the results from report by using the API that is built into Nautobot.

API command

GET /api/plugins/nautobot-device-lifecycle-mgmt/device-validated-software-result/

Output

HTTP 200 OK
API-Version: 1.2
Allow: GET, HEAD, OPTIONS
Content-Type: application/json
Vary: Accept

{
    "count": 1,
    "next": "http://127.0.0.1:8080/api/plugins/nautobot-device-lifecycle-mgmt/device-validated-software-result/?limit=50&offset=50",
    "previous": null,
    "results": [
        {
            "id": "66134b8d-3466-4f3c-8c65-136dad061a5f",
            "display": "Device: core1 - Not Valid",
            "device": {
                "display": "core1",
                "id": "95b61475-0d09-4f65-b2b3-1e7e199264c7",
                "url": "http://127.0.0.1:8080/api/dcim/devices/95b61475-0d09-4f65-b2b3-1e7e199264c7/",
                "name": "core1"
            },
            "software": {
                "display": "juniper - 20.1.1",
                "id": "1eb3ca93-5af4-4ab8-a501-eb9b6d01c39b",
                "url": "http://127.0.0.1:8080/api/plugins/nautobot-device-lifecycle-mgmt/software/1eb3ca93-5af4-4ab8-a501-eb9b6d01c39b/",
                "device_platform": "b2689411-f1db-4a41-b8fa-2babaed5d5e7",
                "version": "20.1.1",
                "end_of_support": null
            },
            "is_validated": false,
            "last_run": "2023-05-09T14:40:45.890392Z",
            "run_type": "full-report-run",
            "valid_software": [
                "e7350b60-8180-4d3e-bccd-3a6dff50fb7c"
            ],
            "url": "http://127.0.0.1:8080/api/plugins/nautobot-device-lifecycle-mgmt/device-validated-software-result/66134b8d-3466-4f3c-8c65-136dad061a5f/",
            "created": "2023-05-09",
            "last_updated": "2023-05-09T14:40:45.973772Z",
            "custom_fields": {},
            "tags": []
        },
    }
}

You are able to get the result of if the Device/Inventory Item is valid or not by the "display" key. The key will display the following.

"display": "Device: << device.name >> - Not Valid"
"display": "Device: << device.name >> - Valid"

Device Haredware Notice Results List - API¶

You can gather all the results from the report using the API that is built into Nautobot.

API command

GET /api/plugins/nautobot-device-lifecycle-mgmt/device-hardware-notice-result/

Output

HTTP 200 OK
API-Version: 2.2
Allow: GET, HEAD, OPTIONS
Content-Type: application/json
Vary: Accept

{
    "count": 200,
    "next": "http://localhost:8080/api/plugins/nautobot-device-lifecycle-mgmt/device-hardware-notice-result/?limit=50&offset=100",
    "previous": "http://localhost:8080/api/plugins/nautobot-device-lifecycle-mgmt/device-hardware-notice-result/?limit=50",
    "results": [
        {
            "id": "60fd548e-e625-4094-ada2-692b1f8d924c",
            "object_type": "nautobot_device_lifecycle_mgmt.devicehardwarenoticeresult",
            "display": "Device: device-50 - Not Supported",
            "url": "http://localhost:8080/api/plugins/nautobot-device-lifecycle-mgmt/device-hardware-notice-result/60fd548e-e625-4094-ada2-692b1f8d924c/",
            "natural_slug": "device-50__atl01_united-states-of-america_60fd",
            "is_supported": false,
            "last_run": "2024-07-15T15:34:54.765155Z",
            "run_type": "full-report-run",
            "device": {
                "id": "772d9555-3222-4a88-af2a-d07efaebf0e4",
                "object_type": "dcim.device",
                "url": "http://localhost:8080/api/dcim/devices/772d9555-3222-4a88-af2a-d07efaebf0e4/"
            },
            "hardware_notice": {
                "id": "8fbb9f8c-5bd3-434b-8704-e9ab914e94af",
                "object_type": "nautobot_device_lifecycle_mgmt.hardwarelcm",
                "url": "http://localhost:8080/api/plugins/nautobot-device-lifecycle-mgmt/hardware/8fbb9f8c-5bd3-434b-8704-e9ab914e94af/"
            },
            "created": "2024-07-10T15:42:59.837920Z",
            "last_updated": "2024-07-15T15:34:57.313538Z",
            "notes_url": "http://localhost:8080/api/plugins/nautobot-device-lifecycle-mgmt/device-hardware-notice-result/60fd548e-e625-4094-ada2-692b1f8d924c/notes/",
            "custom_fields": {}
        }
}
