VPN Profile

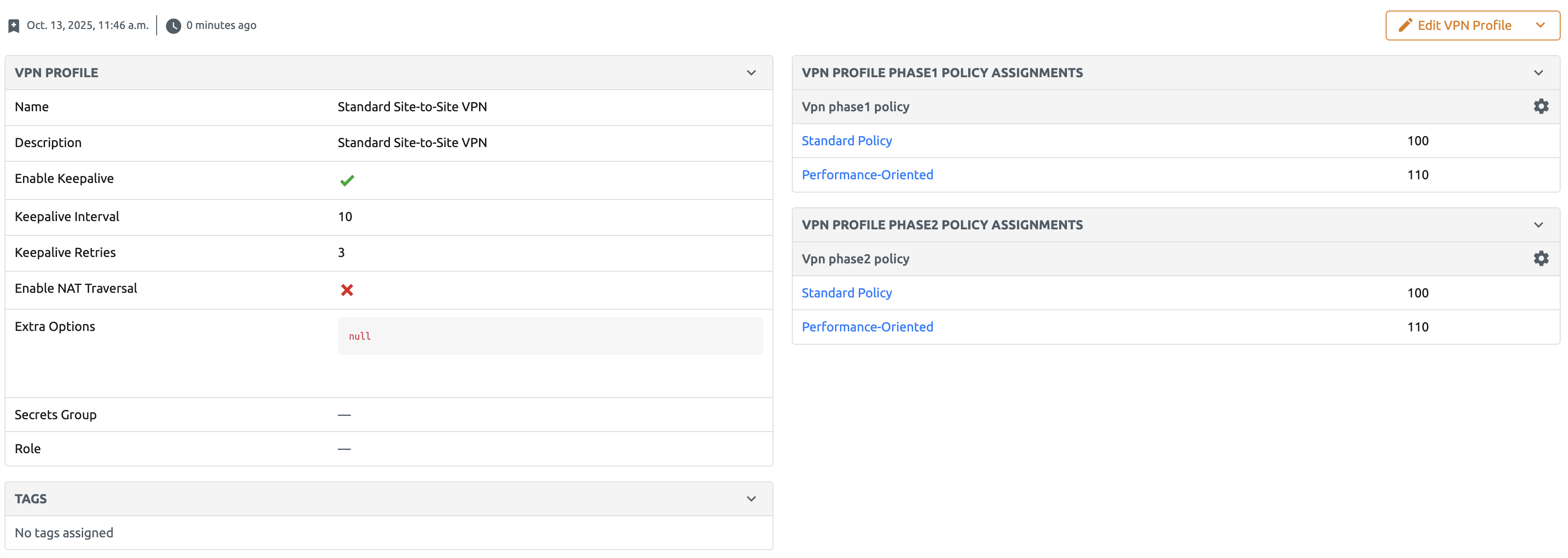

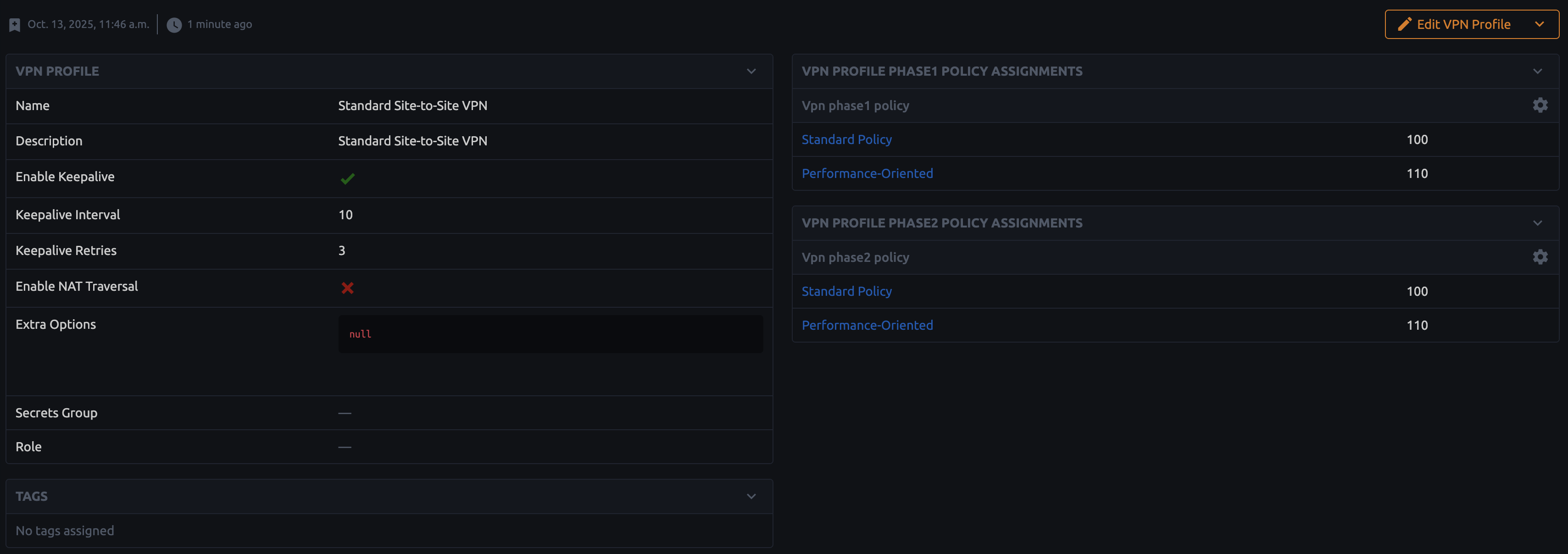

A VPN Profile is a reusable template that combines the parameters for IKE (Phase 1) and IPSec (Phase 2) policies into a single entity which can be applied to multiple VPN tunnels. To further facilitate organization and management, a VPN Profile can be associated with multiple Phase 1 and Phase 2 policies, ordered by defined weights to determine their priority as shown in the below screenshot. This way, as supported by several platforms, the user can deterministically set the order by which they will be used during VPN negotiations.

VPN Profiles can also be associated with Secrets, ensuring that sensitive information such as pre-shared keys or certificates are managed securely. Nautobot users can create and manage VPN Profiles to standardize the configuration of VPN tunnels across their network infrastructure. Additionally, several VPN profiles are available by default in Nautobot to facilitate quick setup.

Name	VPN Phase 1 Policy	VPN Phase 2 Policy	Enable keepalive	Keepalive interval	Keepalive retries	Enable NAT traversal
High-Security Profile	High-Security Policy	High-Security Policy	True	15	4	False
Standard Profile	Standard Policy	Standard Policy	True	10	3	False
Performance-Oriented Profile	Performance-Oriented Policy	Performance-Oriented Policy	True	5	2	False
Remote Access Profile	Remote Access Policy	Remote Access Policy	True	30	5	False

Note

VPN Profiles can be assigned to VPNs, VPN Tunnels, and VPN Tunnel Endpoints. At the moment, it remains the user's responsibility to decide how to use and consume this feature in their configuration templates. We consider introducing an inheritance mechanism in a later version that will make VPN Profiles even easier to use.
