VPN Data Models

Nautobot provides a set of models for representing Virtual Private Networks (VPNs), including reusable profiles, policies, and tunnel endpoints. These models enable you to define IKE (Phase 1) and IPSec (Phase 2) policy parameters, manage tunnel endpoints, and associate VPNs with roles and secrets. Additionally, VPNs may optionally be associated with tenants so that administrators can indicate ownership of related model instances.

Note

At present, Nautobot's VPN models are designed to represent tunnel-based VPNs. Support for overlay VPNs (MPLS, VXLAN, etc) is planned for future releases.

High-Level Architecture of VPN Models

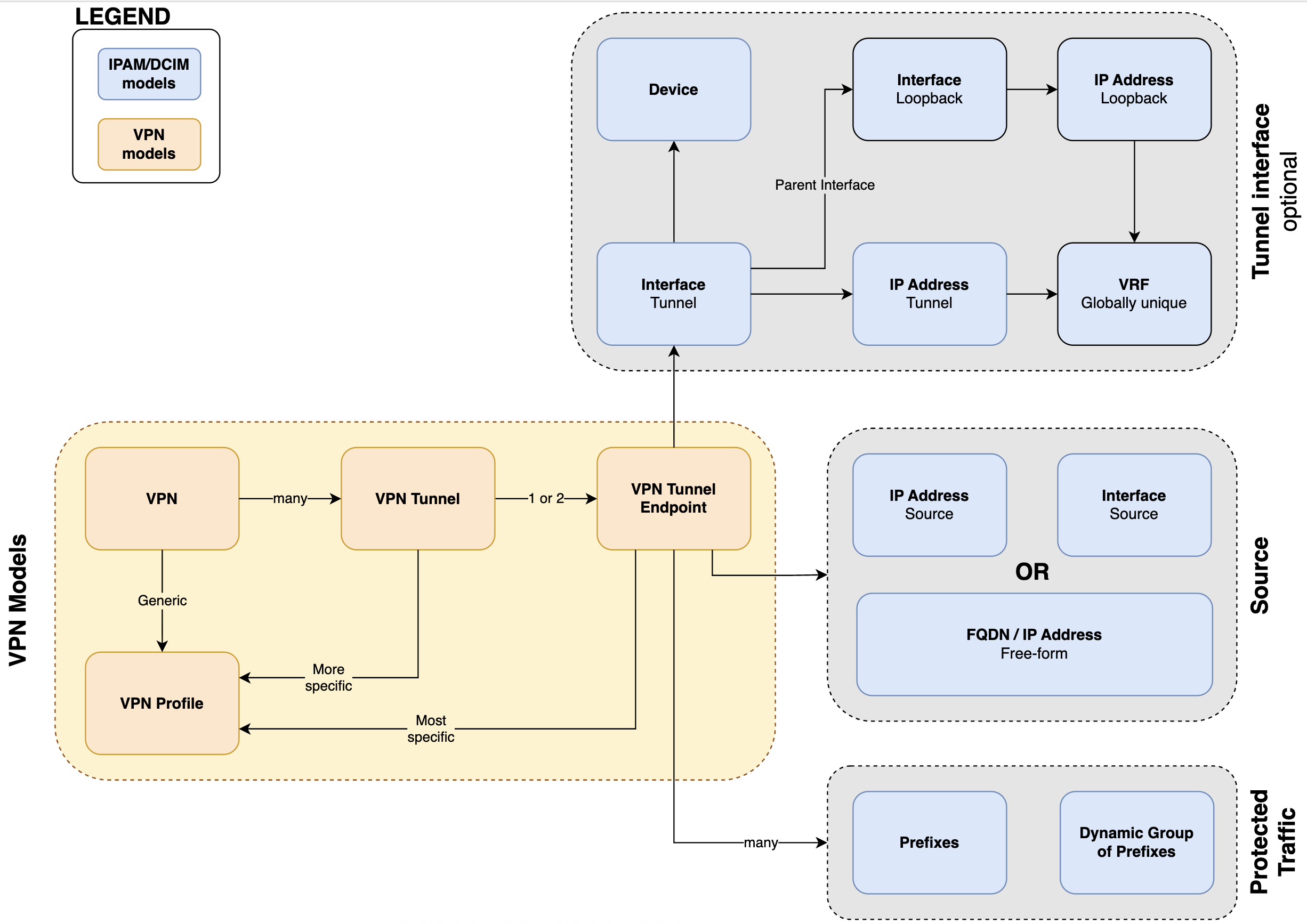

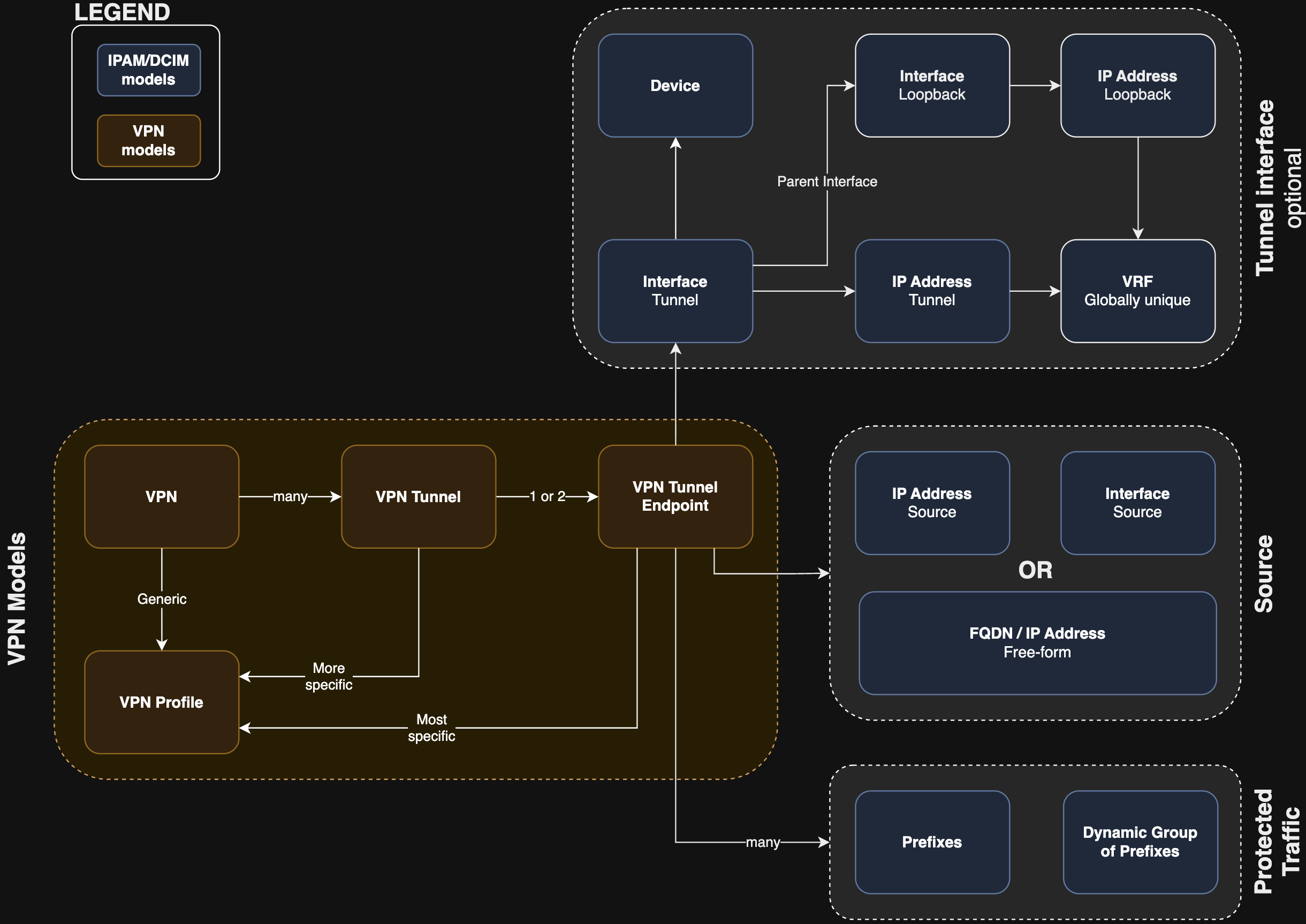

The following diagram represents the logic behind VPN Models at a high level. VPN Models VPN Models

Entity Relationship Diagrams

The following schemas illustrate the connections between related models.

Note

Two separate diagrams are shown to make it easier for the reader. Additionally, several minor elements such as Status and Role are not shown for the same reason.

VPN Profile Models Entity-Relationship Diagram

---
title: VPN Profile, Phase I, and Phase II Policies
---
erDiagram
    "extras.Role"[Role] {}
    "extras.SecretsGroup"[SecretsGroup] {}
    "nautobot_vpn_models.VPN"[VPN] {}
    "nautobot_vpn_models.VPNTunnel"[VPNTunnel] {}
    "nautobot_vpn_models.VPNTunnelEndpoint"[VPNTunnelEndpoint] {}


    "nautobot_vpn_models.VPNProfile"[VPNProfile] {
        VPNPhase1Policy vpn_phase1_policy
        VPNPhase2Policy vpn_phase2_policy
        string name
        string description
        boolean keepalive_enabled
        integer keepalive_interval
        integer keepalive_retries
        boolean nat_traversal
        json extra_options
        SecretsGroup secrets_group
        Role role
    }

    "nautobot_vpn_models.VPNPhase1Policy"[VPNPhase1Policy] {
        string name
        string description
        choices ike_version
        boolean aggressive_mode
        choices encryption_algorithm
        choices integrity_algorithm
        choices dh_group
        integer lifetime_seconds
        integer lifetime_kb
        choices authentication_method
    }

    "nautobot_vpn_models.VPNPhase2Policy"[VPNPhase2Policy] {
        string name
        string description
        choices encryption_algorithm
        choices integrity_algorithm
        choices pfs_group
        integer lifetime
    }

    "nautobot_vpn_models.VPNProfile" }o--o{ "nautobot_vpn_models.VPNPhase1Policy" : "may have"
    "nautobot_vpn_models.VPNProfile" }o--o{ "nautobot_vpn_models.VPNPhase2Policy" : "may have"
    "nautobot_vpn_models.VPNProfile" }o--o| "extras.Role" : "may have"
    "nautobot_vpn_models.VPNProfile" }o--o| "extras.SecretsGroup" : "may have"

    "nautobot_vpn_models.VPN" }o--o| "nautobot_vpn_models.VPNProfile" : "may have"
    "nautobot_vpn_models.VPNTunnel" }o--o| "nautobot_vpn_models.VPNProfile" : "may have"
    "nautobot_vpn_models.VPNTunnelEndpoint" }o--o| "nautobot_vpn_models.VPNProfile" : "may have"

VPN Models Entity-Relationship Diagram

---
title: VPNs, Tunnels, and Endpoints
---
erDiagram
    "dcim.Interface"[Interface] {}
    "extras.DynamicGroup"[DynamicGroup] {}
    "ipam.IPAddress"[IPAddress] {}
    "ipam.Prefix"[Prefix] {}
    "tenancy.Tenant"[Tenant] {}
    "extras.ContactAssociations"[ContactAssociations] {}

    "nautobot_vpn_models.VPN"[VPN] {
        VPNProfile vpn_profile
        string name
        string description
        string vpn_id
        Tenant tenant
        Role role
        ContactAssociations contact_associations
    }

    "nautobot_vpn_models.VPNTunnel"[VPNTunnel] {
        VPNProfile vpn_profile
        VPN vpn
        string name
        string description
        string tunnel_id
        choices encapsulation
        Tenant tenant
        Status status
        Role role
        ContactAssociations contact_associations
    }

    "nautobot_vpn_models.VPNTunnelEndpoint"[VPNTunnelEndpoint] {
        VPNProfile vpn_profile
        VPNTunnel vpn_tunnel
        IPAddress source_ipaddress
        Interface source_interface
        IPAddress destination_ipaddress
        string destination_fqdn
        Interface tunnel_interface
        DynamicGroup protected_prefixes_dg
        Prefix protected_prefixes
        Role role
        ContactAssociations contact_associations
    }

    "nautobot_vpn_models.VPN" }o--o| "tenancy.Tenant" : "may have"
    "nautobot_vpn_models.VPN" }o--o{ "extras.ContactAssociations" : "may have"

    "nautobot_vpn_models.VPNTunnel" }o--o| "nautobot_vpn_models.VPN" : "may have"
    "nautobot_vpn_models.VPNTunnel" }o--o| "tenancy.Tenant" : "may have"
    "nautobot_vpn_models.VPNTunnel" }o--o{ "extras.ContactAssociations" : "may have"

    "nautobot_vpn_models.VPNTunnelEndpoint" }o--o{ "nautobot_vpn_models.VPNTunnel" : "may have"
    "nautobot_vpn_models.VPNTunnelEndpoint" }o--o| "ipam.IPAddress" : "destination_ipaddress"
    "nautobot_vpn_models.VPNTunnelEndpoint" }o--o| "ipam.IPAddress" : "source_ipaddress"
    "nautobot_vpn_models.VPNTunnelEndpoint" }o--o| "dcim.Interface" : "source_interface"
    "nautobot_vpn_models.VPNTunnelEndpoint" |o--o| "dcim.Interface" : "tunnel_interface"
    "nautobot_vpn_models.VPNTunnelEndpoint" }o--o{ "extras.DynamicGroup" : "protected_prefixes_dg"
    "nautobot_vpn_models.VPNTunnelEndpoint" }o--o{ "ipam.Prefix" : "protected_prefixes"
    "nautobot_vpn_models.VPNTunnelEndpoint" }o--o{ "extras.ContactAssociations" : "may have"

Indicative Usage

Use Cases

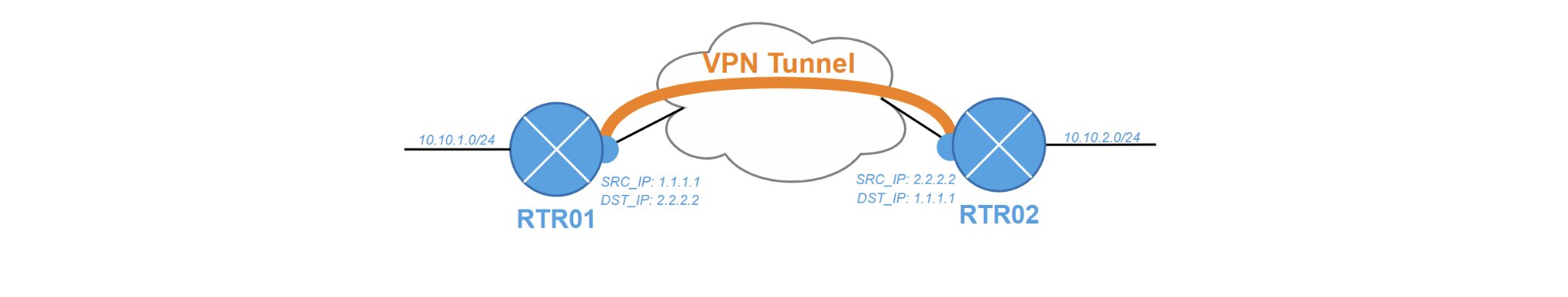

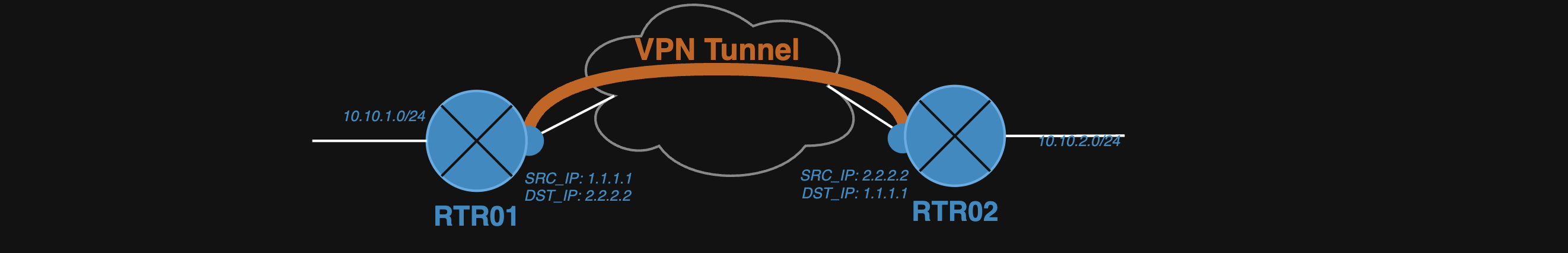

Site-to-site IPSec VPN tunnel (transport mode)

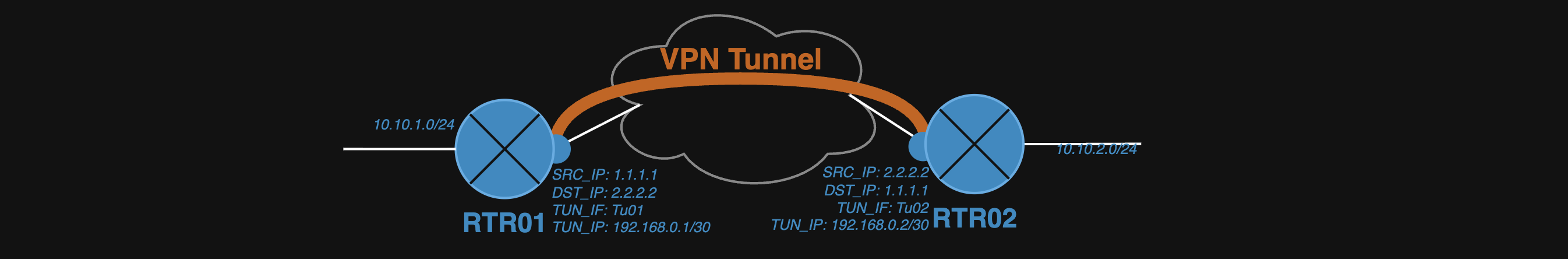

Probably the simplest scenario for creating an IPSec VPN tunnel between two endpoints. No tunnel interface is assumed in this scenario. VPN Models VPN Models

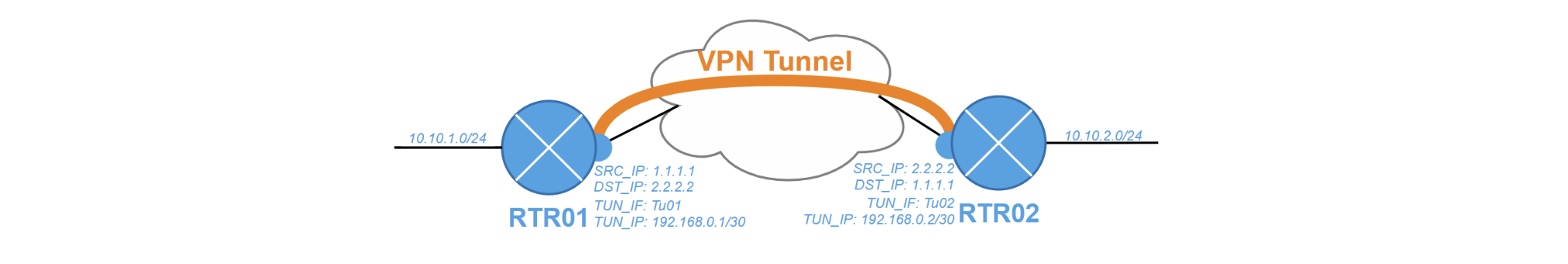

Site-to-site IPSec VPN tunnel (tunnel mode)

Another scenario with an IPSec VPN tunnel between two endpoints but this time a tunnel interface is used. VPN Models VPN Models

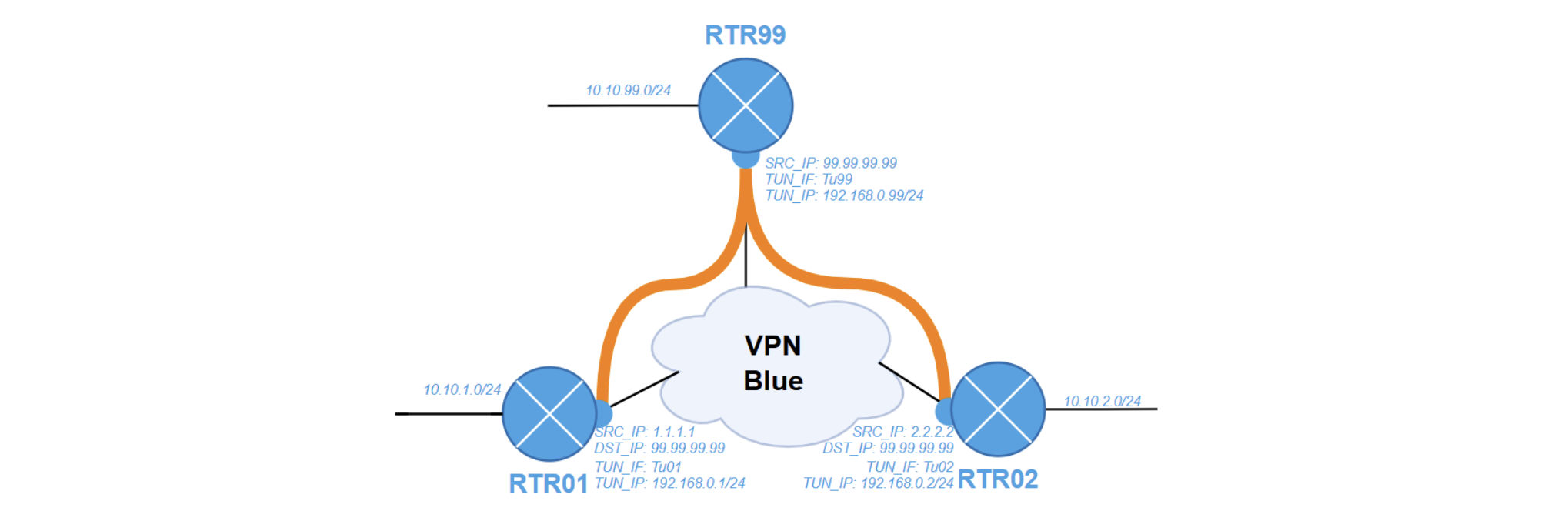

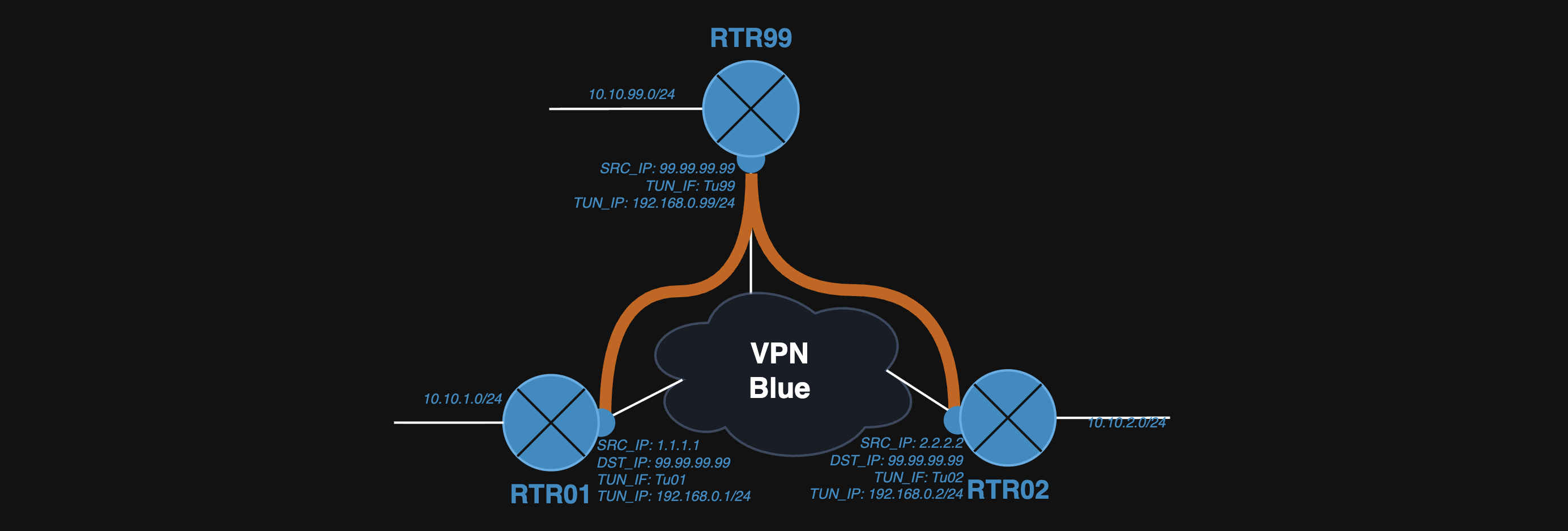

Single hub-and-spoke VPN

Implementation of a hub-and-spoke topology (e.g. DMVPN) with RTR99 as the hub. The difference between this and site-to-site VPN tunnels is that, in this case, the hub only receives inbound VPN requests from the spokes. As such, its tunnel endpoint is re-used among tunnels and also does not need to define destination IP/FQDN. VPN Models VPN Models

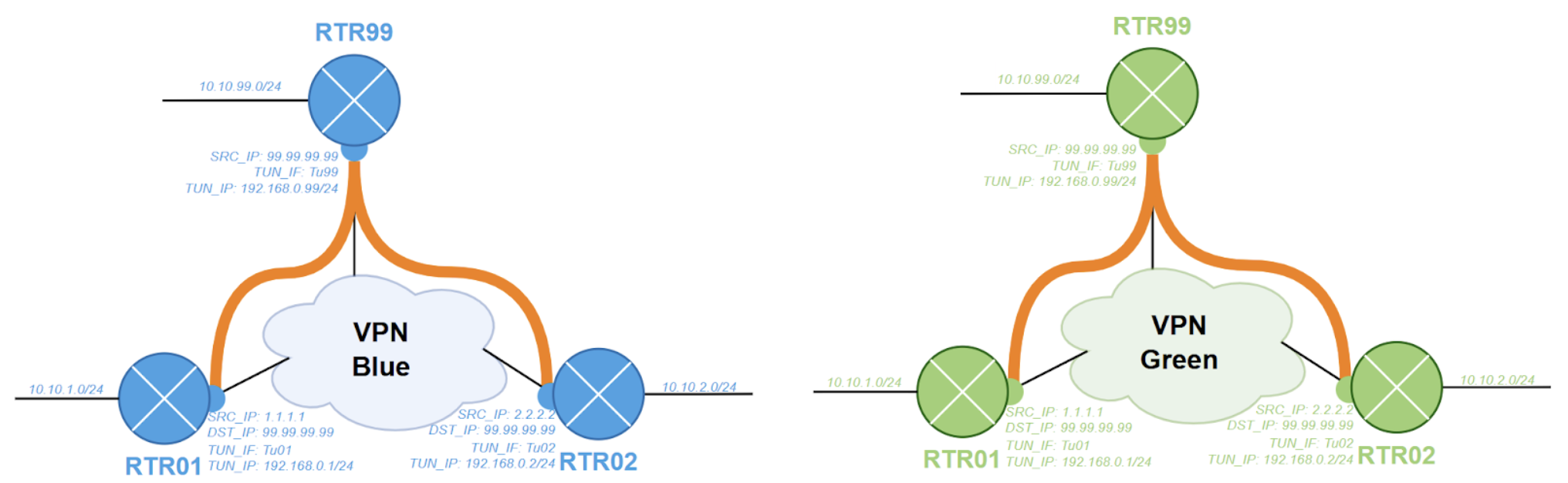

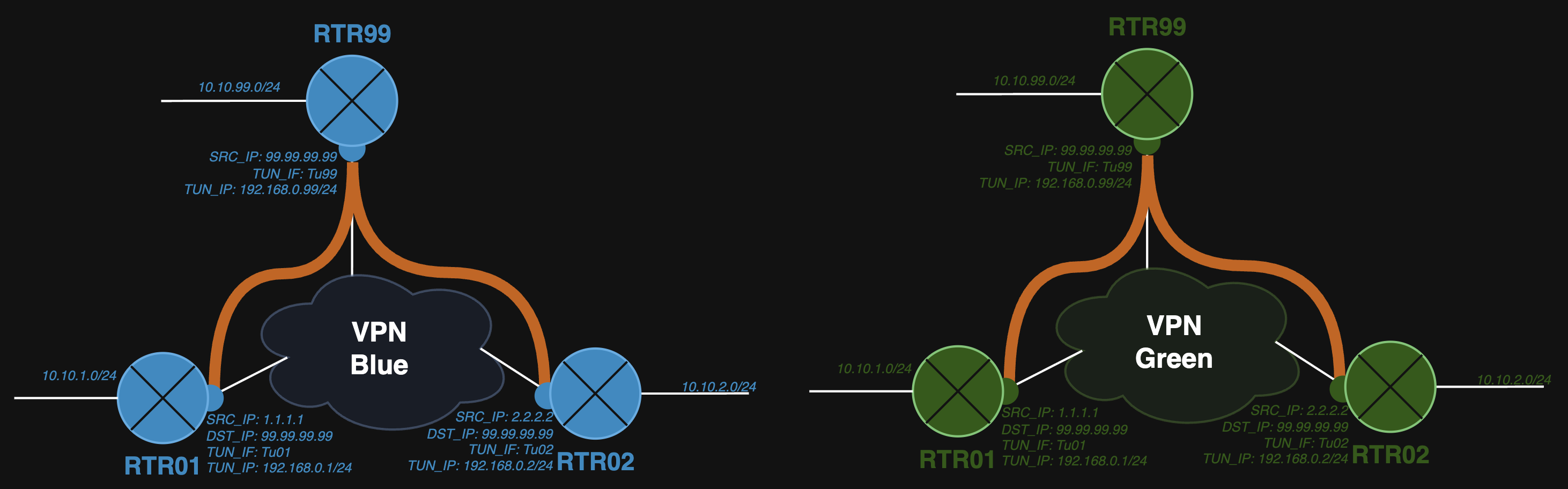

Multiple hub-and-spoke VPNs

Virtually the same as above, mentioned here to illustrate the separation between VPN groupings. VPN Models VPN Models

GraphQL query examples

The following GraphQL query examples show how an operator can query the information that is stored in the proposed VPN models.

Querying VPN attributes

{
  vpns {
    vpn_profile {
      name
      secrets_group {
        name
      }
      vpn_phase1_policies {
        name
        encryption_algorithm
        integrity_algorithm
      }
      vpn_phase2_policies {
        name
        encryption_algorithm
        integrity_algorithm
      }
    }
    vpn_tunnels {
      name
      vpn_profile {
        name
      }
    }
  }
}

Device-level VPN info

{
  device (id: "ABC123") {
    name
    vpn_tunnel_endpoints {
      endpoint_a_vpn_tunnels {
        name
        tunnel_id
        vpn_profile {
          name
        }
      }
      endpoint_z_vpn_tunnels {
        name
        tunnel_id
        vpn_profile {
          name
        }
      }
    }
  }
}

Questions to ask of the data model

Given the data model, what questions would a user ask?

  • Given a device, I would like to know all the Tunnels associated with it
  • Given a tunnel, I would like to know all peers associated with it e.g. the remote devices
  • Given a tunnel or device, I would like to know what tunnel technology I am using e.g. GRE vs DMVPN
  • Given a DMVPN tunnel, I would like to know whether I am a hub or a spoke
  • Given a DMVPN tunnel, I would like to know if I can directly route between spokes i.e. DMVPN phase 3
  • Given a Tunnel, I would like to know, which subnets are considered “southbound” of that
  • Given a Tenant, what VPN Tunnel would have to be configured
