ECharts¶

This module is based on Apache ECharts. To create and configure charts in Nautobot, the EChartsBase class is used. It handles transforming input data, applying themes, and generating a valid ECharts option config JSON.

EChartsBase ¶

Base definition for an ECharts chart (no rendering logic). This class transforms input data, applies theme colors, and generates a valid ECharts option config. Currently, ECharts supports three types:

bar
pie
line

Data Handling¶

The data argument can be provided in several formats:

Raw nested format (more user-friendly):
```
{
    "Series1": {"x1": val1, "x2": val2},
    "Series2": {"x1": val3, "x2": val4},
}
```
- Keys represent series names.
- Each series maps x-axis categories (e.g. "x1", "x2") to numeric values.
- Internally, this is transformed into the normalized format described below.
Normalized internal format (directly compatible with ECharts):
```
{
    "x": ["x1", "x2"],
    "series": [
        {"name": "Series1", "data": [val1, val2]},
        {"name": "Series2", "data": [val3, val4]},
    ]
}
```
- x defines the list of x-axis labels (categories).
- series is a list of objects, each containing:
  - "name": Series name (legend entry).
  - "data": Numeric values aligned with the order of x.
From a QuerySet via helper functions:
- Keys as series
- Records as series

Using a callable (lambda/function):

Instead of passing data directly, you can pass a callable that returns data in any of the above formats.
This is useful in UI components (EChartsPanel) where the database may not be ready at declaration time.

chart = EChartsBase(
    chart_type=EChartsTypeChoices.BAR,
    header="EChart",
    description="Example chart",
    data=lambda context: queryset_to_nested_dict_keys_as_series(
        Location.objects.annotate(
            device_count=count_related(Device, "location"),
        ),
        record_key="status",
        value_keys=["device_count"],
    )
)

Using a callable with context:

For detail views, you often need to compute chart data dynamically based on the object currently being rendered.
You can do this by passing a callable (such as a function or lambda) to the data argument inside chart_kwargs.
The callable receives the context, giving you access to the current object at render time.

def tenant_related_objects_data(context):
    instance = get_obj_from_context(context)
    data_series = {
        "Circuits": instance.circuits.count(),
        "Clusters": instance.clusters.count(),
        "Controllers": instance.controllers.count(),
        "ControllerManagedDeviceGroups": instance.controller_managed_device_groups.count(),
        "Devices": instance.devices.count(),
        "DynamicGroups": instance.dynamic_groups.count(),
        "IpAddresses": instance.ip_addresses.count(),
        "Locations": instance.locations.count(),
        "Prefixes": instance.prefixes.count(),
        "Racks": instance.racks.count(),
        "RackReservations": instance.rack_reservations.count(),
        "VirtualMachines": instance.virtual_machines.count(),
        "VLANs": instance.vlans.count(),
        "VRFs": instance.vrfs.count(),
    }
    return {instance.name: data_series}

object_detail_panels = [
    EChartsPanel(
        section=SectionChoices.FULL_WIDTH,
        weight=100,
        label="EChart - Tenant Stats",
        chart_kwargs={
            "chart_type": EChartsTypeChoices.PIE,
            "header": "Stats by Tenant",
            "description": "Example chart using context and queryset.",
            "data": tenant_related_objects_data,
        },
    )
]

Here, the dataset is generated dynamically for the current Tenant object by using a callable with context.
This approach is recommended when chart data should be tied to the specific object being rendered in the detail view.

Additional Options¶

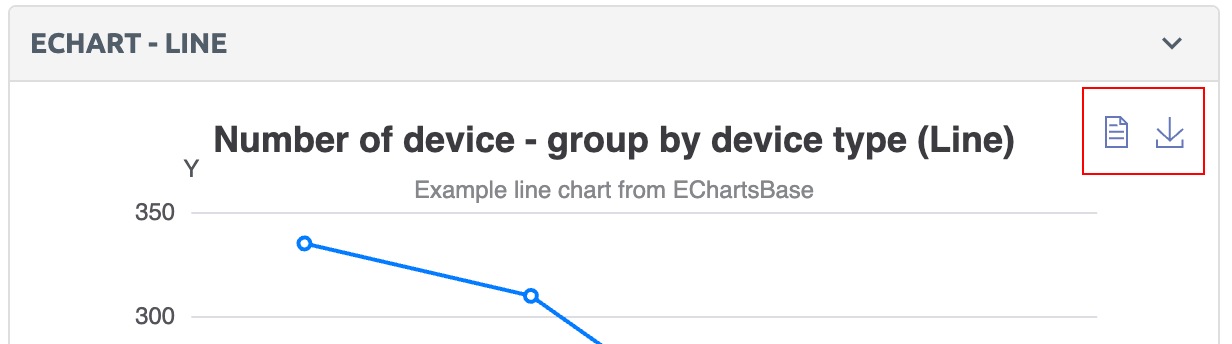

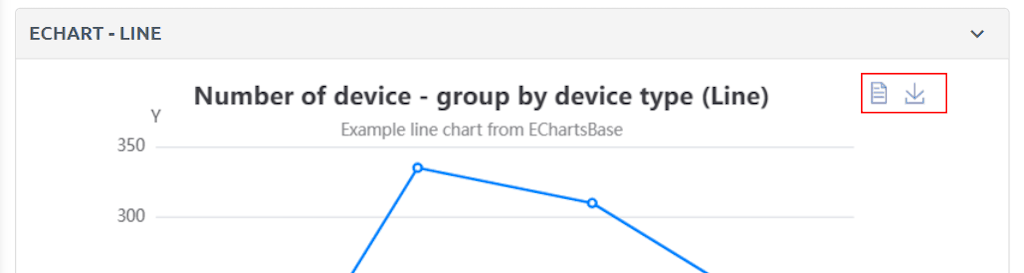

Each chart comes with two default toolbox icons:

Detail View (allows viewing the underlying chart data)
Save as Image (allows exporting the chart as an image (png, jpeg or svg). See more information in model definition)

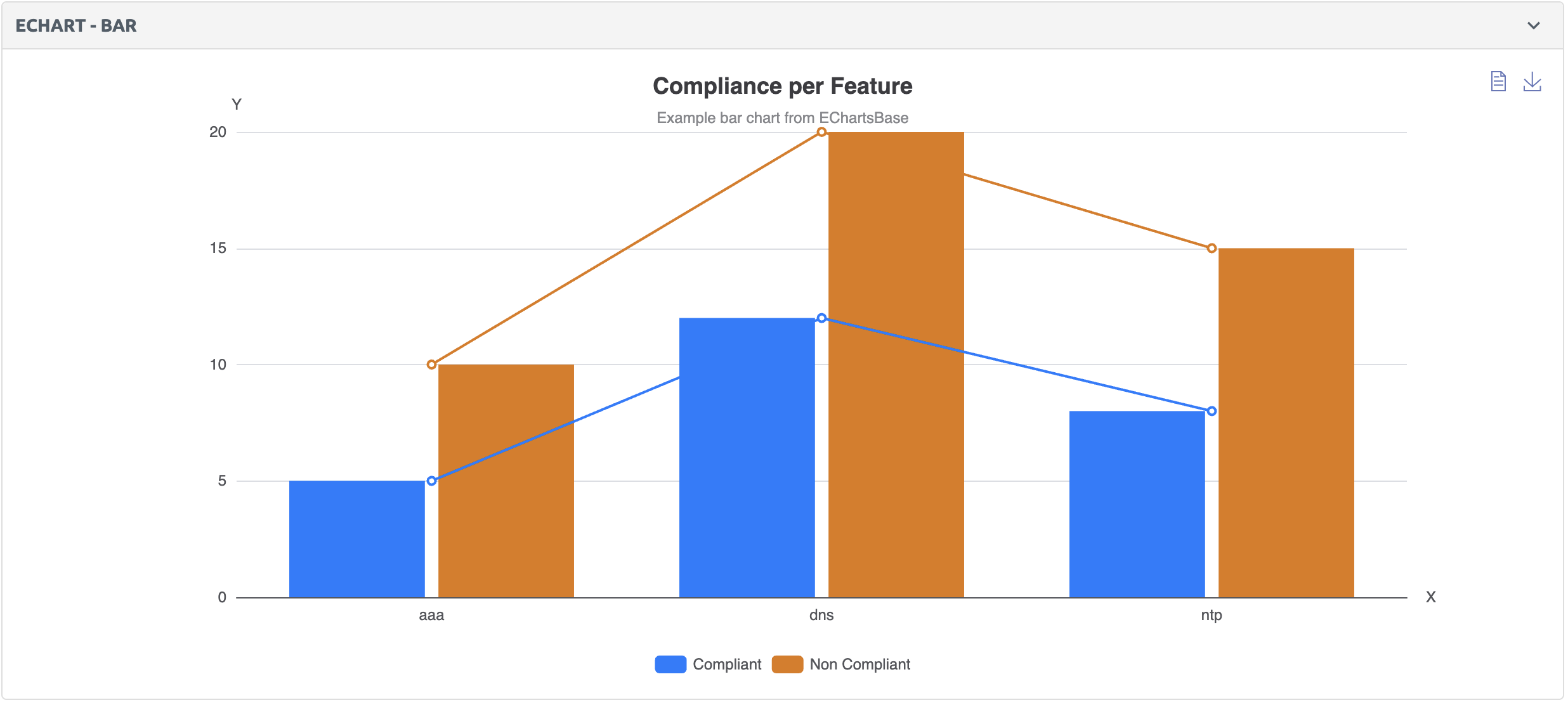

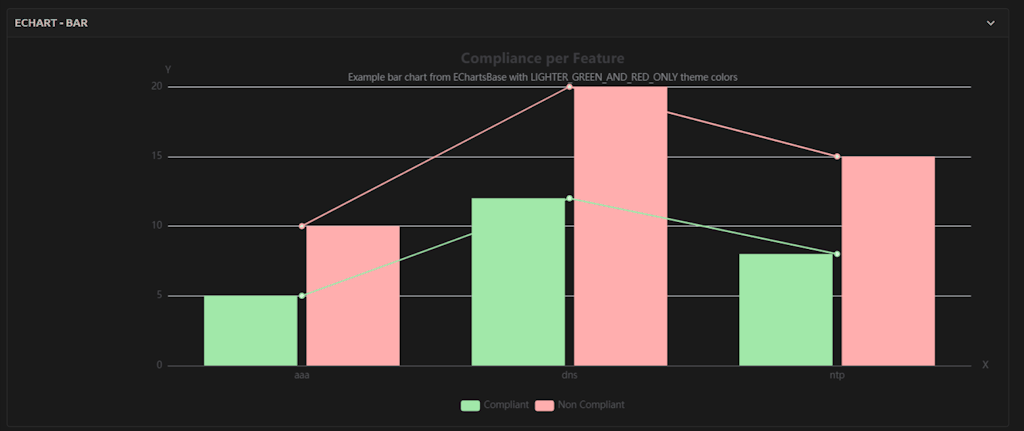

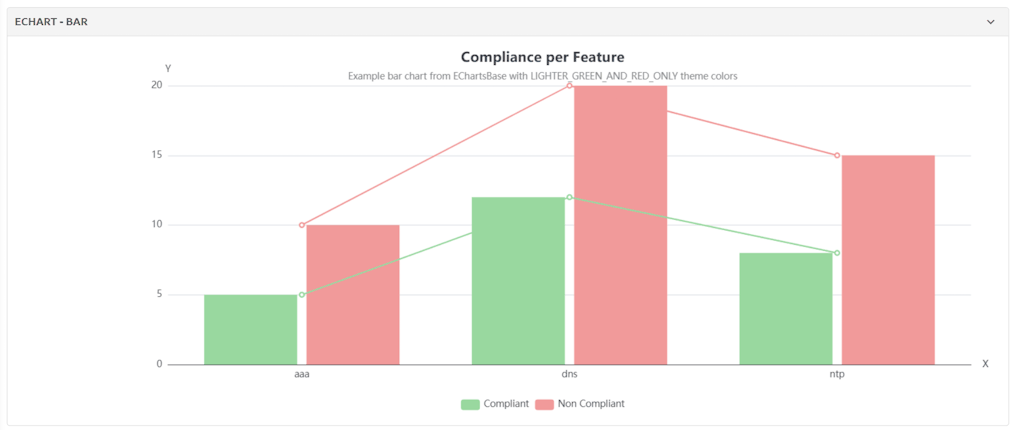

Combined Charts (`combined_with`)¶

combined_with allows merging another chart of a different type into the same ECharts instance. The header, description, x-axis, and y-axis are inherited from the parent EChartsBase instance. In the combined_with chart, can specify type and provide data as series names and corresponding values.

chart = EChartsBase(
    chart_type=EChartsTypeChoices.BAR,
    "header": "Compliance per Feature",
    description="Example bar chart with line",
    data={
        "Compliant": {"aaa": 5, "dns": 12, "ntp": 8},
        "Non Compliant": {"aaa": 10, "dns": 20, "ntp": 15},
    },
    combined_with=EChartsBase(
        chart_type=EChartsTypeChoices.LINE,
        data={
            "Compliant": {"aaa": 5, "dns": 12, "ntp": 8},
            "Non Compliant": {"aaa": 10, "dns": 20, "ntp": 15},
        },
    ),
)

Example Usage in a Django View¶

from nautobot.core.ui.echarts import EChartsBase
from nautobot.core.ui.choices import EChartsTypeChoices

template_name = "detail.html"
def get_extra_context(self, request, instance):
    chart = EChartsBase(
        chart_type=EChartsTypeChoices.BAR,
        header="Compliance per Feature",
        description="Example chart",
        data={
            "Compliant": {"aaa": 5, "dns": 12, "ntp": 8},
            "Non Compliant": {"aaa": 10, "dns": 20, "ntp": 15},
        },
    )

    return {
        # Chart object
        "chart": chart,

        # JSON configuration for ECharts (consumed by JS)
        "chart_config": chart.get_config(),

        # Unique HTML <div id="..."> where the chart will be rendered
        "chart_container_id": slugify(f"echart-{chart.header}"),

        # Optional dimensions (defaults are: width="100%", height="32rem")
        "chart_width": "100%",
        "chart_height": "32rem",
    }

Corresponding Template (detail.html)

{% load helpers %}
{% render_echart chart chart_config chart_container_id chart_width chart_height %}

Example Usage as a Nautobot UI Component (EChartsPanel)¶

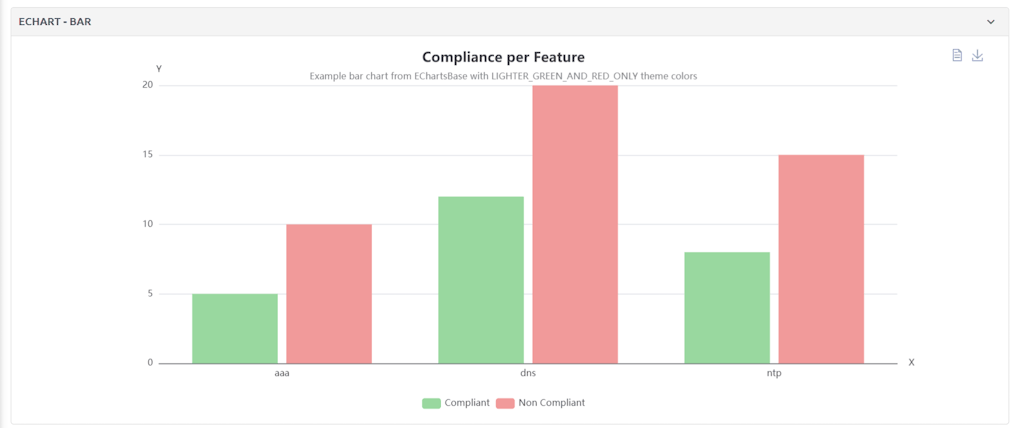

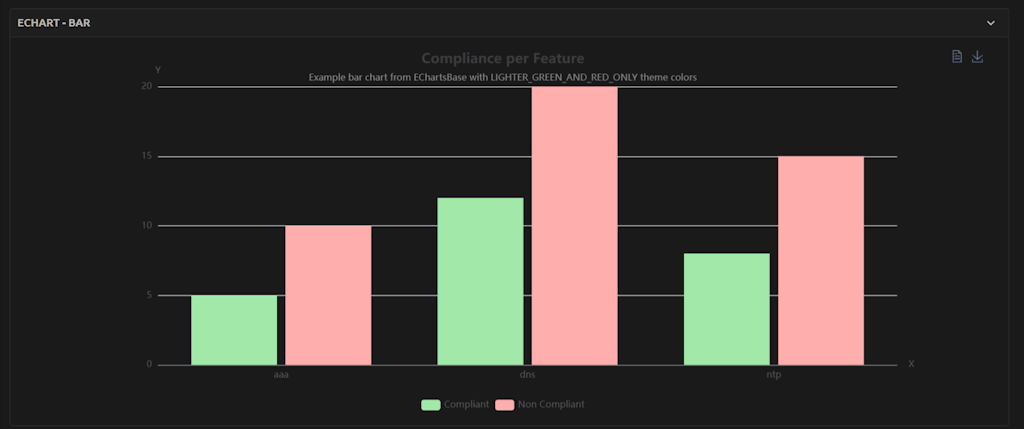

Bar Type¶

from nautobot.core.ui import object_detail
from nautobot.core.ui.choices import EChartsTypeChoices, SectionChoices

object_detail_content = object_detail.ObjectDetailContent(
    panels=[
        object_detail.EChartsPanel(
            section=SectionChoices.FULL_WIDTH,
            weight=100,
            label="EChart - BAR",
            chart_kwargs={
                "chart_type": EChartsTypeChoices.BAR,
                "header": "Compliance per Feature",
                "description": "Example bar chart from EChartsBase",
                "data": {"Compliant": {"aaa": 5, "dns": 12, "ntp": 8}, "Non Compliant": {"aaa": 10, "dns": 20, "ntp": 15}},
            },
        ),
    ]
)

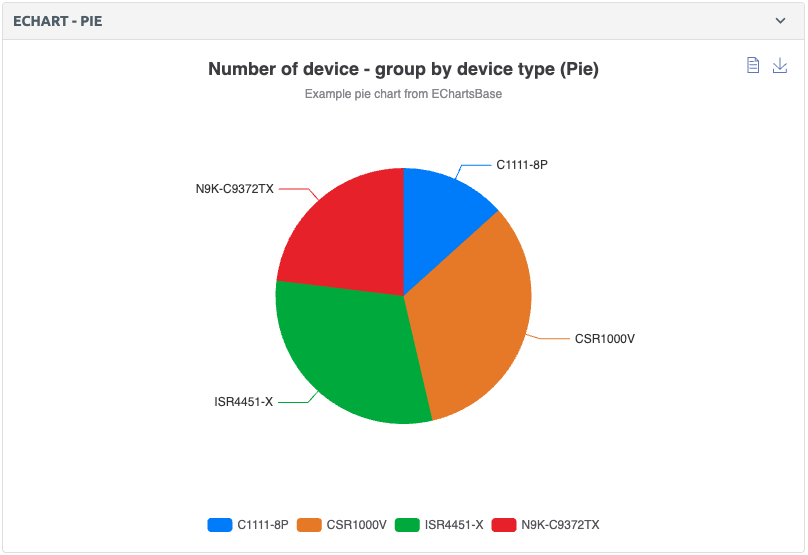

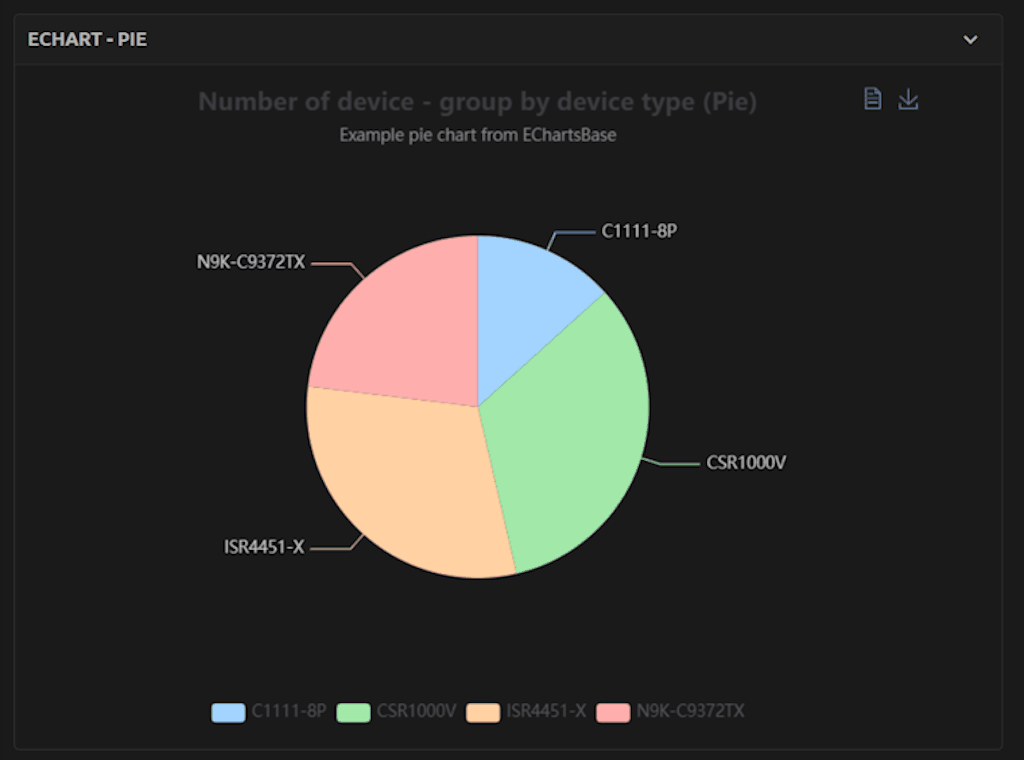

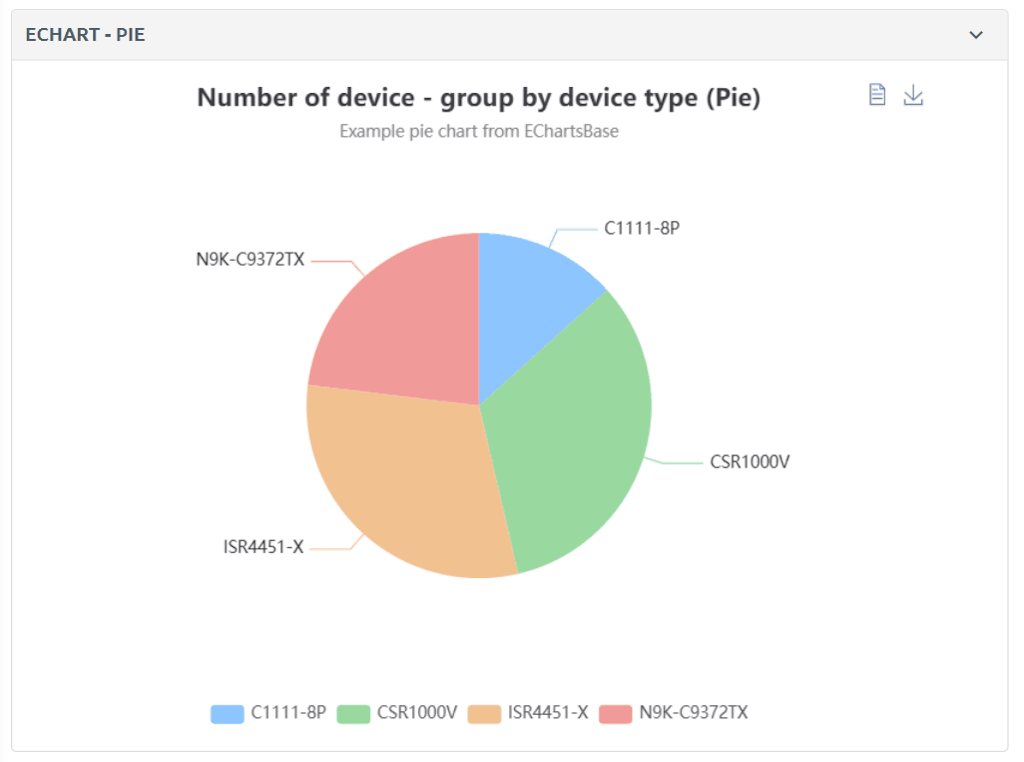

Pie Type¶

from nautobot.core.ui import object_detail
from nautobot.core.ui.choices import EChartsTypeChoices, SectionChoices

object_detail_content = object_detail.ObjectDetailContent(
    panels=[
        object_detail.EChartsPanel(
            section=SectionChoices.LEFT_HALF,
            weight=100,
            label="EChart - PIE",
            chart_kwargs={
                "chart_type": EChartsTypeChoices.PIE,
                "header": "Number of device - group by device type (Pie)",
                "description": "Example pie chart from EChartsBase",
                "data": {"Cisco Device Type": {"CSR1000V": 335, "ISR4451-X": 310, "N9K-C9372TX": 234, "C1111-8P": 135}},
            },
        ),
    ]
)

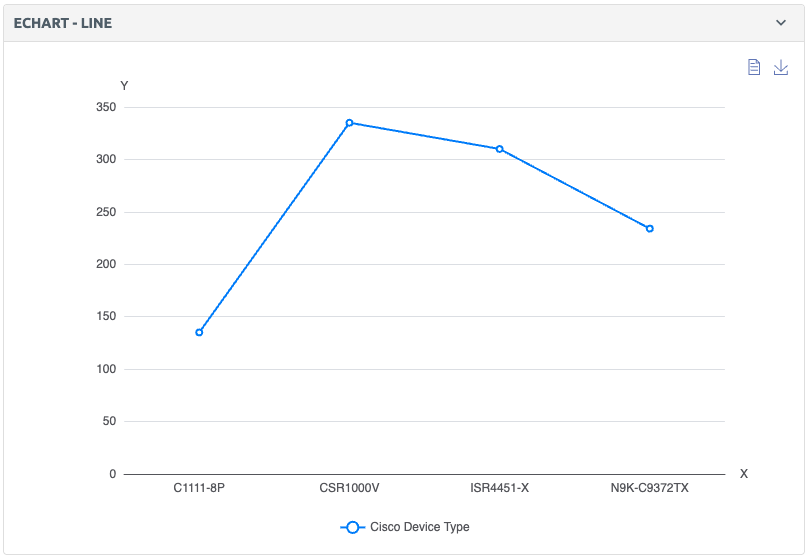

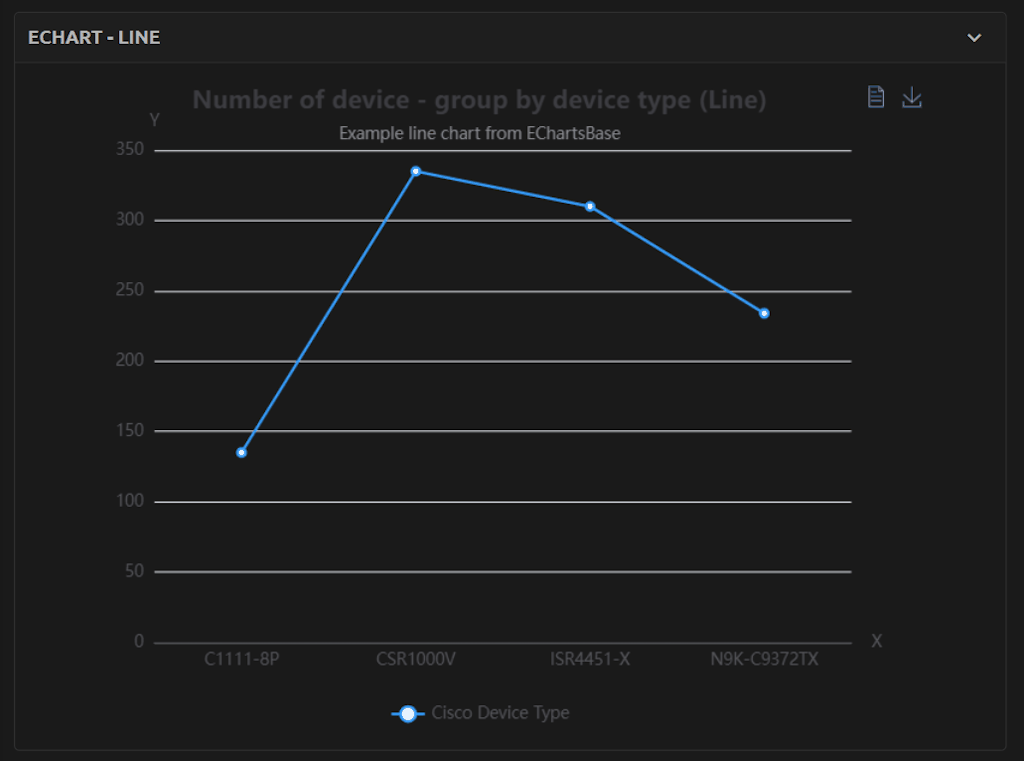

Line Type¶

from nautobot.core.ui import object_detail
from nautobot.core.ui.choices import EChartsTypeChoices, SectionChoices

object_detail_content = object_detail.ObjectDetailContent(
    panels=[
        object_detail.EChartsPanel(
            section=SectionChoices.RIGHT_HALF,
            weight=100,
            label="EChart - LINE",
            chart_kwargs={
                "chart_type": EChartsTypeChoices.LINE,
                "header": "Number of device - group by device type (Line)",
                "description": "Example line chart from EChartsBase",
                "data": {"Cisco Device Type": {"CSR1000V": 335, "ISR4451-X": 310, "N9K-C9372TX": 234, "C1111-8P": 135}},
            },
        ),
    ]
)

Example Usage with Querysets¶

Instead of defining chart data manually, you can generate it directly from annotated querysets using the utility functions queryset_to_nested_dict_records_as_series and queryset_to_nested_dict_keys_as_series.

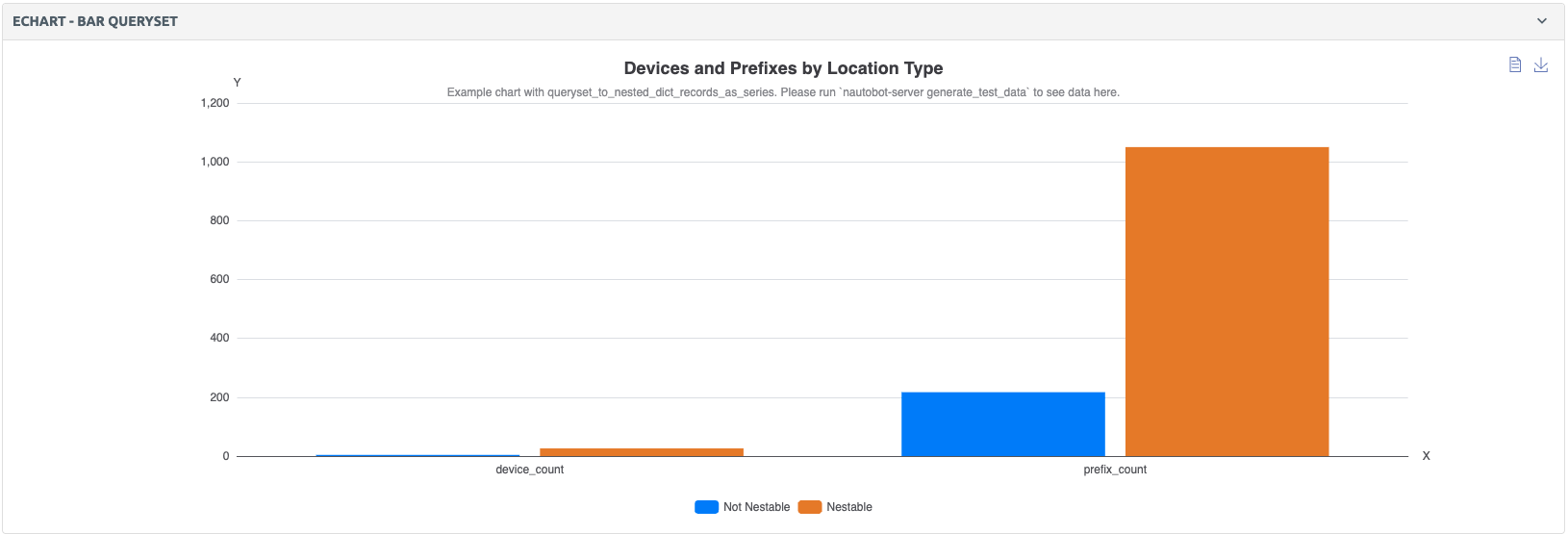

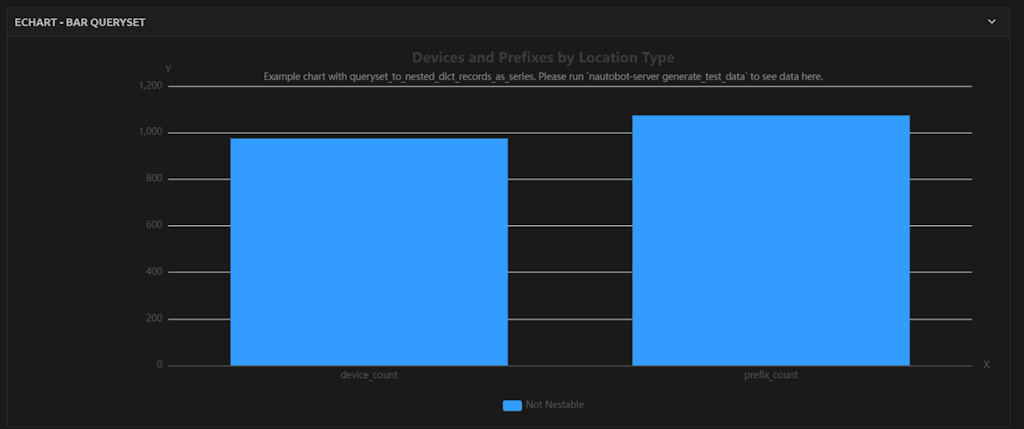

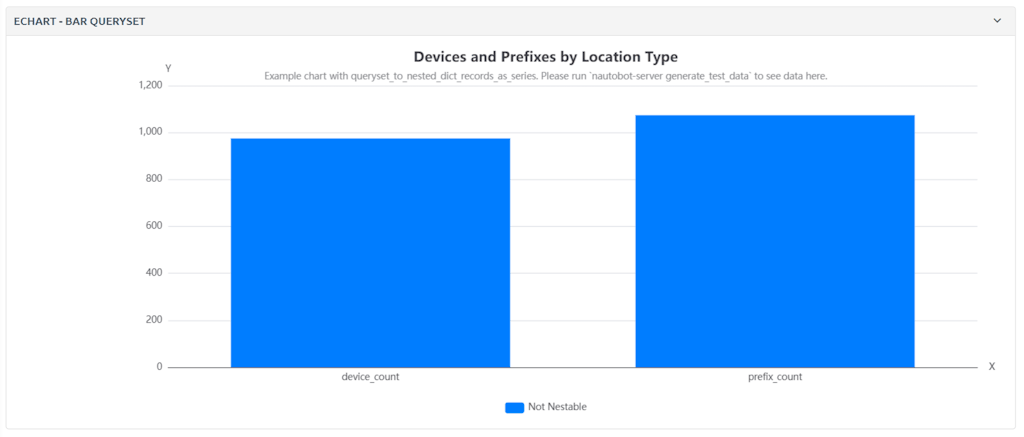

Records as Series (record_key as outer keys)¶

from nautobot.core.ui.echarts import EChartsBase, queryset_to_nested_dict_records_as_series, queryset_to_nested_dict_keys_as_series
from nautobot.core.ui.choices import EChartsTypeChoices

chart = EChartsBase(
    chart_type=EChartsTypeChoices.BAR,
    header="Devices and Prefixes by Location Type",
    description="Example chart with queryset_to_nested_dict_records_as_series",
    data=queryset_to_nested_dict_records_as_series(
        Location.objects.annotate(
            device_count=count_related(Device, "location"),
            prefix_count=count_related(Prefix, "locations"),
        ),
        record_key="location_type__nestable",
        value_keys=["prefix_count", "device_count"],
    ),
)

This produces data in the format:

{
    "Nestable": {"prefix_count": 10, "device_count": 5},
    "No Nestable": {"prefix_count": 3, "device_count": 8},
}

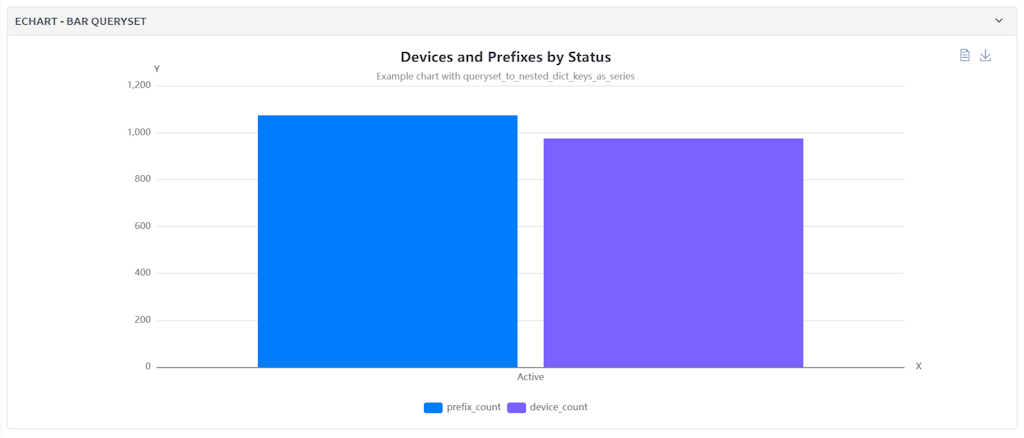

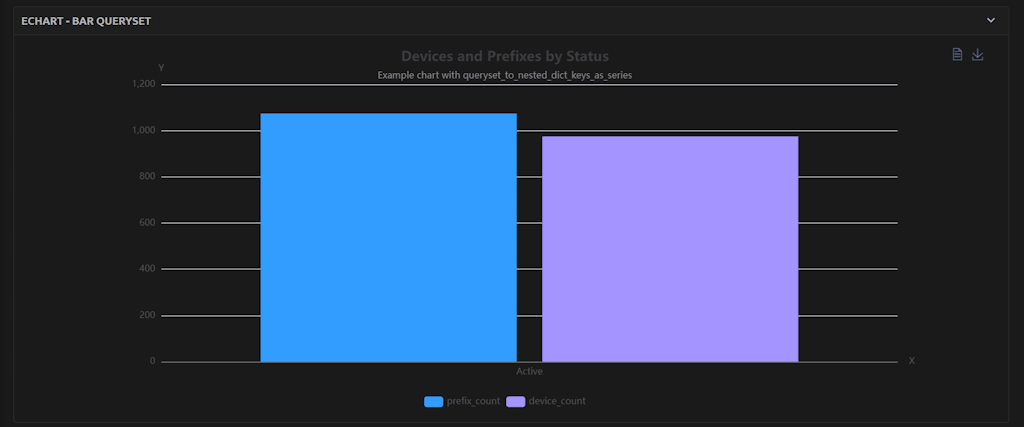

Keys as Series (value_keys as outer keys)¶

from nautobot.core.ui.echarts import EChartsBase, queryset_to_nested_dict_records_as_series, queryset_to_nested_dict_keys_as_series
from nautobot.core.ui.choices import EChartsTypeChoices

chart = EChartsBase(
    chart_type=EChartsTypeChoices.BAR,
    header="Devices and Prefixes by Status",
    description="Example chart with queryset_to_nested_dict_keys_as_series",
    data=queryset_to_nested_dict_keys_as_series(
        Location.objects.annotate(
            device_count=count_related(Device, "location"),
            prefix_count=count_related(Prefix, "locations"),
        ),
        record_key="status",
        value_keys=["prefix_count", "device_count"],
    ),
)
