Approval Workflows¶

Approval Workflows allows for a multi-stage review and approval of processes before making changes, running or creating specific objects in the system. They are defined in advance and attached to specific models based on certain constraints.

Use cases¶

Preventing accidental deletion of critical data by requiring manager approval before deletion jobs run.
Requiring security team sign-off before enabling network changes in production.
Ensuring multiple stakeholders approve large-scale bulk edits.
Mandating peer review for scheduled jobs that affect multiple systems.

Involving Scheduled Job Approval¶

The Workflow Architect defines the workflow definition.
An Object Operator submits a job for approval. See Running Jobs Via the Web UI or Scheduling via the UI. If an approval workflow definition exists, the approval workflow is created automatically.
The Approver(s) review and approve the job.
Once all required approvals are obtained, the job is automatically placed in the execution queue.

Model Reference¶

---
title: Approval Workflow Entity Relationship Diagram
---
erDiagram
    "extras.ApprovalWorkflowDefinition" {
        string name
        ContentType model_content_type FK
        json model_constraints
        int priority
    }
    "extras.ApprovalWorkflowStageDefinition" {
        ApprovalWorkflowDefinition approval_workflow_definition FK
        int weight
        string name
        int min_approvers
        string denial_message
        Group approver_group FK
    }
    "extras.ApprovalWorkflow" {
        ApprovalWorkflowDefinition approval_workflow_definition FK
        GenericForeignKey object_under_review FK
        ContentType object_under_review_content_type FK
        uuid object_under_review_object_id
        choices current_state
        datetime decision_date
        User user FK
        string user_name
    }
    "extras.ApprovalWorkflowStage" {
        ApprovalWorkflow approval_workflow FK
        ApprovalWorkflowStageDefinition approval_workflow_stage_definition FK
        choices state
        datetime decision_date
    }
    "extras.ApprovalWorkflowStageResponse" {
        ApprovalWorkflowStage approval_workflow_stage FK
        User user FK
        string comments
        choices state
    }

    "contenttypes.ContentType"[ContentType] {}
    "users.User"[User] {}
    "users.Group"[Group] {}
    "models.GenericForeignKey"[GenericForeignKey] {}

    "extras.ApprovalWorkflowDefinition" }o--|| "contenttypes.ContentType": "applies to model"
    "extras.ApprovalWorkflowDefinition" ||--o{ "extras.ApprovalWorkflowStageDefinition": "defines stages"
    "extras.ApprovalWorkflowStageDefinition" }o--|| "users.Group": "approver group"
    "extras.ApprovalWorkflowDefinition" ||--o{ "extras.ApprovalWorkflow": "creates instances"
    "extras.ApprovalWorkflow" }o--|| "models.GenericForeignKey": "object under review"
    "extras.ApprovalWorkflow" ||--o{ "extras.ApprovalWorkflowStage": "has stages"
    "extras.ApprovalWorkflowStage" ||--o{ "extras.ApprovalWorkflowStageResponse": "has responses"
    "extras.ApprovalWorkflowStageResponse" }o--|| "users.User": "submitted by"

ApprovalWorkflowDefinition¶

The template for a workflow, specifying which model(s) it applies to, any constraints, and the ordered list of stages. Represents a reusable definition of an approval workflow.

Constraints¶

Constraints define when a workflow definition should apply to a particular model instance.

Constraints are stored as a dictionary of field lookups → values (e.g. {"approval_required": True}).
Any valid Django ORM lookup can be used (e.g. {"name__in": ["ExampleDryRunJob", "Example Job of Everything", "Export Object List"]}, {"job_model__name__icontains": "Export"}, {"total_run_count__gte": 10}), since constraints are passed directly into .filter(**constraints).
If the instance matches the constraints, the workflow applies.
If no constraints are defined, the workflow applies to all instances of the model.

Priority¶

When multiple workflow definitions exist for the same model, only one will apply to any given object under review. The workflow with the lowest priority value (i.e., highest priority) that matches the object’s constraints is selected.

Example 1: Specific scheduled job¶

Workflow Definition A:
- Model: Scheduled Job
- Constraints: {"job_model__name": "Bulk Delete Objects"}
- Priority: 10
Workflow Definition B:
- Model: Scheduled Job
- Constraints: none (applies to all scheduled jobs)
- Priority: 20

Result: If the object under review is the Bulk Delete Objects Scheduled Job, Workflow A applies (priority 10 wins). For all other scheduled jobs, Workflow B applies (priority 20).

ApprovalWorkflowStageDefinition¶

A single approval stage within a workflow definition, specifying the approver group and required number of approvers.

ApprovalWorkflow¶

A concrete instance of a workflow triggered for a specific object under review.

Automatically changes to Denied if any stage is denied.
Automatically changes to Approved if all stages are approved.
Calls object’s on_workflow_approved() or on_workflow_denied() when final state is reached.

ApprovalWorkflowStage¶

A concrete instance of stage within a workflow execution. Progresses from Pending → Approved/Denied.

Approves automatically when minimum approvals are met.
Denies immediately if any denial is submitted.
Triggers parent workflow state updates.

ApprovalWorkflowStageResponse¶

A single user's input on a specific stage - this may be an explicit decision (approve/deny) or simply a comment without a decision.

Saving a response can trigger stage and workflow state updates.

How-To Guides¶

Attach Workflow to a Model Instance¶

Workflows are automatically attached after creating, running, or updating an object that complies with the workflow model and constraints. Manual attachment is not available.

Using Approval Workflow via UI¶

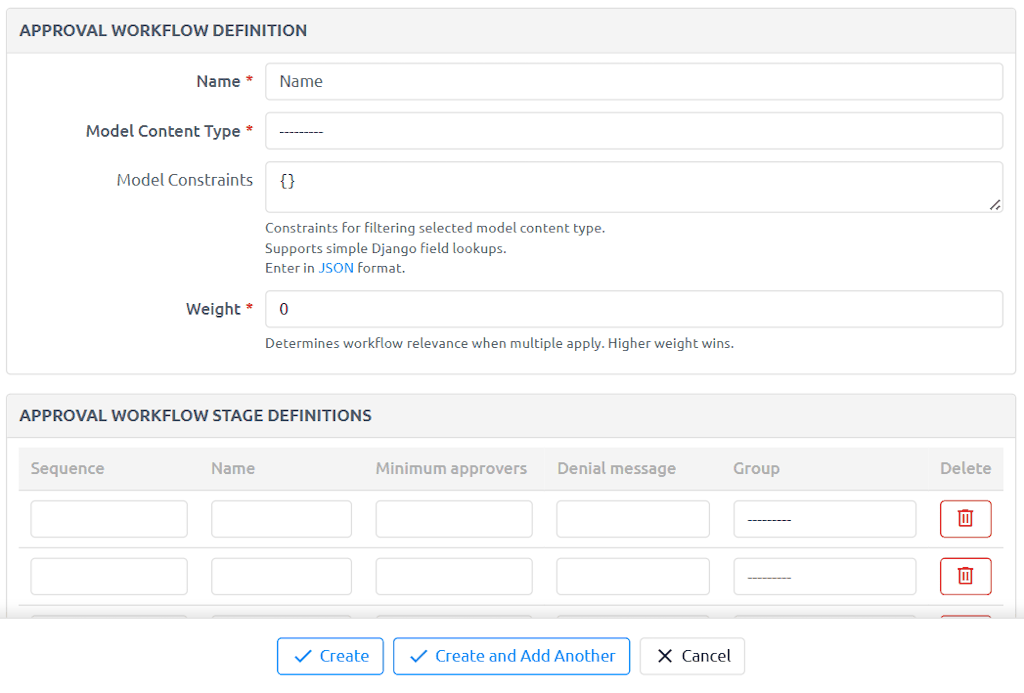

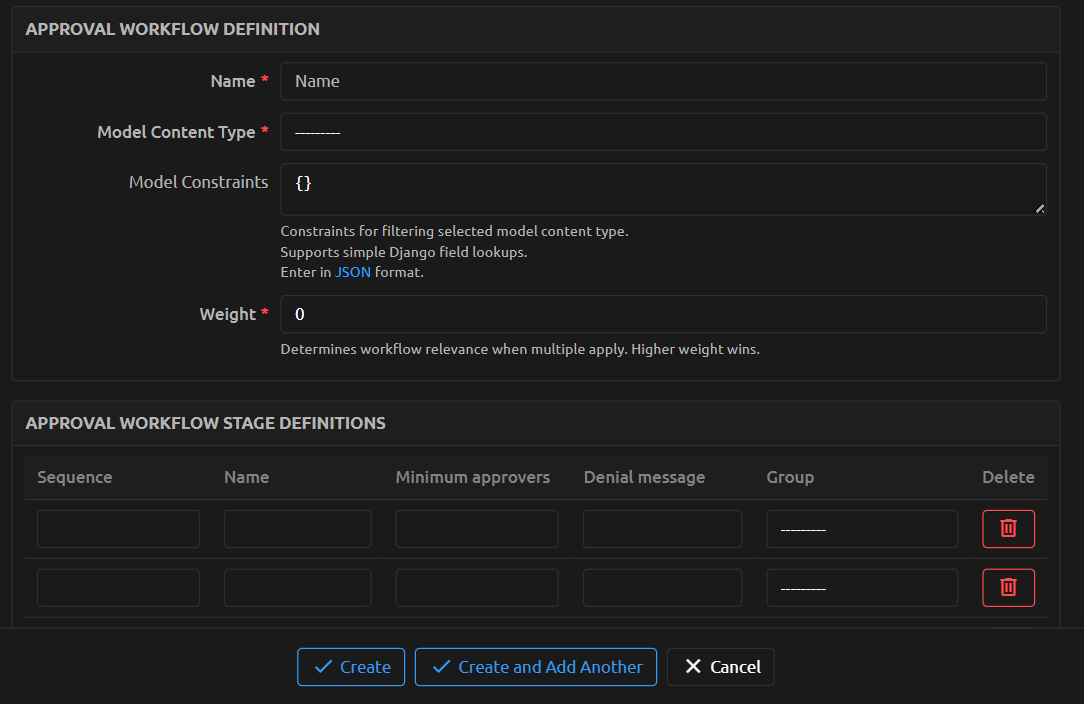

Create an Approval Workflow Definition with stages¶

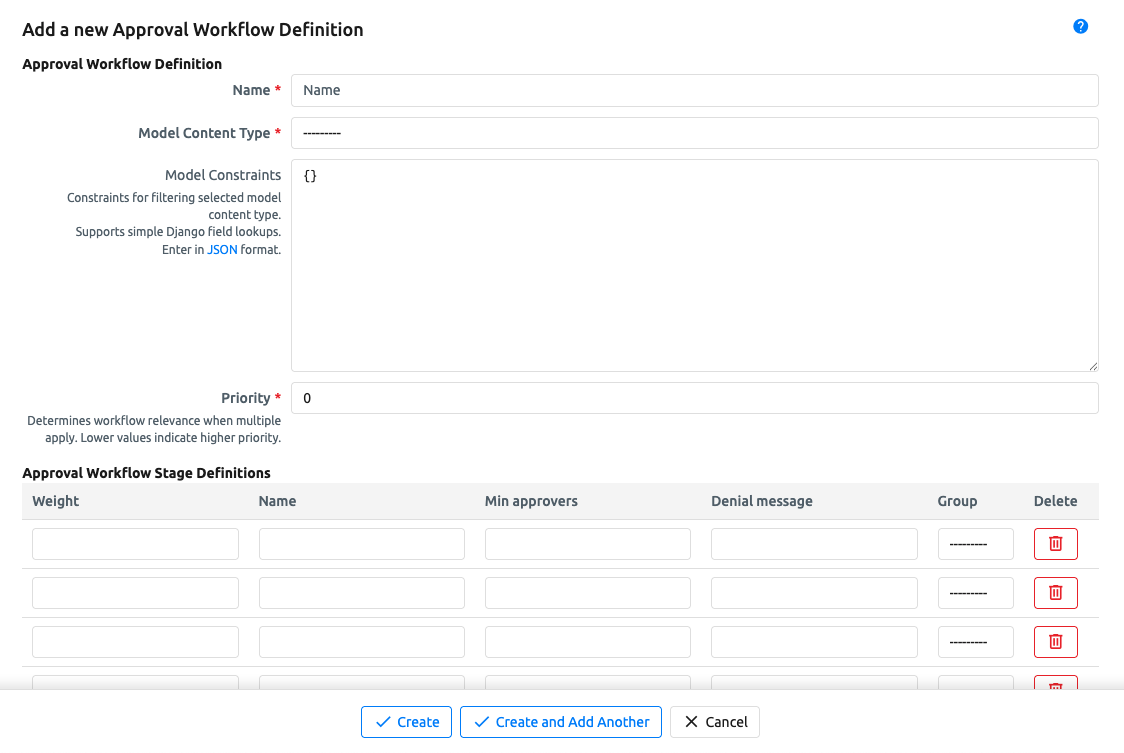

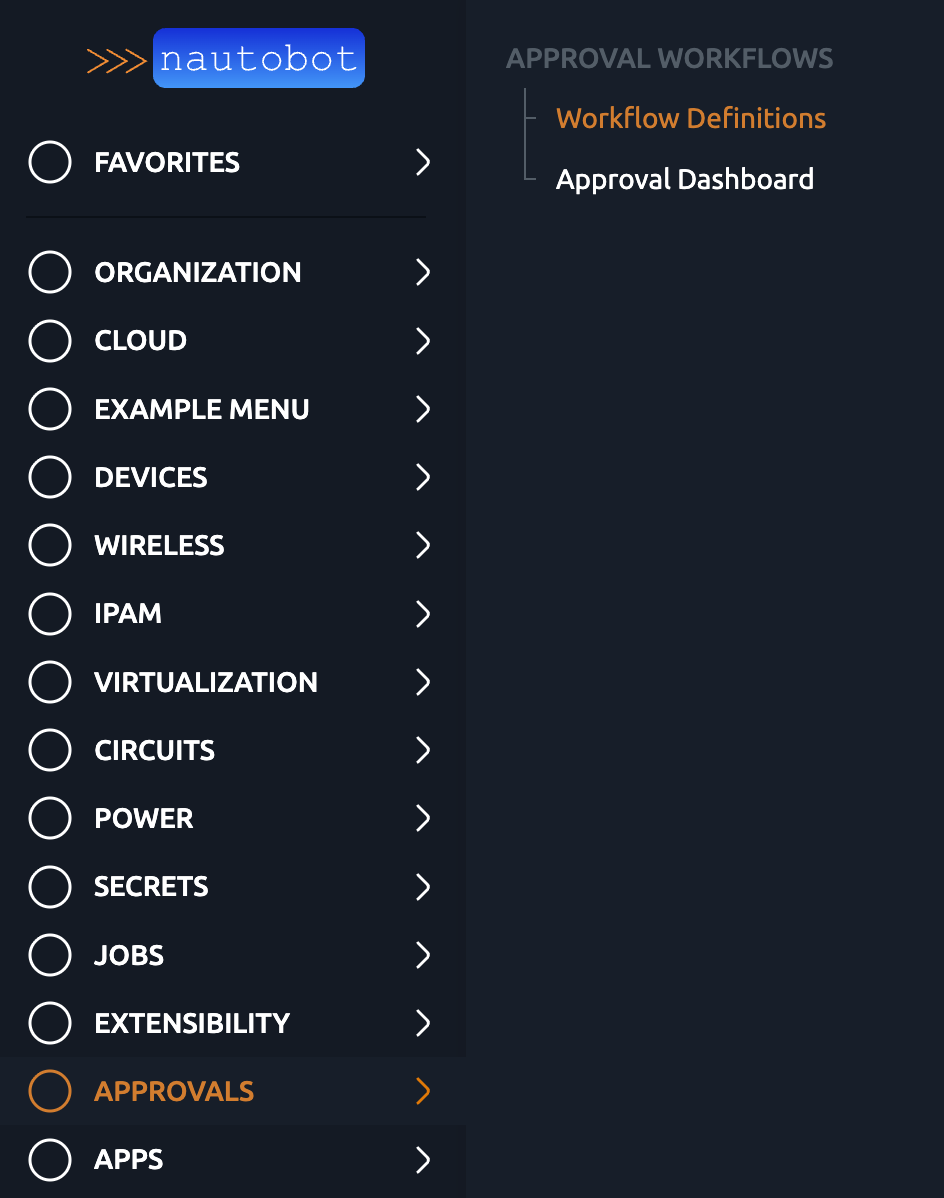

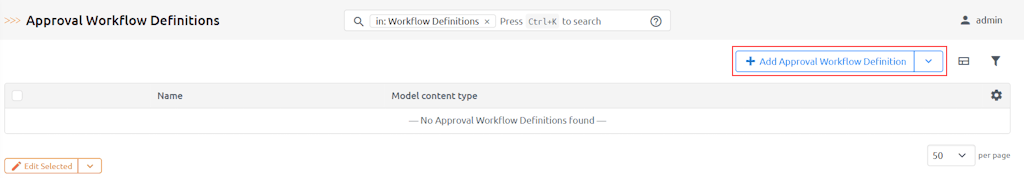

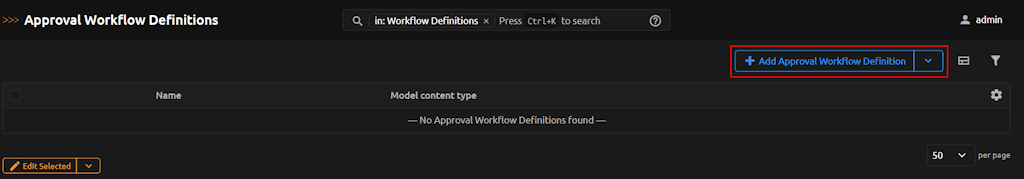

Go to Approvals > Workflow Definitions > Add Approval Workflow Definition.
Enter:
- Name (e.g., "Scheduled Job Run Workflow").
- Model (e.g., extras|scheduled job).
- Constraints (optional JSON filter, e.g., {"job_model__name": "Bulk Delete Objects"}, see Contraints).
- Priority (only one workflow definition (the highest, i.e. smallest priority one) will apply to any given object under review, see Priority).
In the Approval Workflow Stage Definitions section, define one or more stages:
- Stage Name (a descriptive name for the approval step (e.g., "Finance Approval", "Security Review", "Management Approval")).
- Weight (order in which the stage is executed).
- Minimum Approvers (number of approvals required).
- Approver Group (group of users eligible to approve)
- Denial Message (optional message shown if denied).

Approve or Deny a Stage¶

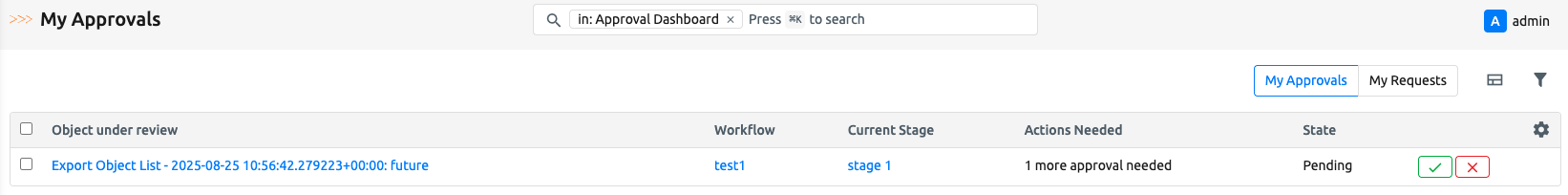

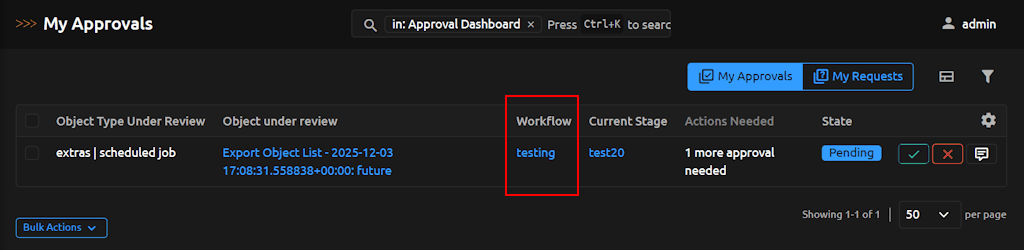

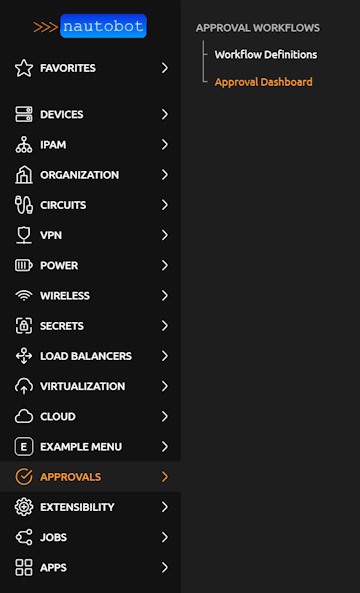

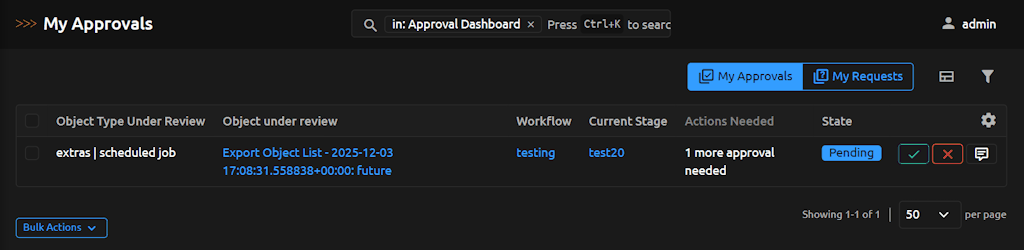

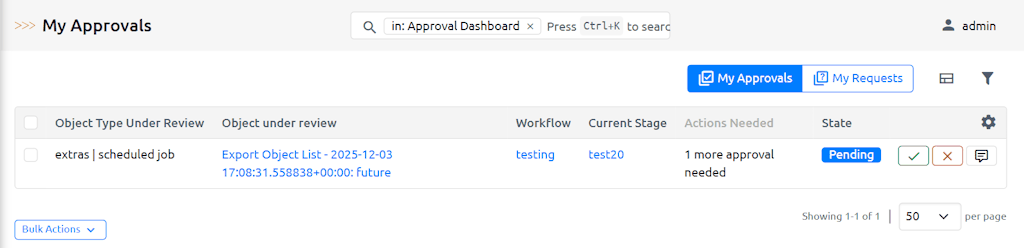

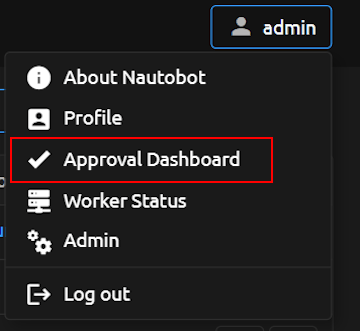

Go to Approvals > Approval Dashboard or on the right User dropdown menu > Approval Dashboard and select the My Approvals tab.
Locate the relevant object under review in the table. The table displays:
- Object under review - Linked to the object’s detail view.
- Workflow - Name of the workflow definition (linked to the workflow detail view).
- Current Stage - Stage awaiting action.
- Actions Needed - Remaining approvals required.
- State - Current workflow state.
To approve the stage, select the button.
To deny the stage, select the button.

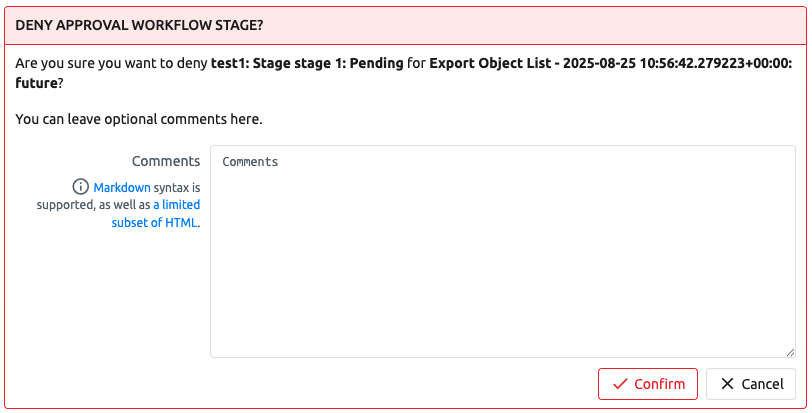

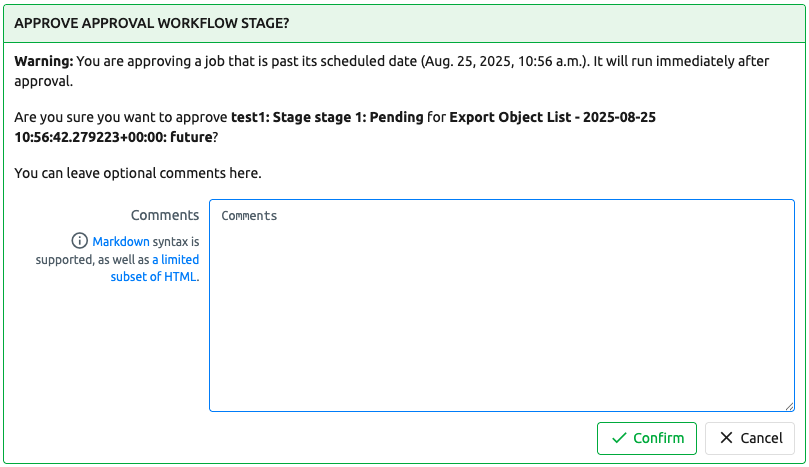

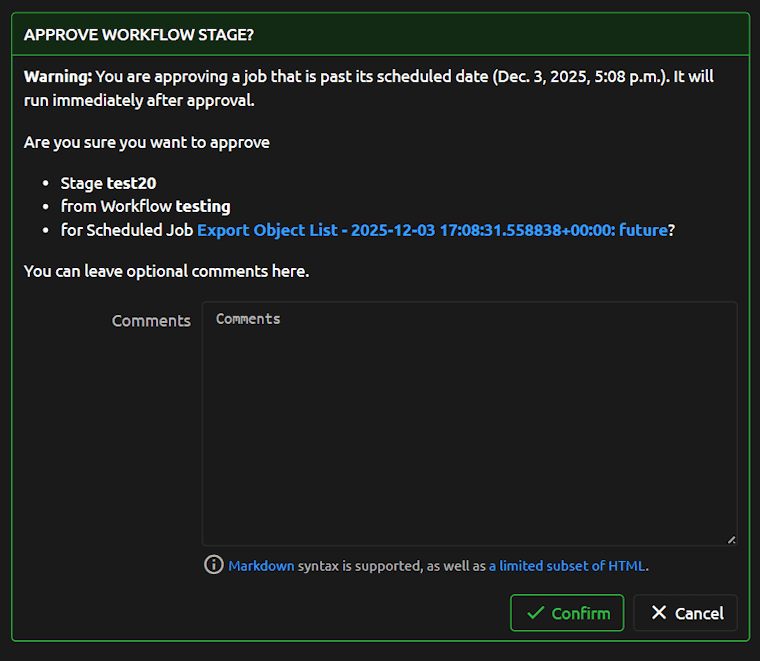

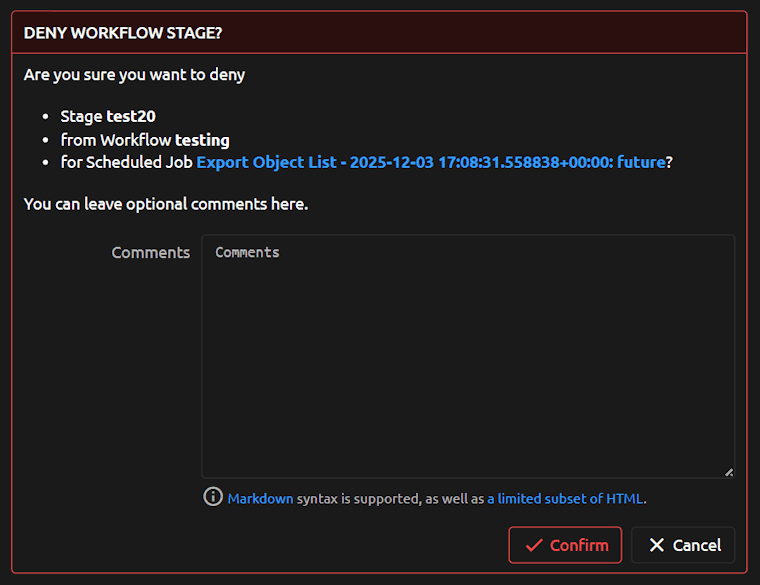

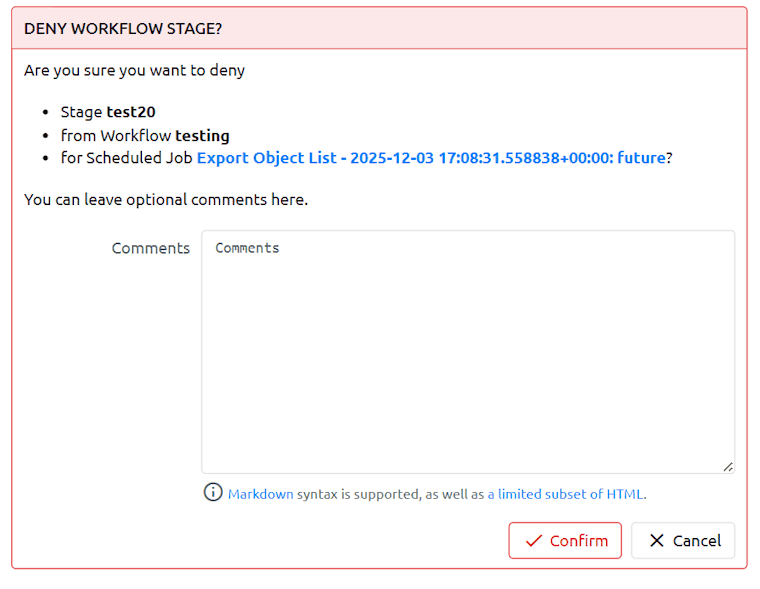

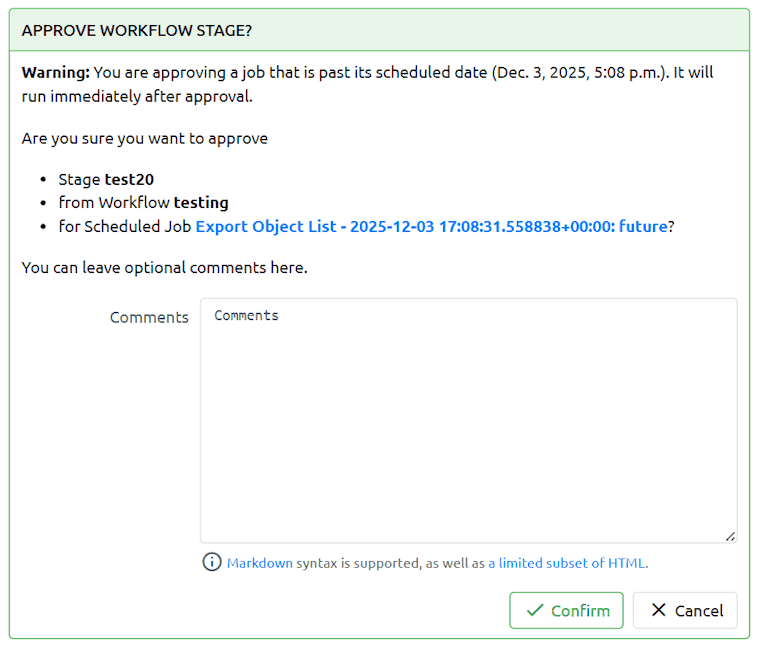

After the decision action, a confirmation window appears where a comment can be added before confirming the action.

View My Requests¶

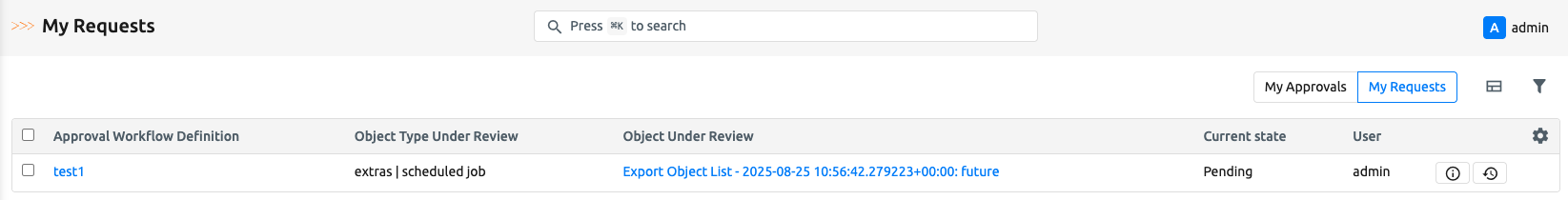

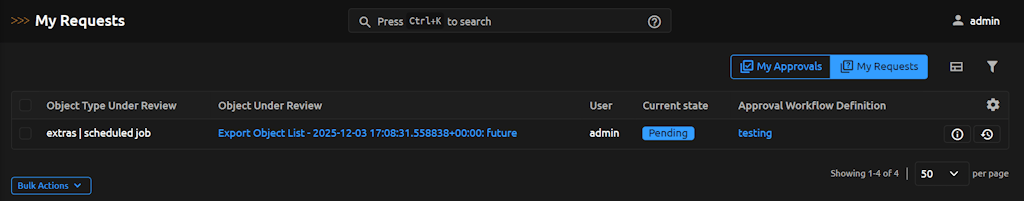

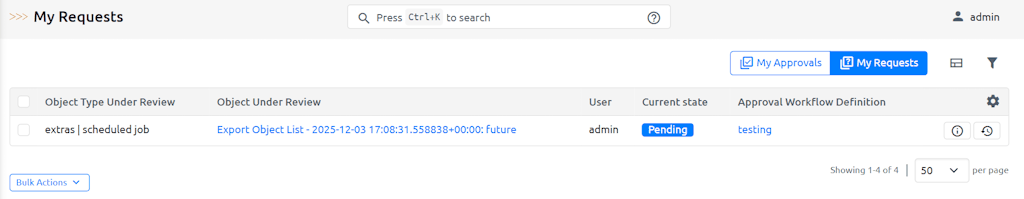

Open the Approval Dashboard and select the My Requests tab.
The table lists all workflows initiated by the current user. The columns include:
- Approval Workflow Definition - Linked to the workflow definition.
- Object Type Under Review - Model and object type for the request.
- Object Under Review - Linked to the specific object awaiting or having received approval.
- Current State - State of the workflow (e.g., Pending, Approved, Denied).
- User - Requesting user.

Check Workflow State¶

There are 2 ways to check the state of a workflow, depending on whether user is a object operator/approver or a workflow architect.

Check State as Object Operator/Approver**¶

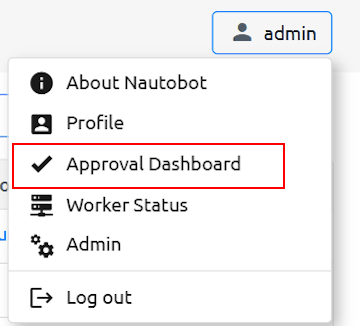

Go to Approvals > Approval Dashboard or on the right User dropdown menu > Approval Dashboard
Select My Approvals or My Requests tab.

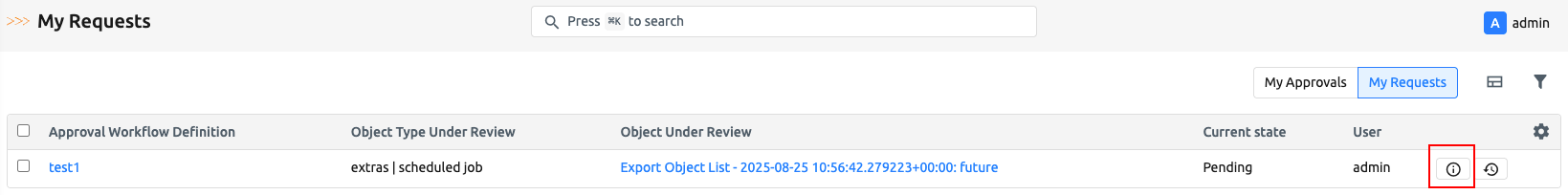

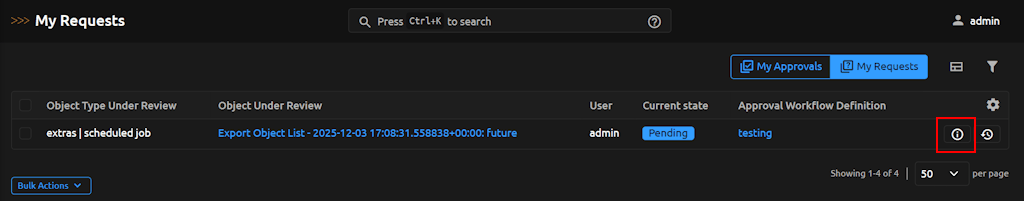

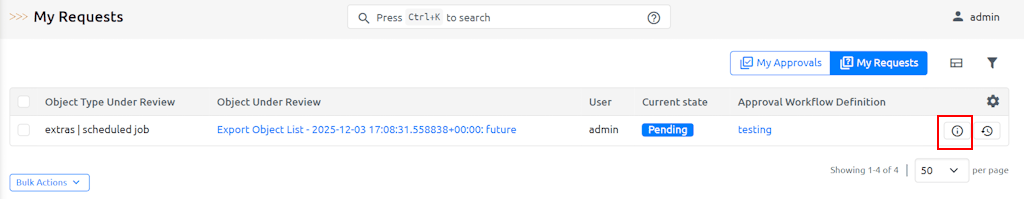

Click the workflow (in My Approvals view) or details button (in My Requests view) for specific workflow.

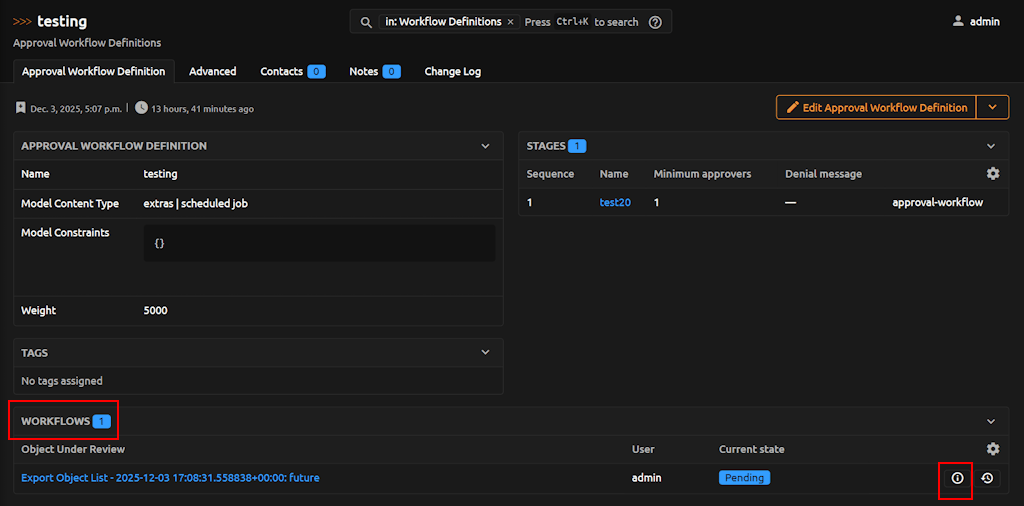

Check State as Workflow Architect**¶

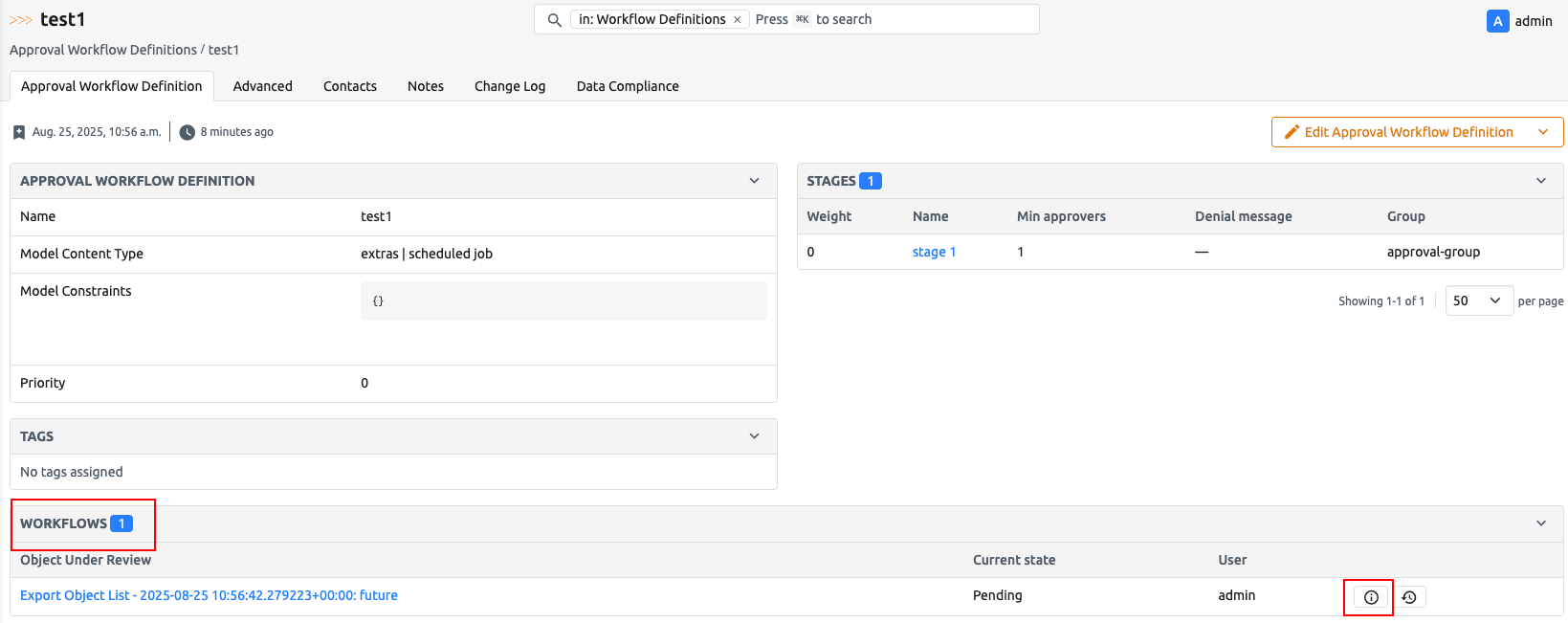

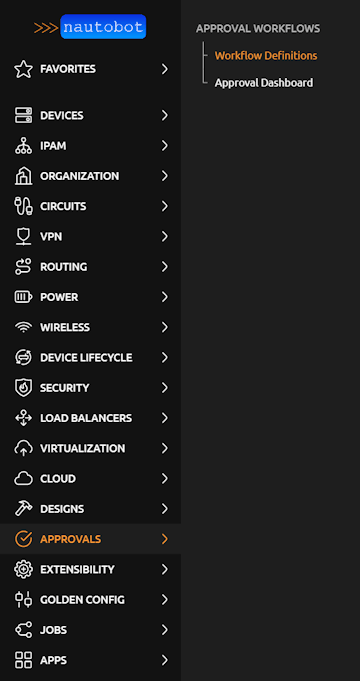

Go to Approvals > Approval Workflow Definition

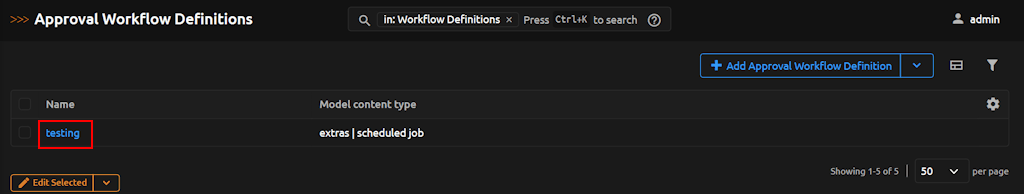

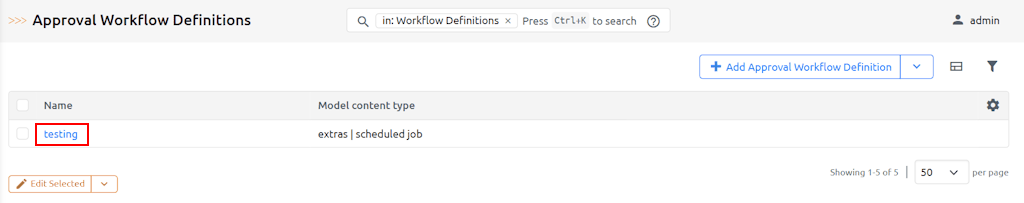

Select the required workflow definition.

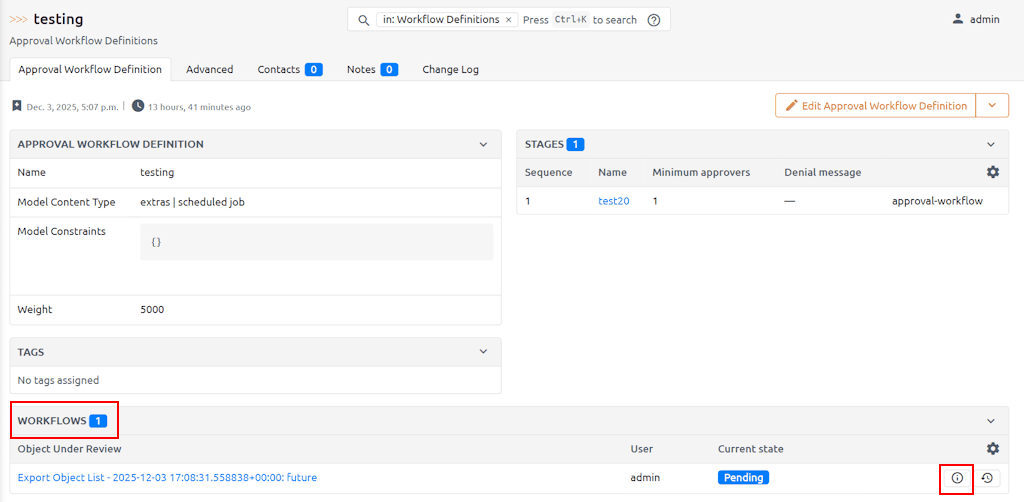

In the Workflows list, all workflows for this definition are displayed.
Select the details button for a specific workflow.

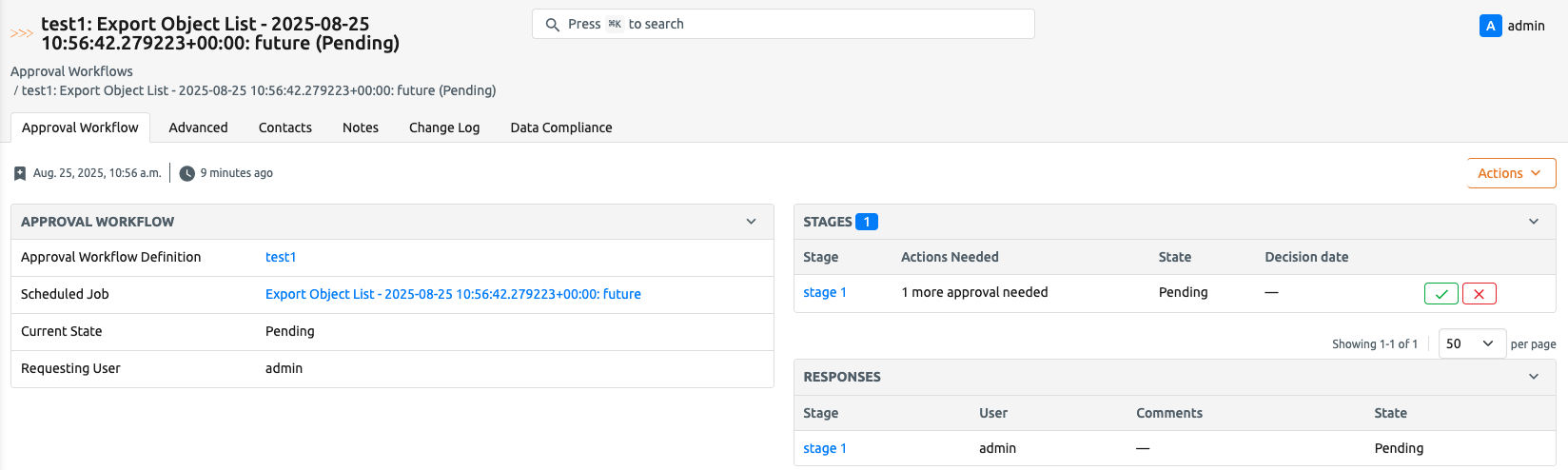

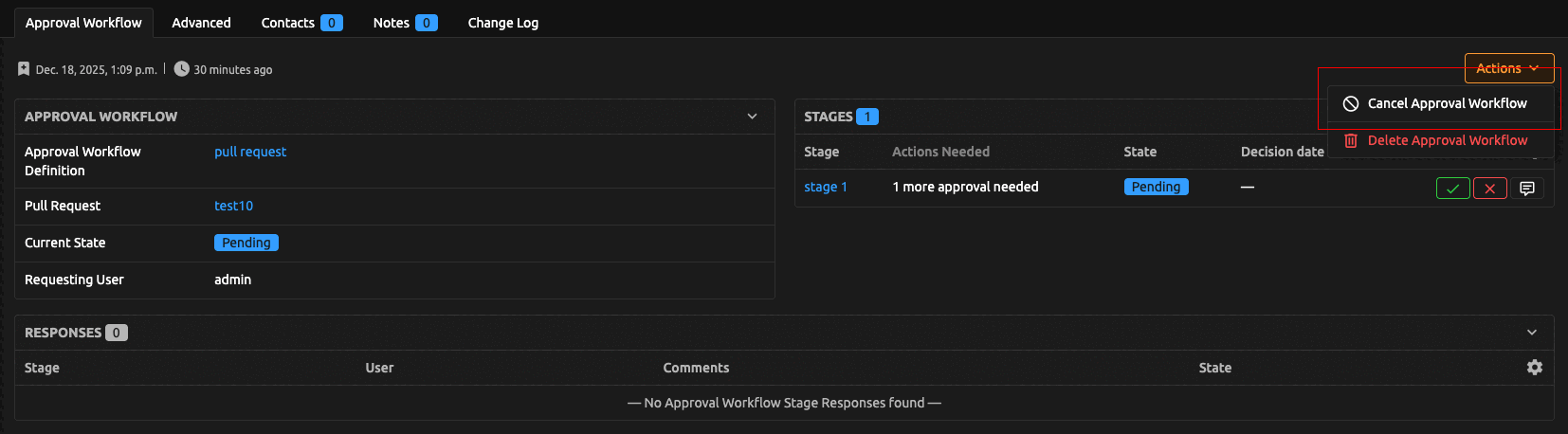

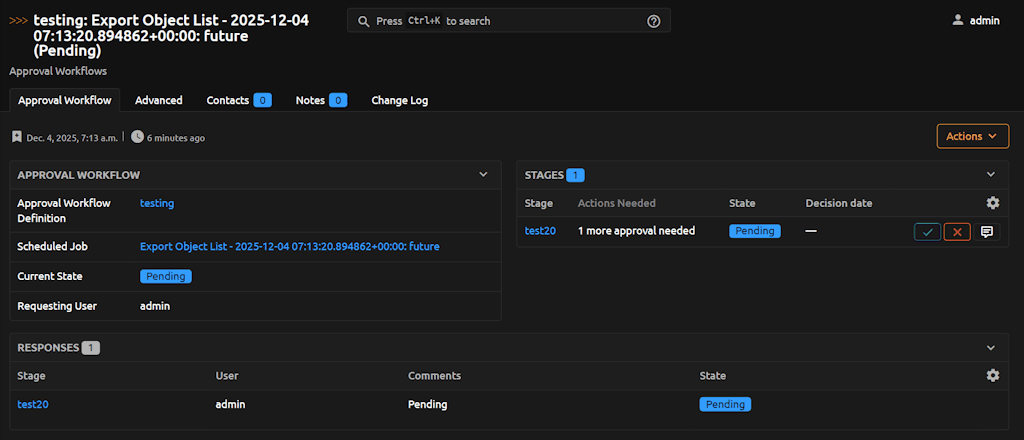

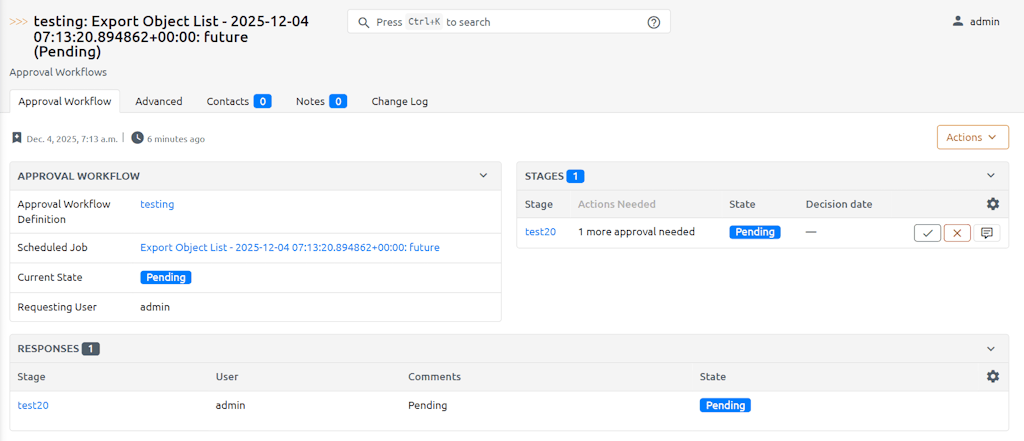

View Approval Workflow details view contains:
- Approval Workflow panel:
  - Approval Workflow Definition - Linked definition for the workflow.
  - Object Under Review - Object subject to approval.
  - Current State - Workflow status.
  - Approval Date - Date of final decision.
  - Requesting User - User who initiated the workflow.
- Stages panel:
  - Stage - Stage name.
  - Actions Needed - Remaining approvals required.
  - State - Current stage status.
  - Decision Date - Date of stage decision.
- Responses panel:
  - Stage - Stage name.
  - User - Responding user.
  - Comments - Submitted comment.
  - State - Decision state (Pending, Approved, Denied).

Using Approval Workflow via API¶

Approve/Deny a Stage¶

curl -X POST \
-H "Authorization: Token $TOKEN" \
-H "Content-Type: application/json" \
-H "Accept: application/json; version=1.3; indent=4" \
-d '{"comment": "Approved for deployment"}' \
http://nautobot/api/extras/approval-workflow-stages/$APPROVAL_WORKFLOW_STAGE_ID/approve

curl -X POST \
-H "Authorization: Token $TOKEN" \
-H "Content-Type: application/json" \
-H "Accept: application/json; version=1.3; indent=4" \
-d '{"comment": "Deny reason"}' \
http://nautobot/api/extras/approval-workflow-stages/$APPROVAL_WORKFLOW_STAGE_ID/deny

List Pending/Done Approvals¶

Retrieves a list of approval workflow stages filtered by their status relative to the current user using the pending_my_approvals query parameter on the standard list endpoint:

?pending_my_approvals=true — Returns stages pending approval by the current user.

curl -X GET \
-H "Authorization: Token $TOKEN" \
-H "Accept: application/json; version=1.3; indent=4" \
http://nautobot/api/extras/approval-workflow-stages/?pending_my_approvals=true

?pending_my_approvals=false — Returns stages the current user has already approved/denied.

curl -X GET \
-H "Authorization: Token $TOKEN" \
-H "Accept: application/json; version=1.3; indent=4" \
http://nautobot/api/extras/approval-workflow-stages/?pending_my_approvals=false

If the parameter is omitted, all stages are returned regardless of approval status.

Permissions by Persona¶

Object Operator¶

Responsible for creating, updating, or running objects, which may trigger an approval workflow. Cannot approve workflows.

Required permissions:

extras.view_approvalworkflow - to view created approval workflows after creating, updating, or running an object.
extras.view_approvalworkflowstage - to view the My Requests tab on the Dashboard.
extras.view_approvalworkflowstageresponse - to view responses for each stage.

Approver¶

Responsible for reviewing and making decisions on approval workflow stages assigned to them. Must be a member of one or more approver groups (see Approval Groups).

Required permissions:

All permissions required by the Object Operator role.
Additional permissions:
- extras.view_approvalworkflowstage
- extras.change_approvalworkflowstage - to view the My Approvals tab on the Dashboard and take actions such as approve or deny.

Workflow Architect¶

Responsible for designing, managing, and configuring approval workflow definitions and their stages.

Required permissions:

All permissions required by the Object Operator role.
Additional permissions:
- extras.view/add/change/delete_approvalworkflowdefinition
- extras.view/add/change/delete_approvalworkflowstagedefinition

Approver Groups¶

Approval actions are controlled not only by permissions but also by approver group membership defined in each workflow definition:

Each Approval Workflow Stage Definition specifies an Approver Group (user group authorized to act on that stage, how to create user group via the admin UI check here).
A user must belong to the stage’s approver group to:
- See the stage in the My Approvals tab.
- Perform approval or denial actions.
If the user has the required permissions but is not a member of the approver group, the stage will not appear in their dashboard and no actions will be available.

Upgrade Considerations¶

From Nautobot 2.x¶

If upgrading from Nautobot 2.x, the management command check_job_approval_status is available to identify Jobs and Scheduled Jobs that have approval_required=True.

Running the command doesn't approve/run/deny jobs, it just identifies the ones that need such action to be performed as a separate step.
After running this command to identify the impacted Jobs, and completing the upgrade to Nautobot 3.x, you'll want to define appropriate approval workflows to apply to those jobs.

Example: Running the command check_job_approval_status will provide similar output to:

Following jobs still have `approval_required=True`.
These jobs will no longer trigger approval automatically.
After upgrading to Nautobot 3.x, you should add an approval workflow definition(s) covering these jobs.
Refer to the documentation: https://docs.nautobot.com/projects/core/en/next/user-guide/platform-functionality/approval-workflow/
Affected jobs (Names):
    - ExampleDryRunJob
    - Example Job of Everything
    - Export Object List

User can create an ApprovalWorkflowDefinition using constraints such as {"job_model__name__in": ["ExampleDryRunJob", "Example Job of Everything", "Export Object List"]}. See Create an Approval Workflow Definition with stages
However, constraints today are limited to what can be expressed as a single dictionary of field lookups. More complex logic (e.g., name=A OR (name=B AND status=active)) is not possible yet.
