Data Compliance Guide

Overview

The Data Compliance feature audits any object within Nautobot according to a set of rules that you can define programmatically or from the built-in data validation rules (e.g. Min/Max, Regex, Required, or Unique rules). Rather than only checking for adherence to specified rules during the creation or modification of objects, Data Compliance will run a job that produces compliance statuses across existing objects (such as all pre-existing devices).

This is ideal for implementing some kind of business logic or standardization requirement into Nautobot after data is already populated within the platform. Data Compliance will allow you to identify valid or invalid existing objects based on your specified data compliance and validation rules. Additionally, Data Compliance enables the ability to implement more complex rules using the full power of programming logic, in addition to the built-in data validation ones.

DataComplianceRule Class

The DataComplianceRule class takes advantage of the CustomValidator workflow. The basic idea is that during an object's full_clean method call, any DataComplianceRule classes are called to run their clean method. That method calls the object class's audit method, which you should implement. The expected return value of the audit method is None; however, any issues found during the audit method should raise a ComplianceError. Multiple key-value pairs can be passed in to a ComplianceError. The data within a ComplianceError is used by the clean method to create DataCompliance objects which relate the given object to the DataComplianceRule class, the attribute checked, and the message passed into the ComplianceError as to why the attribute is not valid. If there are no ComplianceErrors raised within the audit method, any existing DataCompliance objects for the given object and DataComplianceRule pair are marked as valid.

---
title: Data Compliance WorkFlow Diagram
---
flowchart LR
    A["Object"] -- full_clean() invoked --> B("Data Compliance Rules")
    B -- clean() methods invoked --> C["Data Compliance Rules"]
    C -- audit() method invoked --> D["audit() return value"]
    D -- None --> E["Object is valid"]
    D -- ComplianceError --> F["Object is invalid"]
    E --> G["Mark existing DataCompliance objects valid"]
    F --> H["Generate new DataCompliance objects for invalid attributes"]

DataCompliance objects are only created for the attribute __all__ (to represent the overall status) and attributes that have at some point been invalid. As an example, suppose there is a DataComplianceRule that checks the location_type and status attributes of a Location object named Location A. When this rule is run for Location A, both attributes are valid, so the only DataCompliance object created would be for __all__ with a value of valid. Then, suppose Location A's location_type attribute is edited in a way that makes it invalid. A new DataCompliance object would be created for location_type stating why it is invalid, and the __all__ object would be updated to now be invalid. Then, if location_type is edited again to bring it back into compliance, the DataCompliance objects for location_type and __all__ would be updated to be valid.

Any DataComplianceRule class can have a name defined to provide a friendly name to be shown within in the UI. The enforce attribute can also be set to decide whether or not the ComplianceError caught in the audit method is raised again to the clean method, acting like a ValidationError wherever the original full_clean was called. Setting enforce to True changes the DataComplianceRule from a passive validation of data to an active enforcement of the logic within it.

Note

Rules created using the DataComplianceRule class automatically re-run and re-validate whenever the target object is modified and saved. They can also be run manually using the RunRegisteredDataComplianceRules job. However, DataCompliance objects generated by the Run user created validation rules? option (enabling this option will validate relevant objects against all the user created validation rules, which are RegularExpressionValidationRule, MinMaxValidationRule, RequiredValidationRule, and UniqueValidationRule) in the job do not update or re-validate automatically. They will only refresh if the job is explicitly run again. Suppose a user wants to ensure that the asn value for all Location objects is always between 1 and 1000. To enforce this, they create a MinMaxValidationRule with these constraints. When the user manually runs the RunRegisteredDataComplianceRules job with the Run user created validation rules? option enabled, the system identifies any Location objects that have an asn value outside the allowed range. It then generates Data Compliance objects to flag these violations. If the user corrects the invalid asn values in the Location objects, the previously generated Data Compliance objects will not be automatically updated to reflect the fixes. To mark them as valid, the user must manually re-run the RunRegisteredDataComplianceRules job again with the Run user created validation rules? option enabled.

How to Use

Step 1. Create Data Compliance Rules

The first step is to create your desired data compliance rules following whatever programming logic you want. These compliance rules should be included as methods within one or more classes that implement DataComplianceRule.

There are two options for where to include these data compliance rule classes:

  1. In a remote Git repository (recommended)
  2. In the app's code

Writing Data Compliance Rules in a Remote Git Repository

A Git repository can be configured to add the data compliance rules context to store DataComplianceRule classes in source control. The app looks for a folder in your repo called custom_validators, and any Python files within that folder containing classes that implement DataComplianceRule will be imported. No code within the app itself needs to be added, changed, or modified.

Below is a template data compliance rule class that would be stored in custom_validators/my_data_compliance_rules.py in a remote Git repository:

import re
from nautobot.apps.models import DataComplianceRule, ComplianceError

class DesiredClassName(DataComplianceRule):
    model = "desired.model" # Ex: 'dcim.device'
    enforce = False # True/False enforce flag

    def audit_desired_name_one(self):
        # Your logic to determine if this function has succeeded or failed
        if self.context["object"].desired_attribute == "undesired_value":
            raise ComplianceError({"desired_attribute": "Desired message why it's invalid."})

    def audit_desired_name_two(self):
        # Your logic to determine if this function has succeeded or failed
        if "undesired_value" in self.context["object"].desired_attribute:
            raise ComplianceError({"desired_attribute": "Desired message why it's invalid."})

    def audit(self):
        messages = {}
        for fn in [self.audit_desired_name_one, self.audit_desired_name_two]: # Add audit functions here
            try:
                fn()
            except ComplianceError as ex:
                messages.update(ex.message_dict)
        if messages:
            raise ComplianceError(messages)

After your Git repository is configured and rule class(es) written, add the repository to Nautobot from Extensibility -> Data Sources -> Git Repositories. Select data compliance rules for the 'provides' field. This will add/sync your repository and automatically find your data compliance rule classes.

Writing Data Compliance Rules within a Custom App

To write data compliance rules within your own Custom App, add the classes that implement DataComplianceRule within <nautobot-app-custom-app>/<nautobot_custom_app>/custom_validators.py.

Below is a template data compliance rule class in custom_validators/custom_validators.py with the app's code:

...

class DesiredClassName(DataComplianceRule):
    model = "desired.model" # Ex: 'dcim.device'
    enforce = False # True/False enforce flag

    def audit_desired_name_one(self):
        # Your logic to determine if this function has succeeded or failed
        if self.context["object"].desired_attribute == "undesired_value":
            raise ComplianceError({"desired_attribute": "Desired message why it's invalid."})

    def audit_desired_name_two(self):
        # Your logic to determine if this function has succeeded or failed
        if "undesired_value" in self.context["object"].desired_attribute:
            raise ComplianceError({"desired_attribute": "Desired message why it's invalid."})

    def audit(self):
        messages = {}
        for fn in [self.audit_desired_name_one, self.audit_desired_name_two]: # Add audit functions here
            try:
                fn()
            except ComplianceError as ex:
                messages.update(ex.message_dict)
        if messages:
            raise ComplianceError(messages)

custom_validators = list(CustomValidatorIterator()) + [DesiredClassName]

Tip

Be sure to modify the existing custom_validators variable by casting CustomValidatorIterator() to a list and then appending the classes to it.

Step 2. Run the RunRegisteredDataComplianceRules Job

To run data compliance rules, go to Nautobot Jobs and start the RunRegisteredDataComplianceRules job. In the pre-job settings, you can choose specific DataComplianceRule classes to run. If you don’t select any, the job will run all registered rules by default.

This job executes the audit() method for the selected DataComplianceRule classes on demand. You can use it to run compliance rules for the first time on a set of objects or re-run rules after updating the compliance logic.

If you also want to generate compliance results for built-in and user-created validation rules, check the Run user created validation rules? option. This will apply all validation rules, regardless of whether they are currently enabled or disabled for the objects assigned to them.

This is especially useful when importing data into Nautobot using applications like Single Source of Truth. With this option, you can bring in data without being blocked by enabled built-in rules enforcing validation. After importing, you can then run this job to check whether the data follows the required standards and rules.

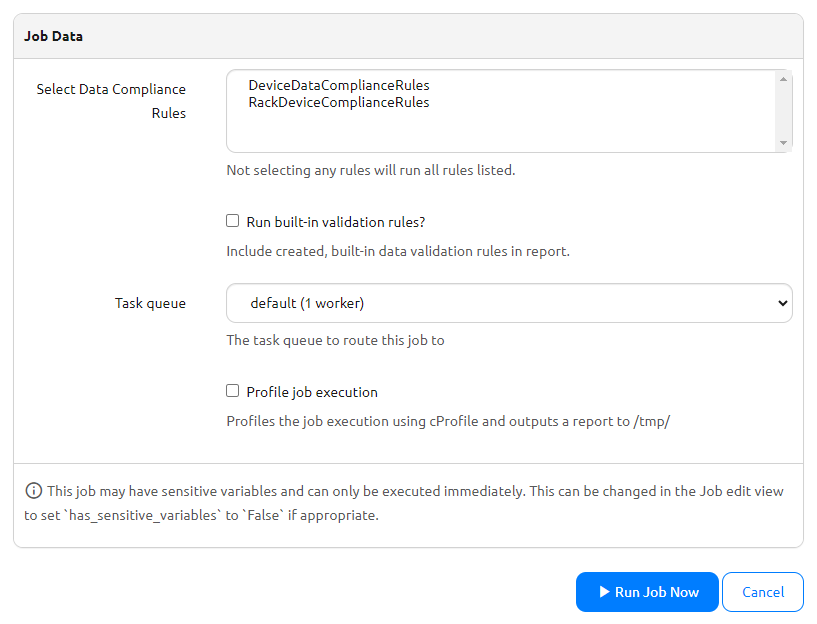

RunRegisteredDataComplianceRules Job

Step 3. Viewing Data Compliance Results

All data compliance result objects can be found on the navigation bar under Extensibility -> Data Validation Engine -> Data Compliance. This view lists all available data compliance results produced from the RunRegisteredDataComplianceRules job. You can add filters such as showing only invalid objects or only ones from a specific compliance rule class.

Additionally, the data_validation app automatically creates template extensions to add a Data Compliance tab to the detail view of all objects. This tab makes it easy to check an individual object's compliance with any applicable data compliance rules.

Example

Two data compliance rules will be created using two separate DataComplianceRule classes within a remote Git repository called dve-datacompliance-demo that check devices for the following: - audit_device_name_chars in DeviceDataComplianceRules - will mark a device invalid if the device name contains any special characters other than a dash (-), underscore (_), or period (.) - audit_device_rack in RackDeviceComplianceRules - will mark a device invalid if it is not assigned a rack

custom_validators/data_compliance_rules.py:

import re
from nautobot.apps.models import DataComplianceRule, ComplianceError

class DeviceDataComplianceRules(DataComplianceRule):
    model = "dcim.device"
    enforce = False

    # Checks if a device name contains any special characters other than a dash (-), underscore (_), or period (.) using regex
    def audit_device_name_chars(self):
        if not re.match("^[a-zA-Z0-9\-_.]+$", self.context["object"].name):
            raise ComplianceError({"name": "Device name contains unallowed special characters."})

    def audit(self):
        messages = {}
        for fn in [self.audit_device_name_chars]:
            try:
                fn()
            except ComplianceError as ex:
                messages.update(ex.message_dict)
        if messages:
            raise ComplianceError(messages)

class RackDeviceComplianceRules(DataComplianceRule):
    model = "dcim.device"
    enforce = False

    # Checks if a device is not assigned to a rack
    def audit_device_rack(self):
        if not self.context["object"].rack:
            raise ComplianceError({"rack": "Device should be assigned to a rack."})

    def audit(self):
        messages = {}
        for fn in [self.audit_device_rack]:
            try:
                fn()
            except ComplianceError as ex:
                messages.update(ex.message_dict)
        if messages:
            raise ComplianceError(messages)

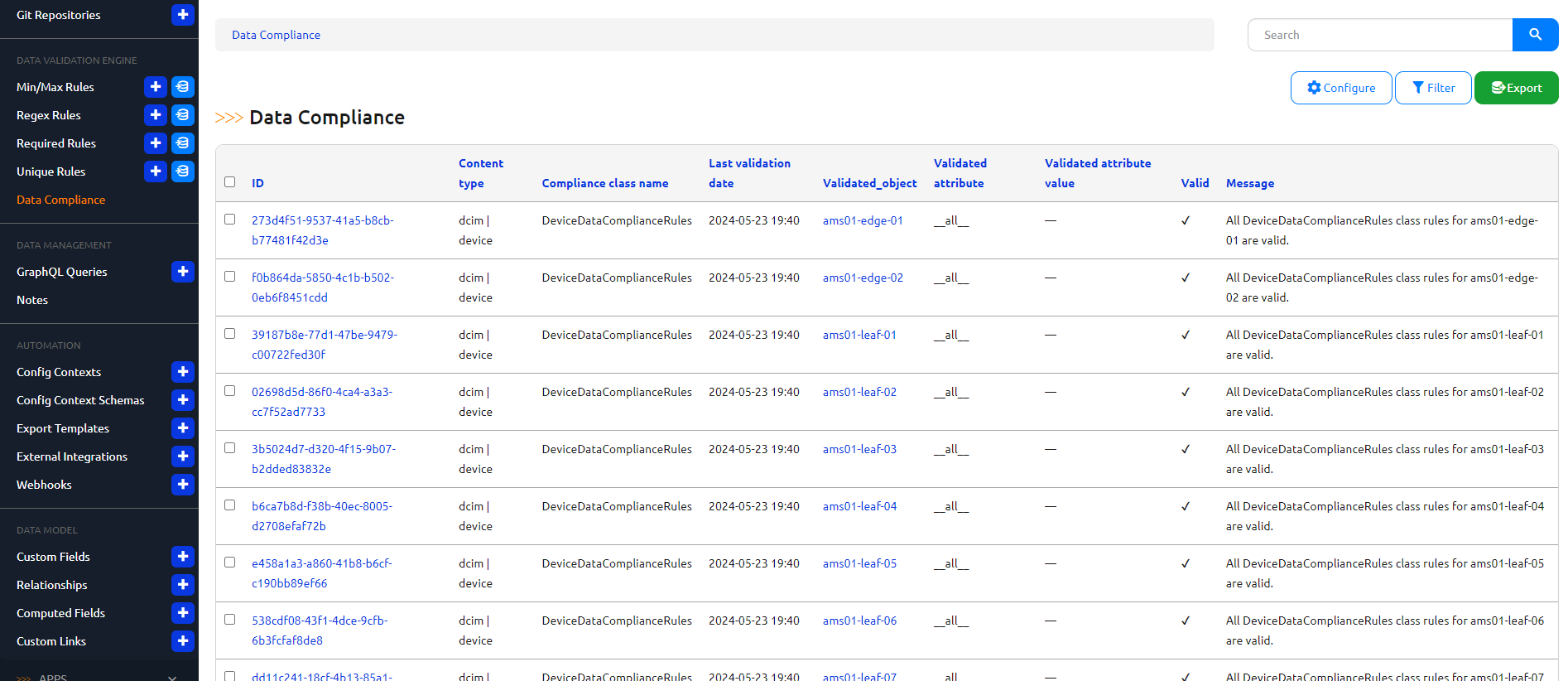

After syncing this repository as a Nautobot Git Repository and running the RunRegisteredDataComplianceRules job, the audit results from Data Compliance are shown:

Data Compliance Results

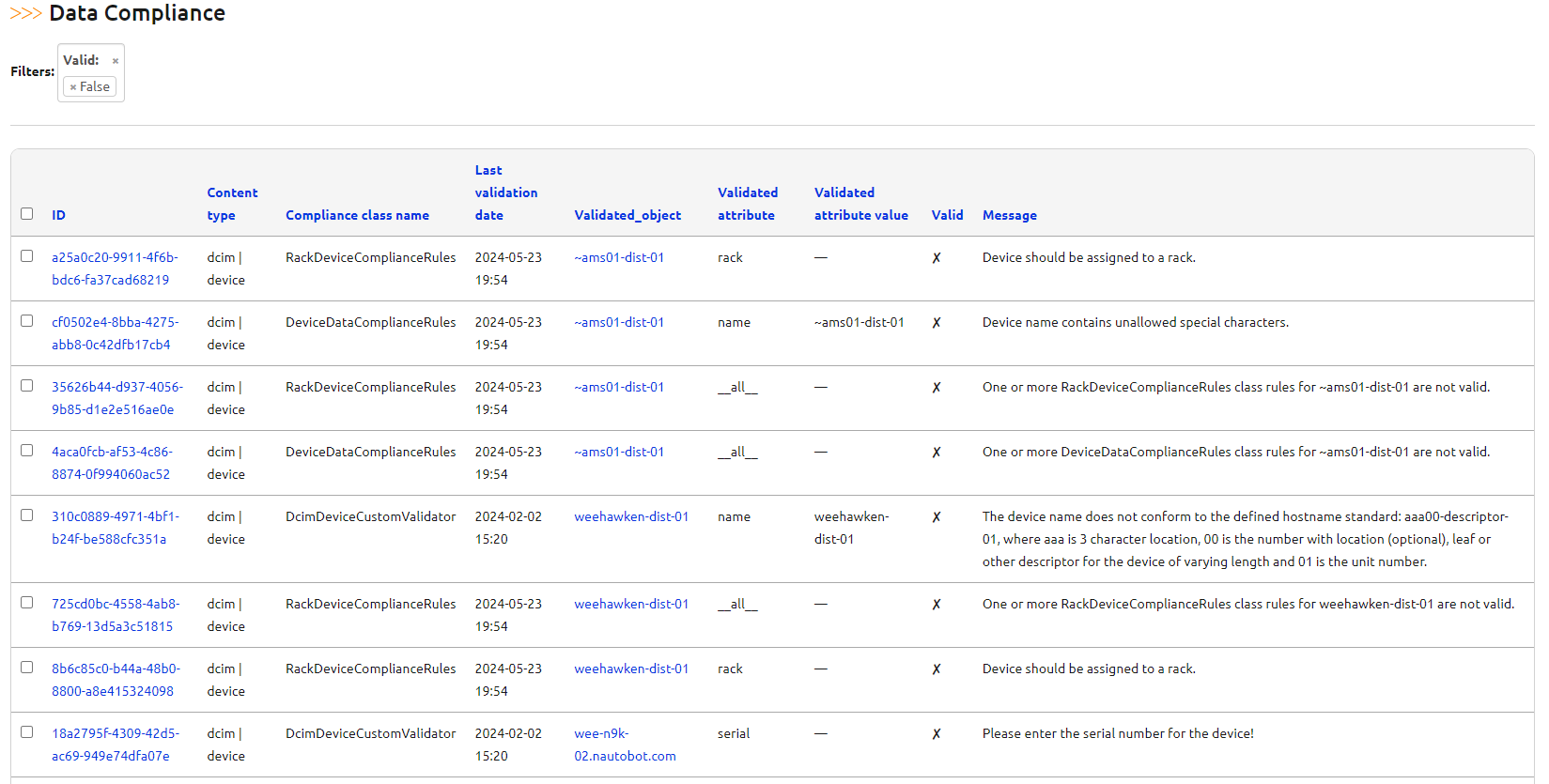

Filtering on devices that are out of compliance:

Data Compliance Filtered Results

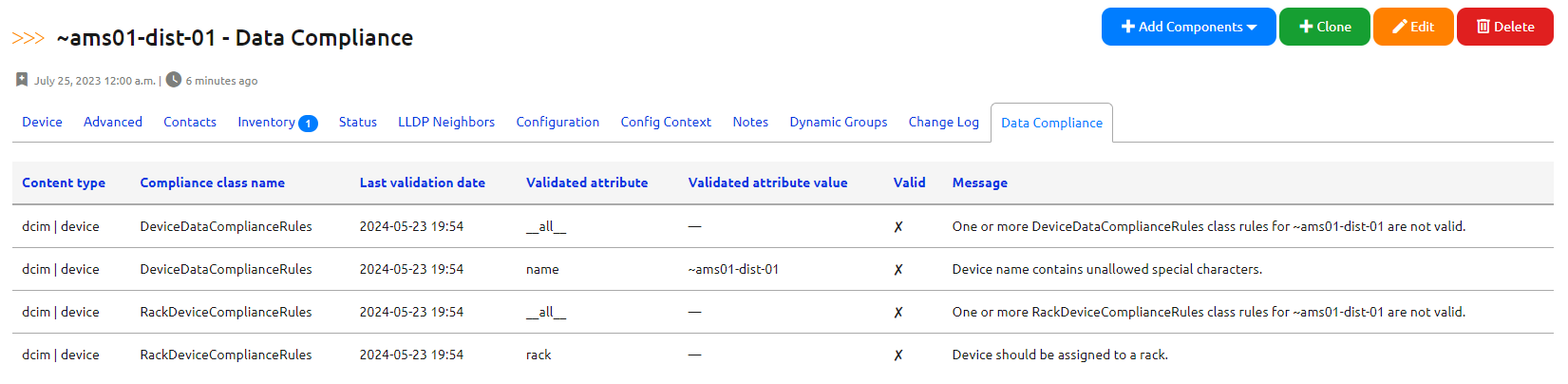

Drilling down on a specific device's Data Compliance tab:

Data Compliance Object Tab View - Non-Compliant

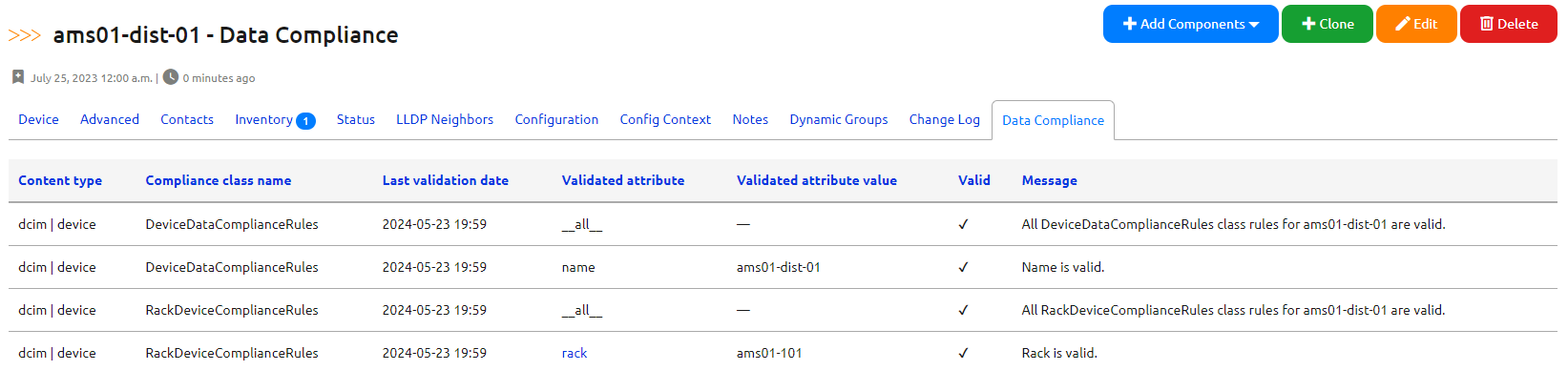

After editing the device to correct the non-compliance, it is automatically re-checked and is now valid & in-compliance:

Data Compliance Object Tab View - Compliant
