Monitoring Nautobot Instances

You can monitor the performance and usage of your Nautobot Instances through the Event History and Trends tabs located under the Data Insights heading in the left-hand navigation pane.

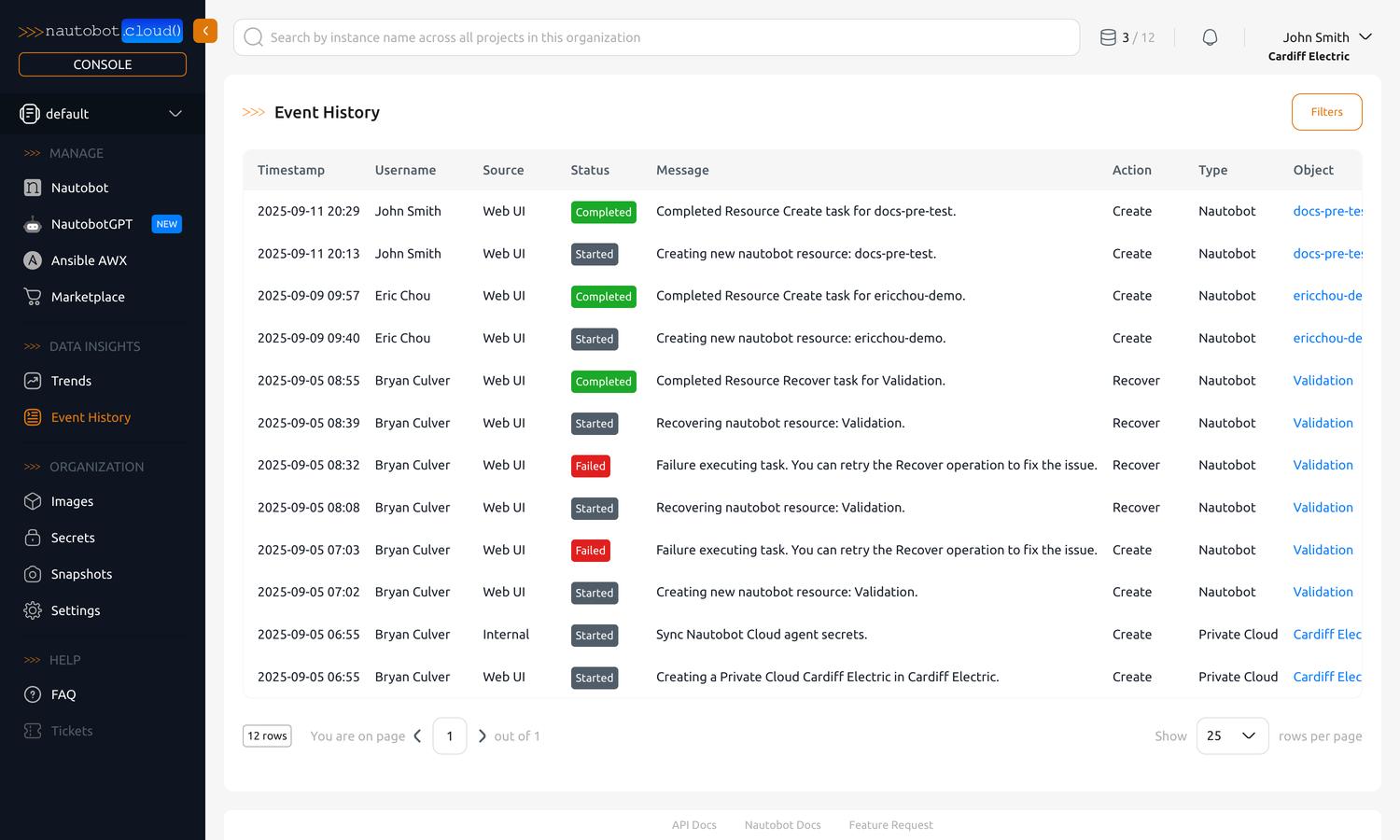

Event History

The Event History tab provides a log of events and actions related to all your Nautobot Instances. This includes instance creation, updates, restarts, and other significant actions. This log shows you when each event occurred, the type of event, and which instance it pertains to, the initiator, the interface used (e.g. API, Web UI), and the status of the event (Started, Completed, or Failed).

Filters (top right) can be applied to narrow down the events shown based on criteria such as event type, instance name, initiator, and date range.

Trends

While the Event History tab tracks events related to your instances, the Trends tab provides provide a view inside your instances, showing performance metrics, device statistics, regional breakdowns, and more.

There are eight dashboards available to choose from, each available from the "Dashboard" dropdown menu at the top of the page.

Dashboards

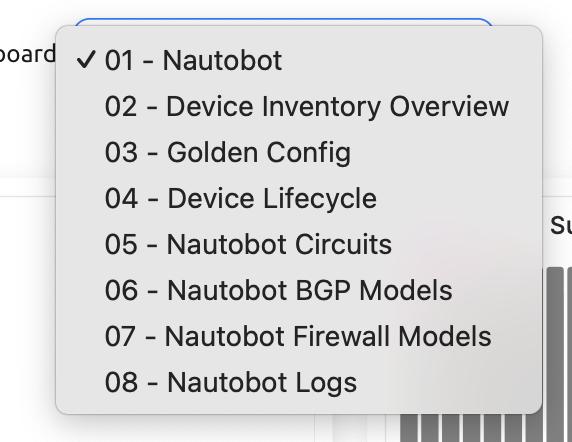

The dropdown input labeled "Dashboard" at the top of the Trends page allows you to select from eight dashboards, each providing different insights into your Nautobot Instances.

Dashboard Name	Description

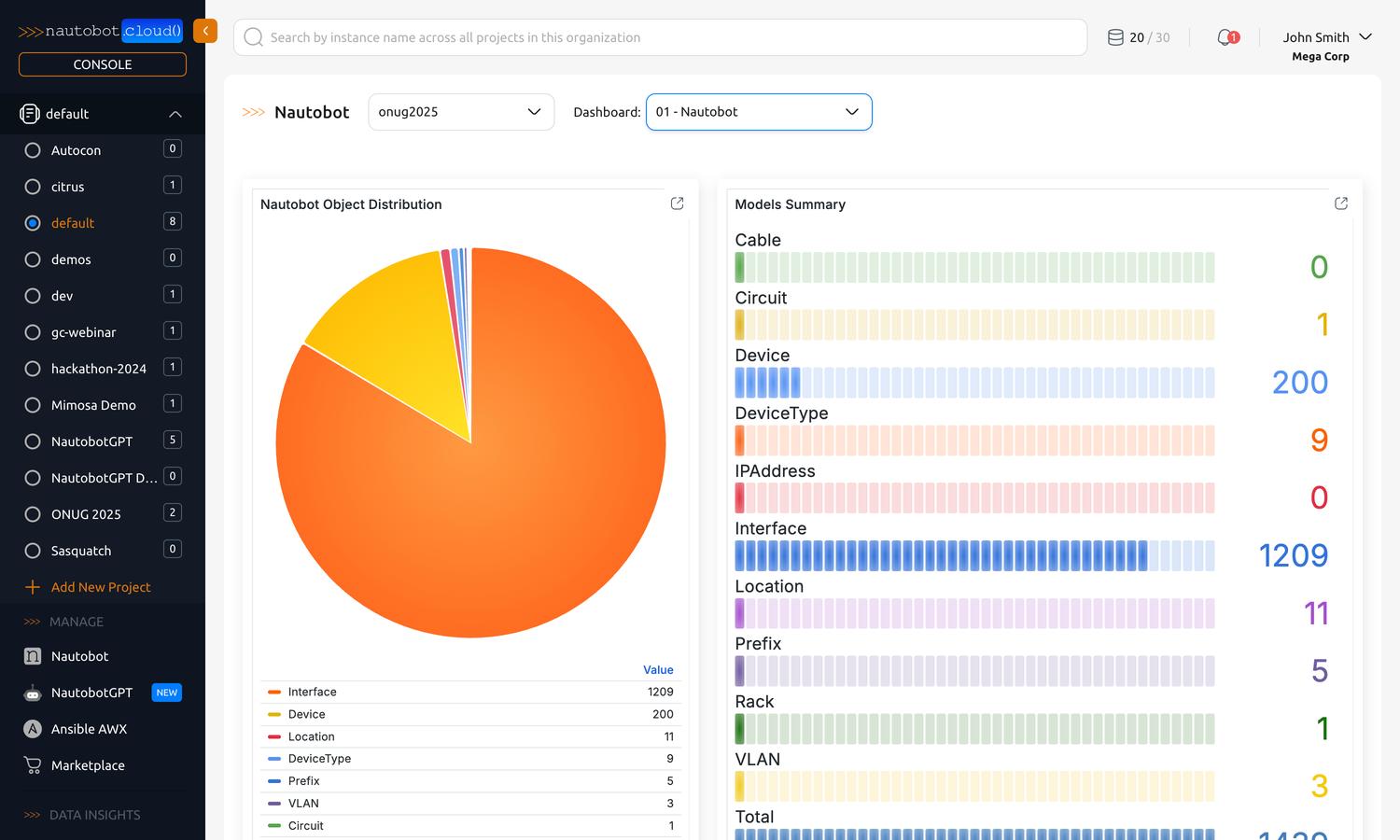

1. Nautobot (Instance overview)	High-level overview of your Nautobot Instances, breaking down the distribution of objects by type
2. Device Inventory Overview	Overview of devices broken down by location, status, and manufacturer
3. Golden Config	Status of configuration compliance for devices
4. Device Lifecycle	Tracking of devices at the end of their lifecycle
5. Nautobot Circuits	Status of circuits in Nautobot broken down by provider
6. Nautobot BGP Modules	Tracking of Border Gateway Protocol pairings and statistics
7. Nautobot Firewall Modules	Tracking of firewall rules and statistics
8. Nautobot Logs	Log streams from Nautobot instances and Jobs
